1.5 Insert ICs and the USB-module

The pins of the ICs have to be bend before you can put them into

their sockets. Use a hard base (e.g. your working desk) and

bend the row of pins slightly, that they get an angle of 90°.

Now insert the ICs and take care about direction of the components

and not to bend any pins while inserting the components into the

sockets.

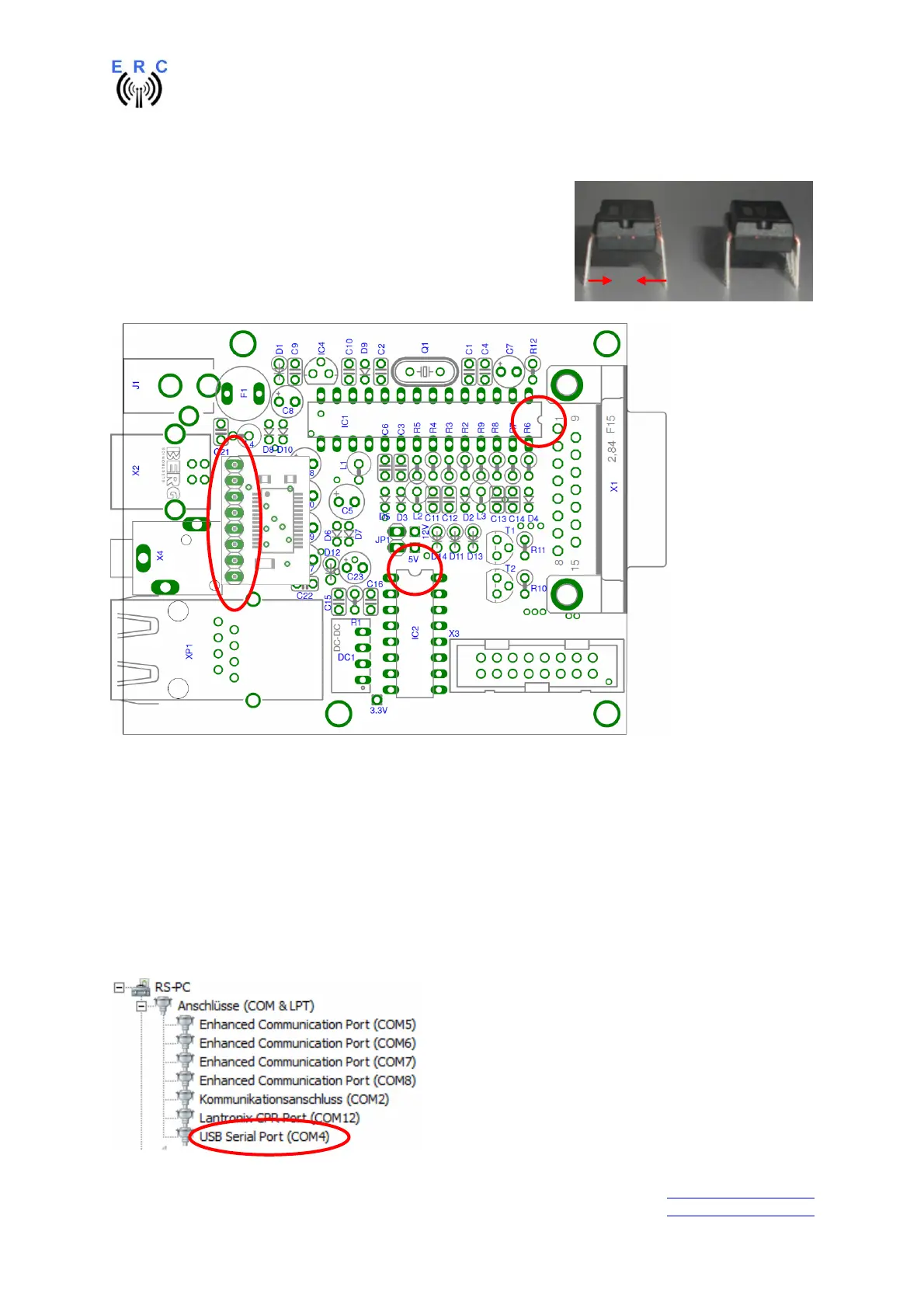

Also insert the USB-module on the socket of IC3 as shown.

1.6 Establishing the USB-connection

Plug the USB-B-connector to the ERC-M and the USB-A-connector to a free USB-connector on your

PC.

Depending on your operating-system, you will be asked to install an USB-driver. This driver is

available on the CD delivered with your kit.

After successful installation of the driver, a new COM-Port (COMn) is available. You can identify the

COM-port-number by inspecting the hardware-settings of your PC. In case you have a conflict with

another COM-port (e.g. virtual COM-port), change the COM-port-number in the properties.
