EASY-ROTOR-CONTROL M V2.2 Instructions

___________________________________________________________________________

Tannenstr. 16 Page 41 of 44 email : erc@schmidt-alba.de

86836 Untermeitingen / Germany

This document is for the user only. Any publishing (printed or in electronic form) is not allowed.

Appendix

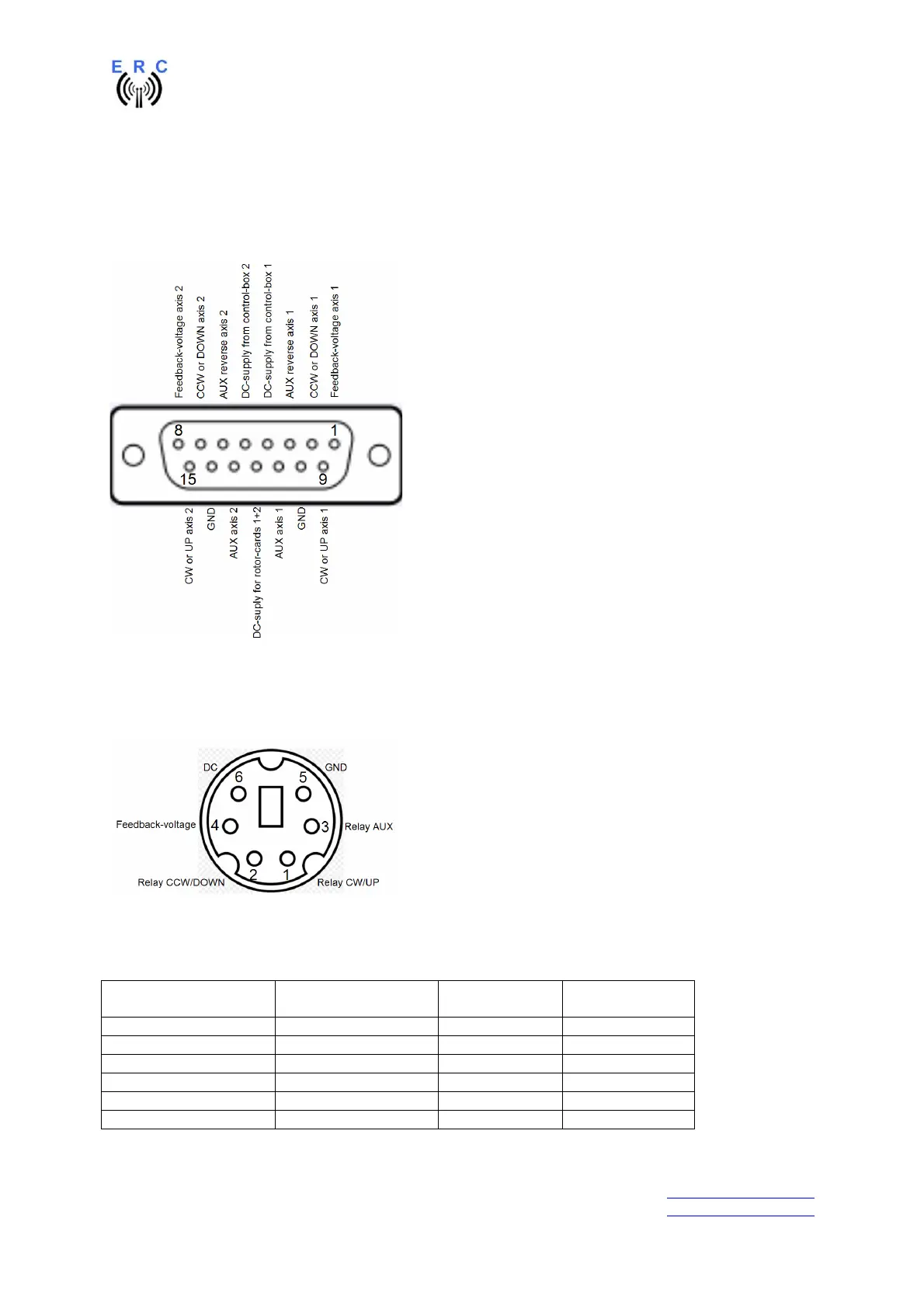

Appendix1: Pin-out of D-SUB15 ERC-M

Connector seen from outside to the female connector on ERC-M or on the back of the desktop-

housing.

Appendix2: Pin-out of mini-DIN rotor-card

Connector seen from outside to the female connector on the rotor-card.

Appendix3: Connection of rotor-card to ERC-M

Mini-DIN rotor-card Signal D-SUB ERC-M

axis 1

D-SUB ERC-M

axis 2

1 CW/UP 9 15

2 CCW/DOWN 2 7

3 AUX 11 13

4 Feedback-voltage 1 8

5 GND 10 14

6 DC-supply 12 12
