- 6 -

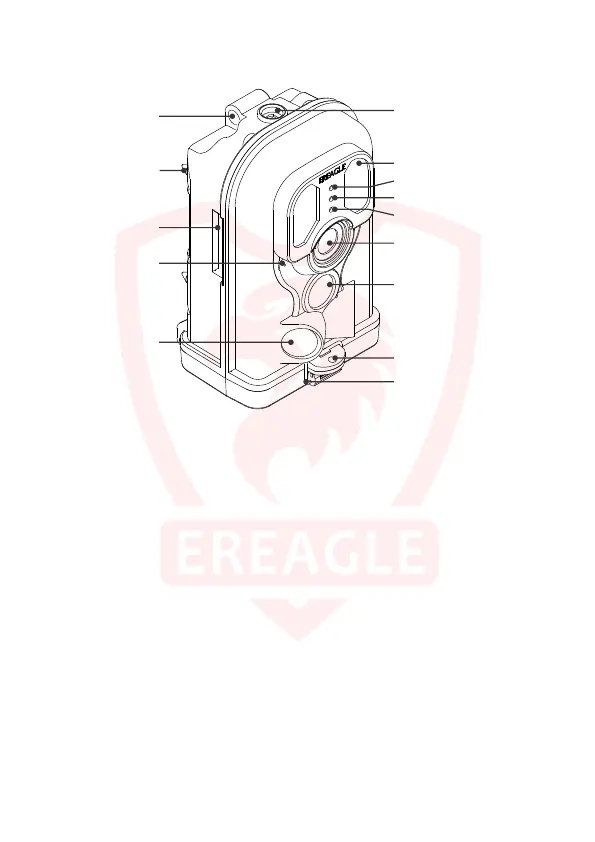

1.3. Graphic Illustration
1
．Lens
It is used for collecting the video and
image information of the detect target.
2
．Main PIR
It is used for inducting the moving objects
of the heat resource, then trigger and take
photos and video.
3
．Side PIR
Induce the border of heat resource.
4
．Microphone
Used for collecting the sound information.
5
．Laser Pointer
For position adjusting during the camera
installation.
6
．IR LED
Provide light for night shooting.
7
．Status LED
The hints of camera state and trigger.
8
．Light Sensor
Induction of light intensity, trigger the
camera into the day and night mode.
9
．Lock Hole
Lock the bottom cover, waterproof,
dust-proof. Prevent malicious removal.
10．Safe-Guard Lock Hole
Anti-theft device
11
．Antiskid
12
．Strap Hole
13
．Antenna Port
St rap H ole
IR LED
Le ns
Side PIR
Lock Hole
S afe -Gu a rd
L oc k Hole
A nt iskid
Main PIR
Ante nna Port
Sta tu s LED
La se r Poin te r
Nig h t Se ns or
Mic rophone
Sealin g Buck le
