3. Installation
This section describes the required installation steps in order to establish operational
readiness. The steps described are also required at initial installation after delivery of
the device.
3.1 Installation steps
1) Mount the locking castors.
2) Fix paper roll holder and fix crepe paper roll.
3) Mount arm support on the left hand side.
4) Fix the right running board on the support intended for via screws supplied.
5 )Connect blood pressure cuff according to 4.3.2 at the measurement head.
6) Connect mains cable according to 4.3.1 at the power inlet.

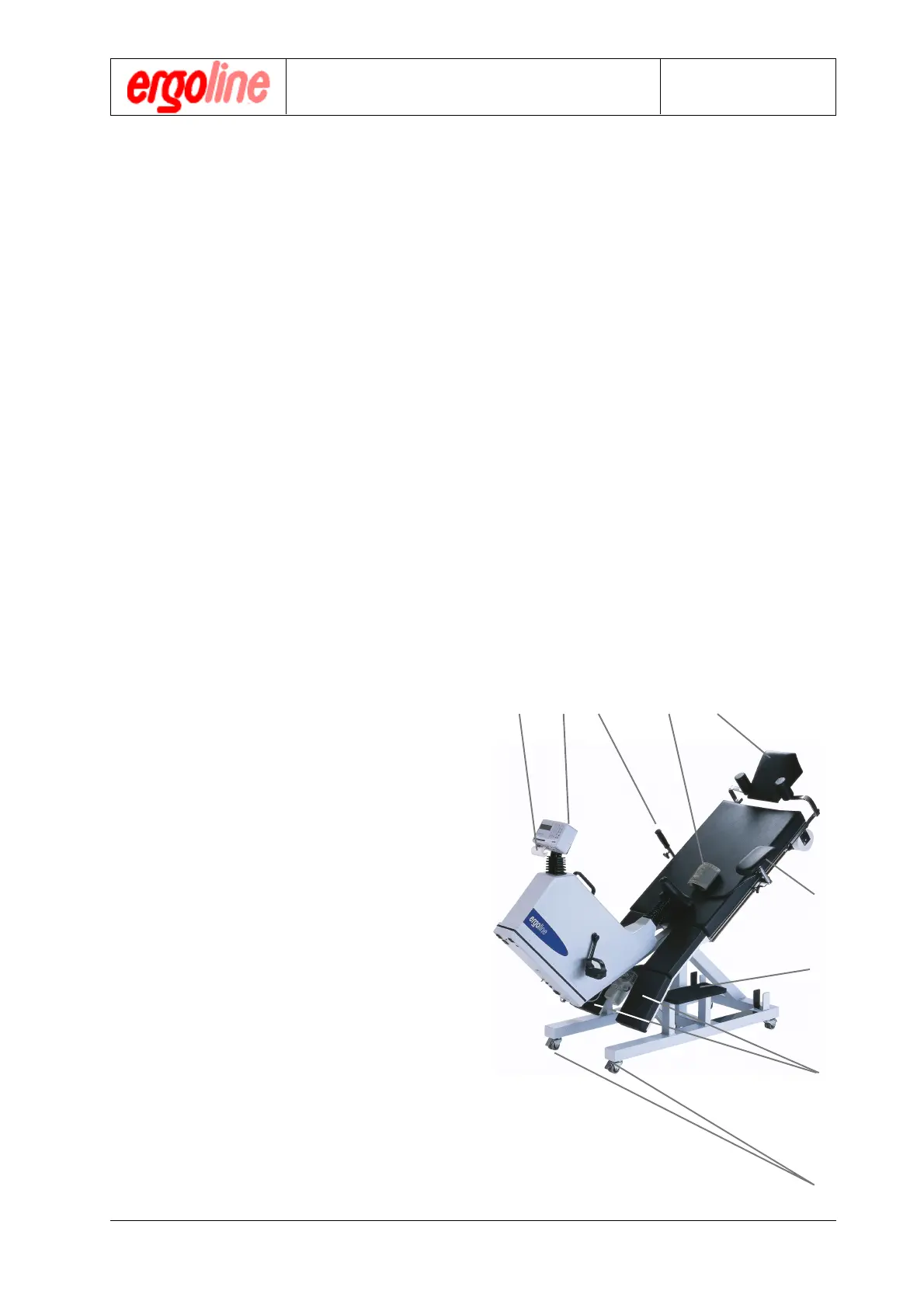

3.2 Scope of Delivery
The standard scope of delivery consists of :
1 blood pressure cuff
2 locking castors.
3 thermal paper for printer (2 rolls)
4 Measurement head with rear cover
5 arm support, left
6 running board, left + right (not visible)
7 head support
not in picture:
paper roll holder
crepe paper roll.
mains cable, 5 m
Final test protocol
Operation Manual
optional :
8 Handle, right with mounting right
9 legrest (left + right)
connecting cable to ECG (not in picture)
Installation
348 1 7
2
5
6
9
