4.3.3 Signal Connections
1
23

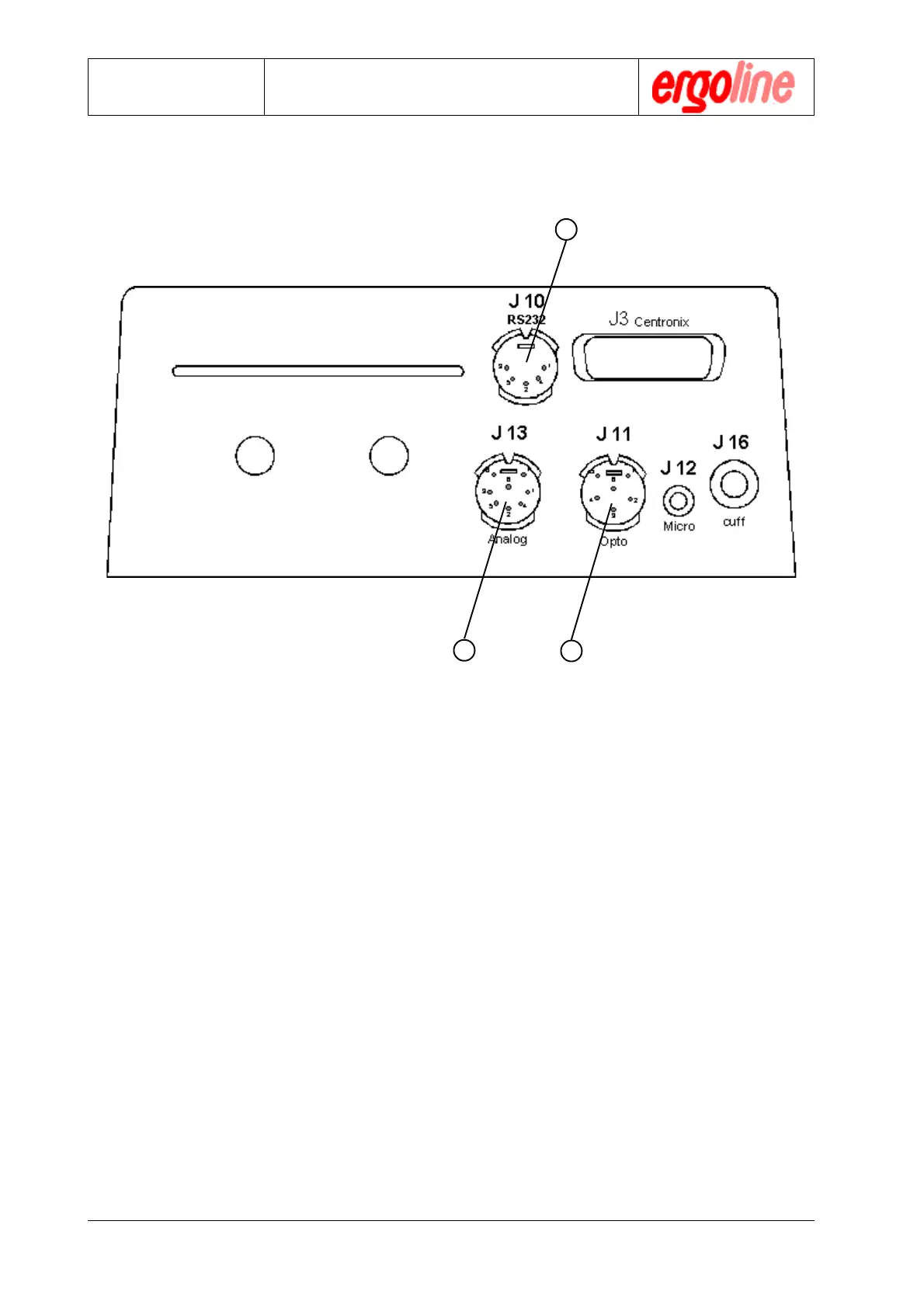

1) Digital RS-232 interface connector for PC or ECG
2) Analog interface for analog control and analog data transfer to ECG.
3) Fiber-optic connector for ear/finger clip or HR input from and ECG
!
The interface pin configuration as well as related technical data are in the
appendix of this Operation Manual.
