Radio Configurations, RBS 2106 and RBS 2206
TX1
TX
TX
P007394B
HC2
Hybrid
combiner
TX2
TX1+TX2
HC1
RX
RX
RX
RX
RX3
RX4
TX
TX
RX1
RX
RX
RX
RX
RX2
TX1
TX
TX
HC2
Hybrid
combiner
RX2
TX2
TX1+TX2
HC1
RX
RX
RX
RX
RX1
RX4
RX3
RX
RX
RX
RX
dTRU with no hybrid
combiner in use
dTRU with hybrid
combiner in use

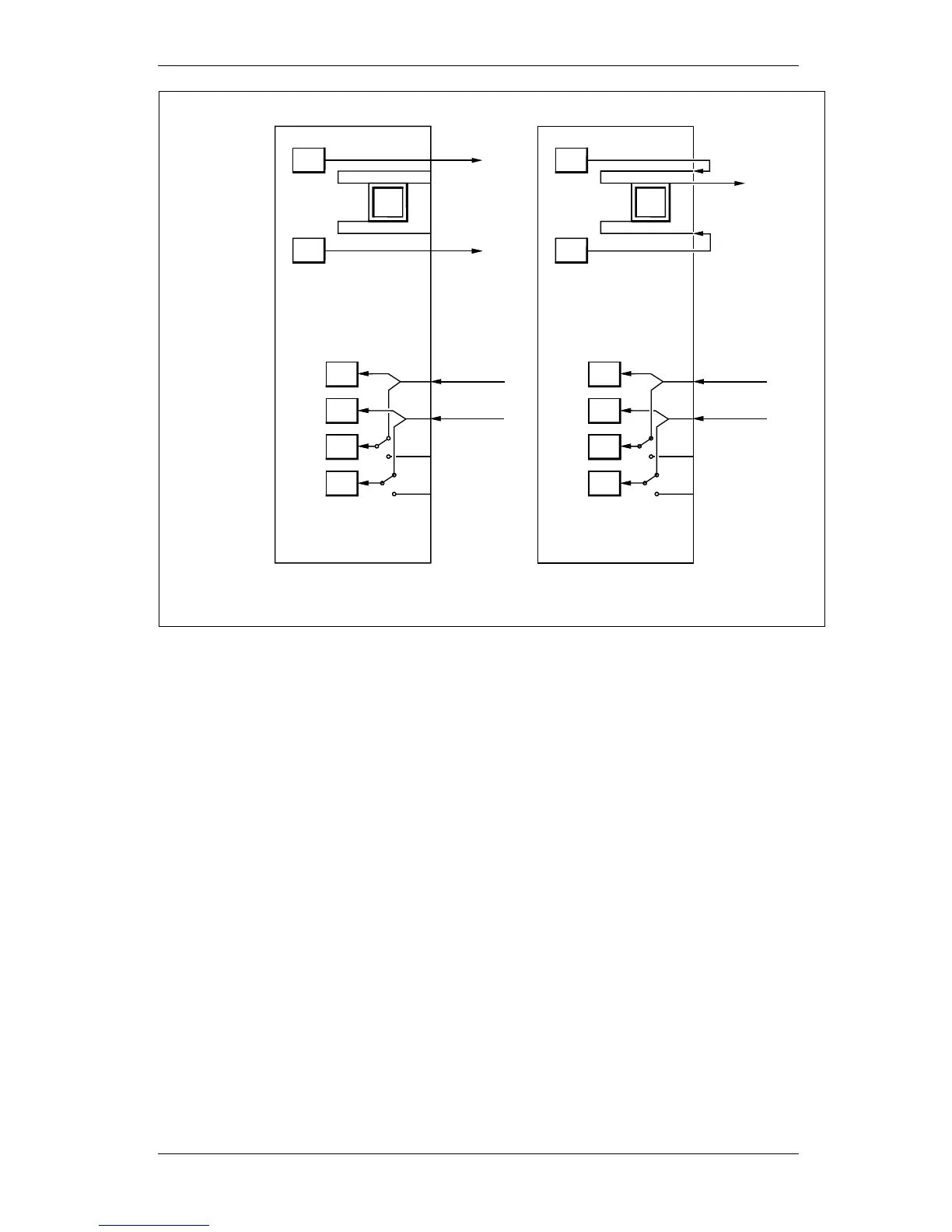

Figure 6 dTRU with and without hybrid combiner in use
