Radio Configurations, RBS 2106 and RBS 2206
4.5.2 CDU-F Configurations
Basic Configuration F9de_2.4 and F18d_2.4
TX1
RX1
RX2
TX2
TX1
dTRU
TX1
TX2
TX1
TX2
RX1
dTRU
CDU-F
DPX
FCOMB
FCOMB
RX2
TX2
CXU
RX1
RX2
LNA
LNA
TX/
RXA
Ant.
RXB
P007376A
X
X

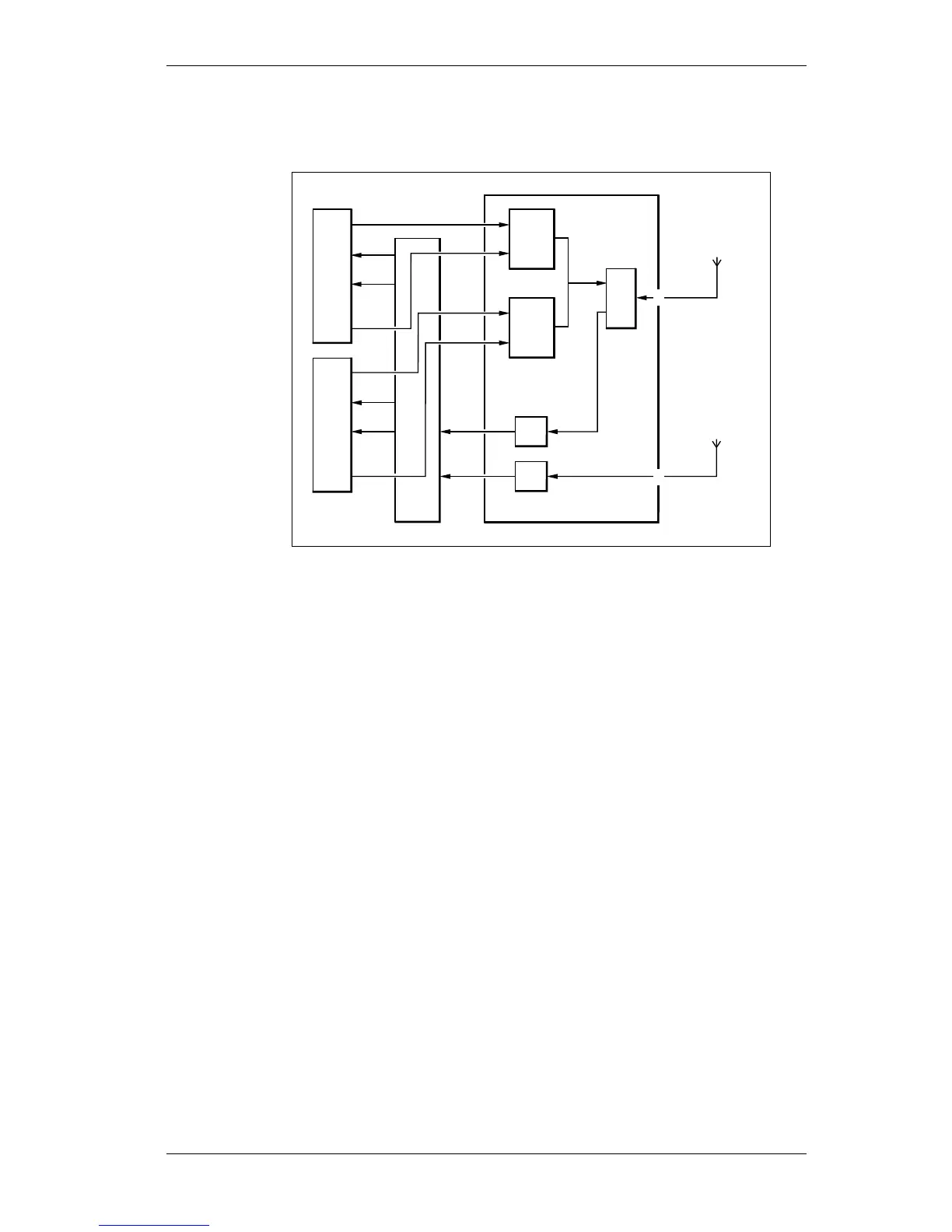

Figure 7 F9de_2.4 and F18d_2.4
Characteristics
Number of CDUs 1
Frequency band E-GSM (F9de_2.4)
GSM 1800 (F18d_2.4)
Max. number of TRXs 4
Number of feeders 2
Number of antennas 2
Antenna configuration TX/RX + RX
EN/LZT 720 0008 P2A
2001-11-28
39 (485)
© Ericsson Radio Systems AB
— All Rights Reserved —
Preliminary
