Radio Configurations, RBS 2106 and RBS 2206
Characteristics
Number of CDUs 3
Frequency band E-GSM (F9det_2.12)
GSM 1800 (F18dt_2.12)
Max. number of TRXs 12
Number of feeders 2
Number of antennas 2
Antenna configuration TX/RX + TX/RX
TMA configuration ddTMA + ddTMA
4.5.3 CDU-G Configurations
Basic Configuration G8d_2.2, G9de_2.2, G18d_2.2 and G19d_2.2
TX1
RX1
RX2
TX2
dTRU
TX1
RX1
TX2
CDU-G
DPX
CXU
LNA
TX/
RXA
Ant.
P007384B
DPX
TX/
RXB
RX2
LNA
X
X
ASU
Ant S1(3,5)
Ant S2(4,6)

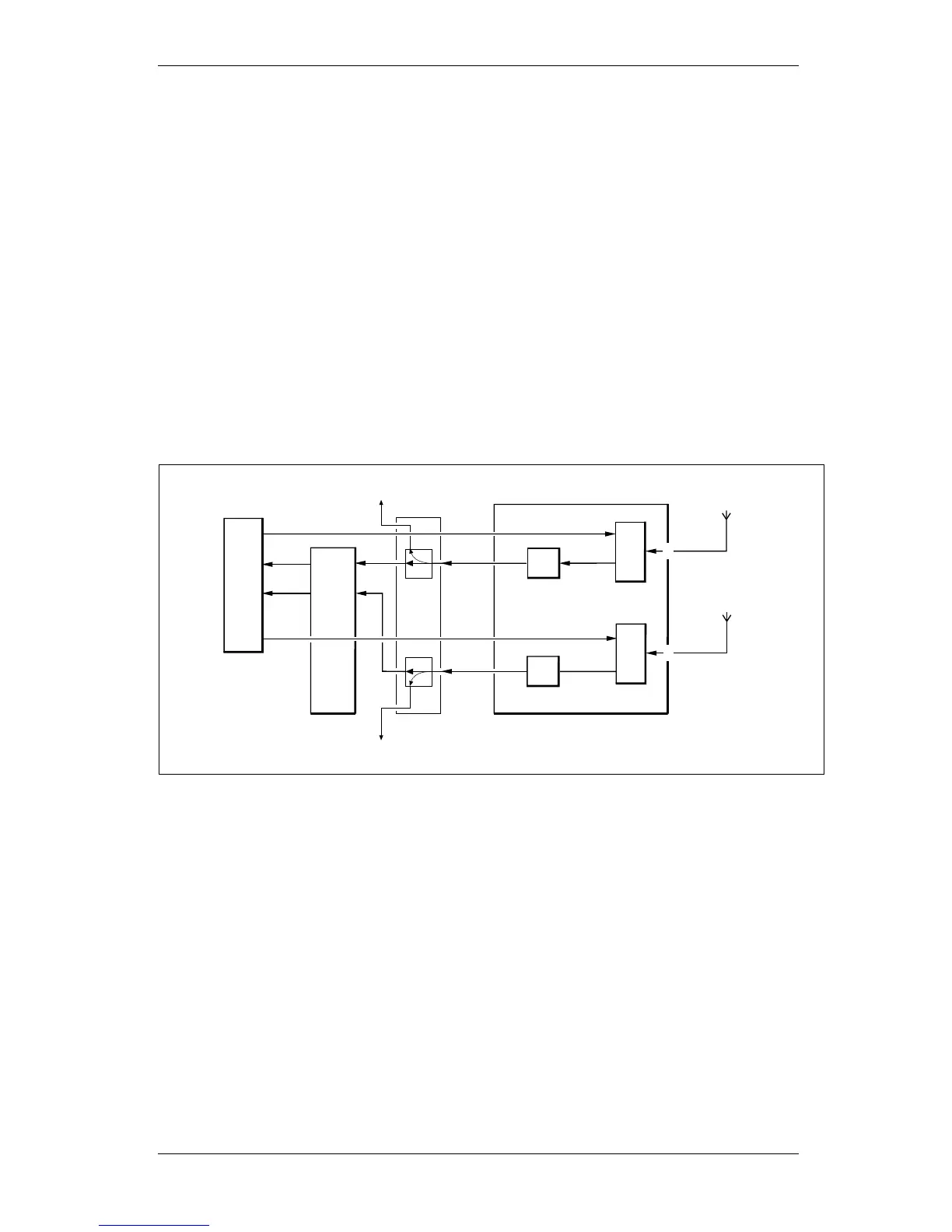

Figure 15 Gd8_2.2, G9de_2.2, G18d_2.2 and G19d_2.2
Characteristics
Number of CDUs 1
Frequency band GSM 800 (G8d_2.2)
E-GSM (G9de_2.2)
GSM 1800 (G18d_2.2)
GSM 1900 (G19d_2.2)
Max. number of TRXs 2
Number of feeders 2
Number of antennas 2
Antenna configuration TX/RX + TX/RX
52 (485)
EN/LZT 720 0008 P2A
2001-11-28
© Ericsson Radio Systems AB
— All Rights Reserved —
Preliminary
