Radio Configurations, RBS 2106 and RBS 2206
Note: The ASU is optional equipment.
Basic Configuration G8dt_2.2, G9det_2.2, G18dt_2.2 and G19dt_2.2
TX1
RX1
RX2
TX2
dTRU
TX1
RX1
TX2
CDU-G
DPX
CXU
LNA
TX/
RXA
Ant.
P007385B
DPX
TX/
RXB
RX2
LNA
X
X
ASU
Ant S1(3,5)
Ant S2(4,6)
DPX LNA DPX
DPX LNA DPX
ddTMA

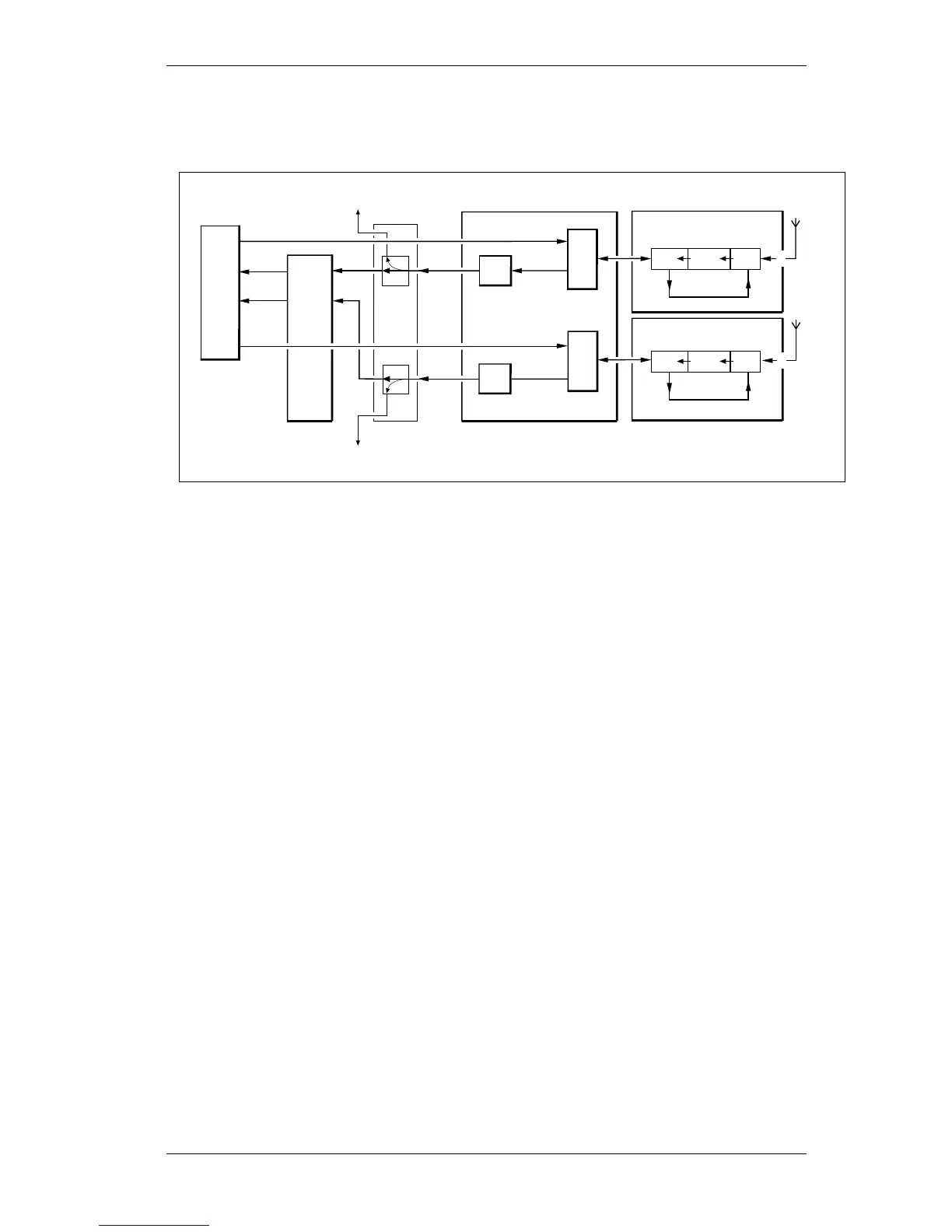

Figure 16 G8dt_2.2, G9det_2.2, G18dt_2.2 and G19dt_2.2
Characteristics
Number of CDUs 1
Frequency band GSM 800 (G8dt_2.2)
E-GSM (G9det_2.2)
GSM 1800 (G18dt_2.2)
GSM 1900 (G19dt_2.2)
Max. number of TRXs 2
Number of feeders 2
Number of antennas 2
Antenna configuration TX/RX + TX/RX
Note: The ASU is optional equipment.
EN/LZT 720 0008 P2A
2001-11-28
53 (485)
© Ericsson Radio Systems AB
— All Rights Reserved —
Preliminary
