Radio Configurations, RBS 2106 and RBS 2206
Basic Configuration G8dh_2.4, G9deh_2.4, G18dh_2.4 and G19dh_2.4
P007386B
Ant S1(3,5)
Ant S2(4,6)
TX1+TX2
RX1
RX2
dTRU
TX1
RX1
CDU-G
DPX
CXU
LNA
DPX
RX2
LNA
TX1+
TX2
RX1
RX2
dTRU
TX2
TX/
RXA
Ant.
X
TX/
RXB
X
ASU

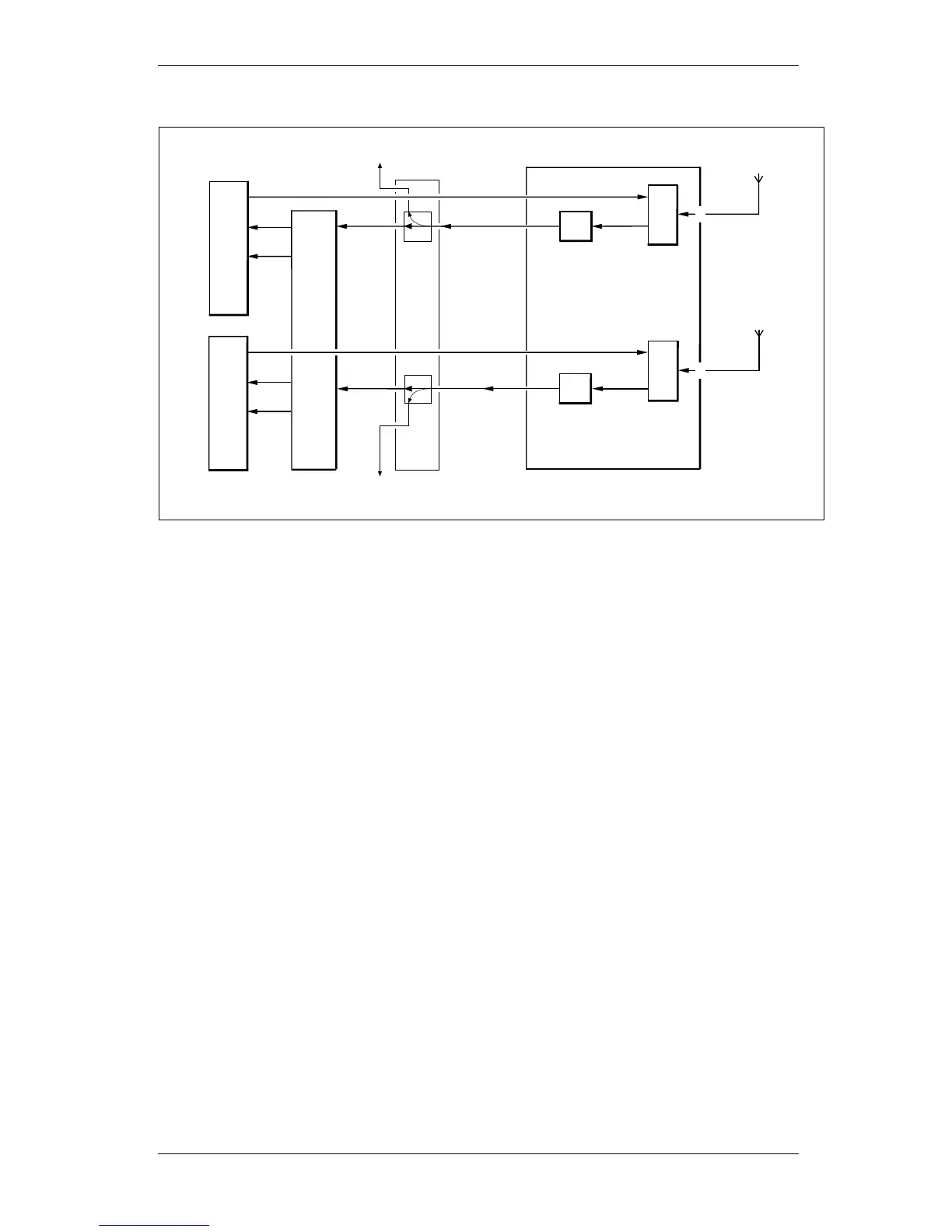

Figure 17 G8dh_2.4, G9deh_2.4, G18dh_2.4 and G19dh_2.4
Characteristics
Number of CDUs 1
Frequency band GSM 800 (G8dh_2.4)
E-GSM (G9deh_2.4)
GSM 1800 (G18dh_2.4)
GSM 1900 (G19dh_2.4)
Max. number of TRXs 4
Number of feeders 2
Number of antennas 2
Antenna configuration TX/RX + TX/RX
Note: The ASU is optional equipment.
54 (485)
EN/LZT 720 0008 P2A
2001-11-28
© Ericsson Radio Systems AB
— All Rights Reserved —
Preliminary
