Optional Two-Stage Filter Element Replacement
The Two-Stage Air Filter has two Filter Elements. When the Filter Elements become dirty the Power Supply
willcontinuetooperatebutcutqualitymaybecomeunacceptable.RefertoSection6,PartsList,forreplace-
ment filter element catalog number.
1. Shut OFF primary input power.
2. Shut OFF air supply and bleed down system.
!
WARNING
Always turn OFF the air supply and bleed the system before disassembling the Filter Assembly as injury could result.
3. Loosen the two bolts on the top of the Filter Assembly enough to allow the Filter Elements to move
freely.
4. Note the location and orientation of the old Filter Elements.
5. Slide out the old Filter Elements.
First & Second
Stage
Cartridges
(as marked)

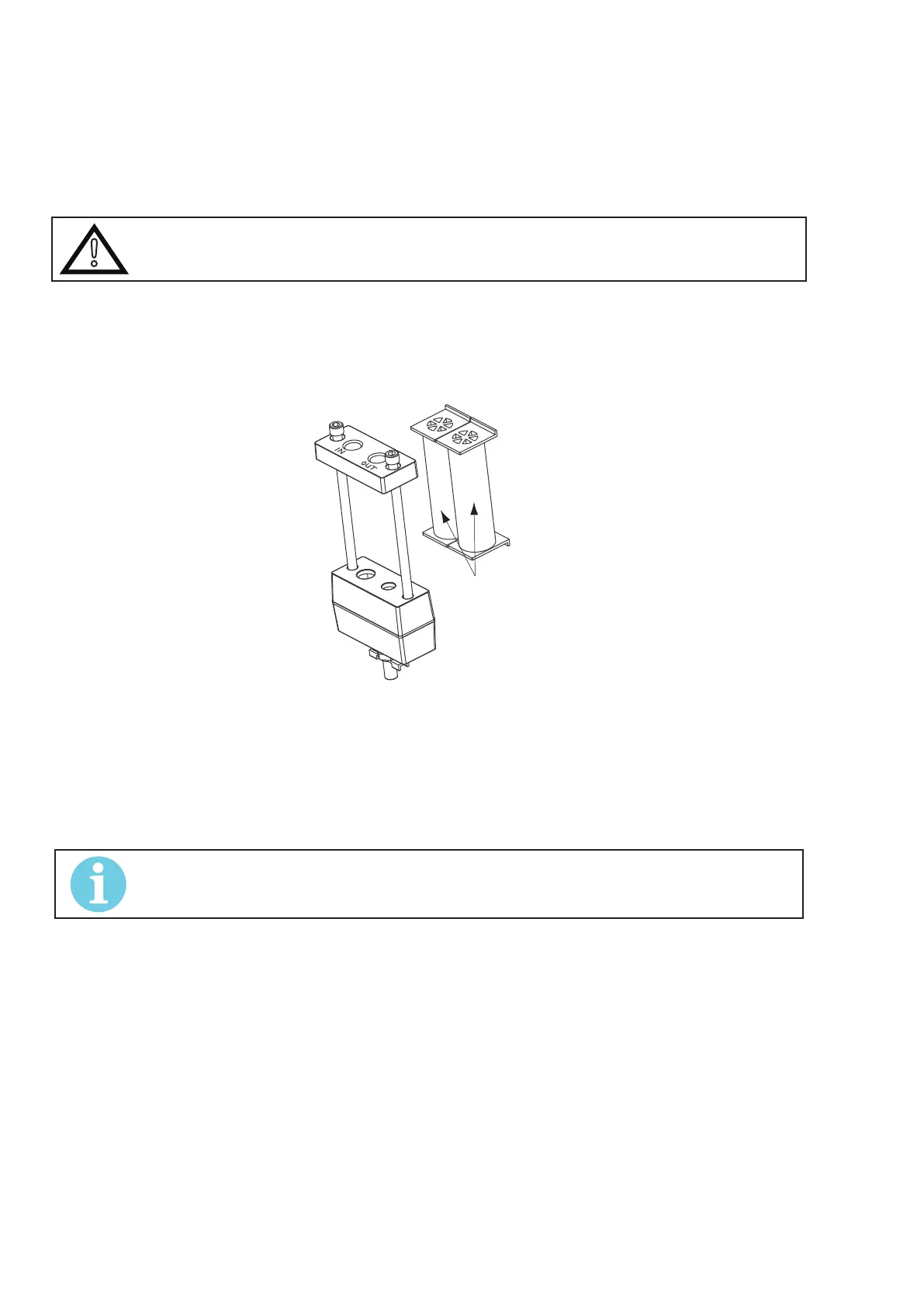

Art # A-02942
Optional Two-Stage Filter Replacement
6. SlidethereplacementFilterElementsintotheFilterAssembly,withthesameorientationasnotedin
Step 4 above.
7. Hand tighten the two bolts evenly, then torque each bolt to 20 - 30 in-lbs (2.3 - 3.4 Nm). Improper
torque may damage the gasket.
8. Slowly apply air pressure to the assembly, checking for leaks.
NOTE!
A small amount of air leakage from the bottom tting is normal.
This completes the parts replacement procedures.
