ESAB Aristo Robust Feed U6 - Attachment of Wheel Kit; Attachment of the Wheels to the Wheel Kit Frame

5 OPERATION
0446 253 101
- 25 -
© ESAB AB 2020

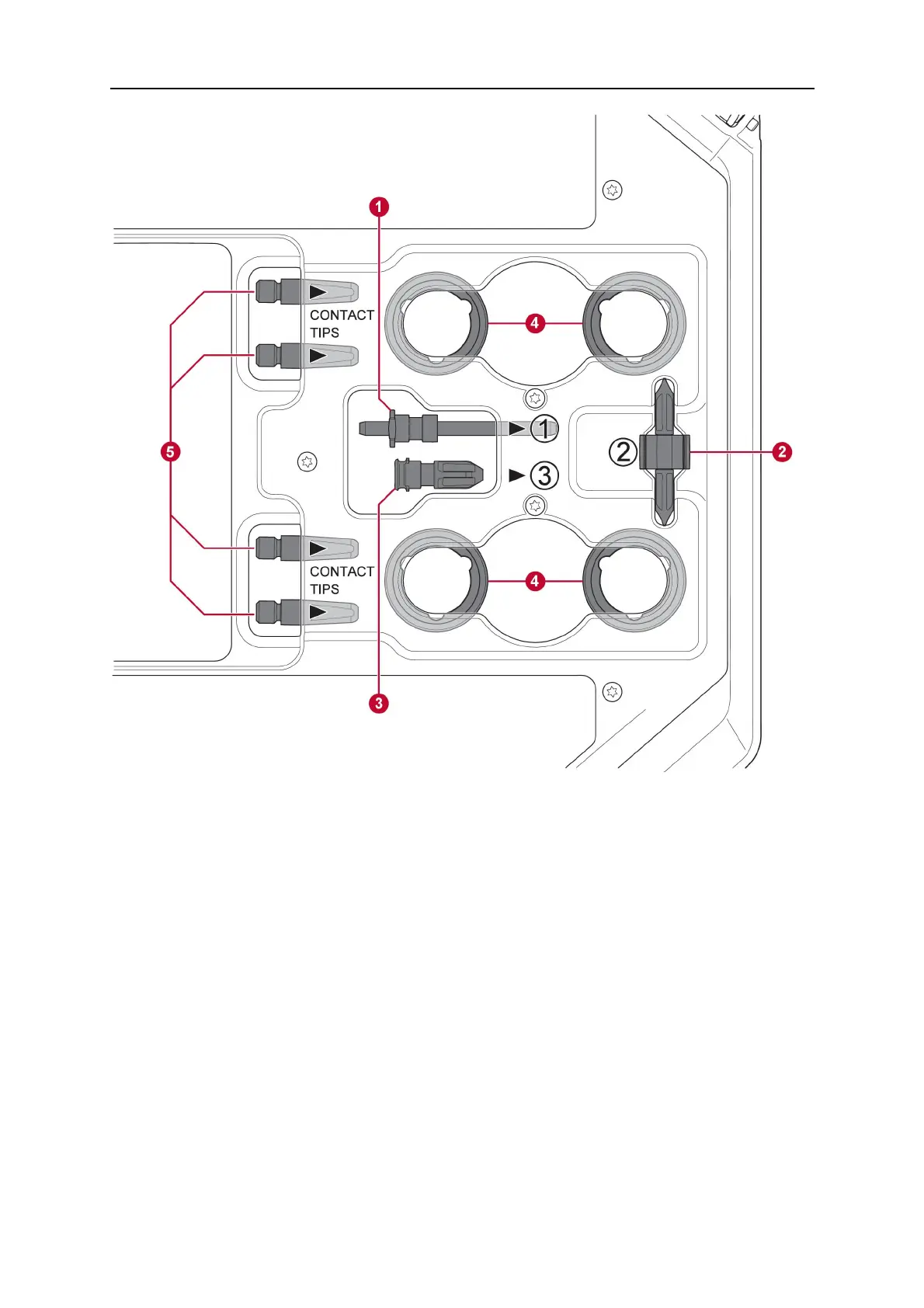

1. Inlet wire guide 4. Feed rollers (×4 pcs)
2. Middle wire guide 5. Contact tips for the welding torch (×4 pcs)
3. Outlet wire guide
5.14 Attachment of wheel kit
5.14.1 Attachment of the wheels to the wheel kit frame
Before the wire feed unit is attached to the wheel kit, fasten the wheels to the frame by
means of the M12 screws, washers and nuts, using a tightening torque of 40±4Nm
(354±35.4in.lb). The fixed wheels at the rear end should be positioned parallel to the frame.
