6 CONTROL PANEL
0446 253 101
- 29 -
© ESAB AB 2020
6 CONTROL PANEL
6.1 U6

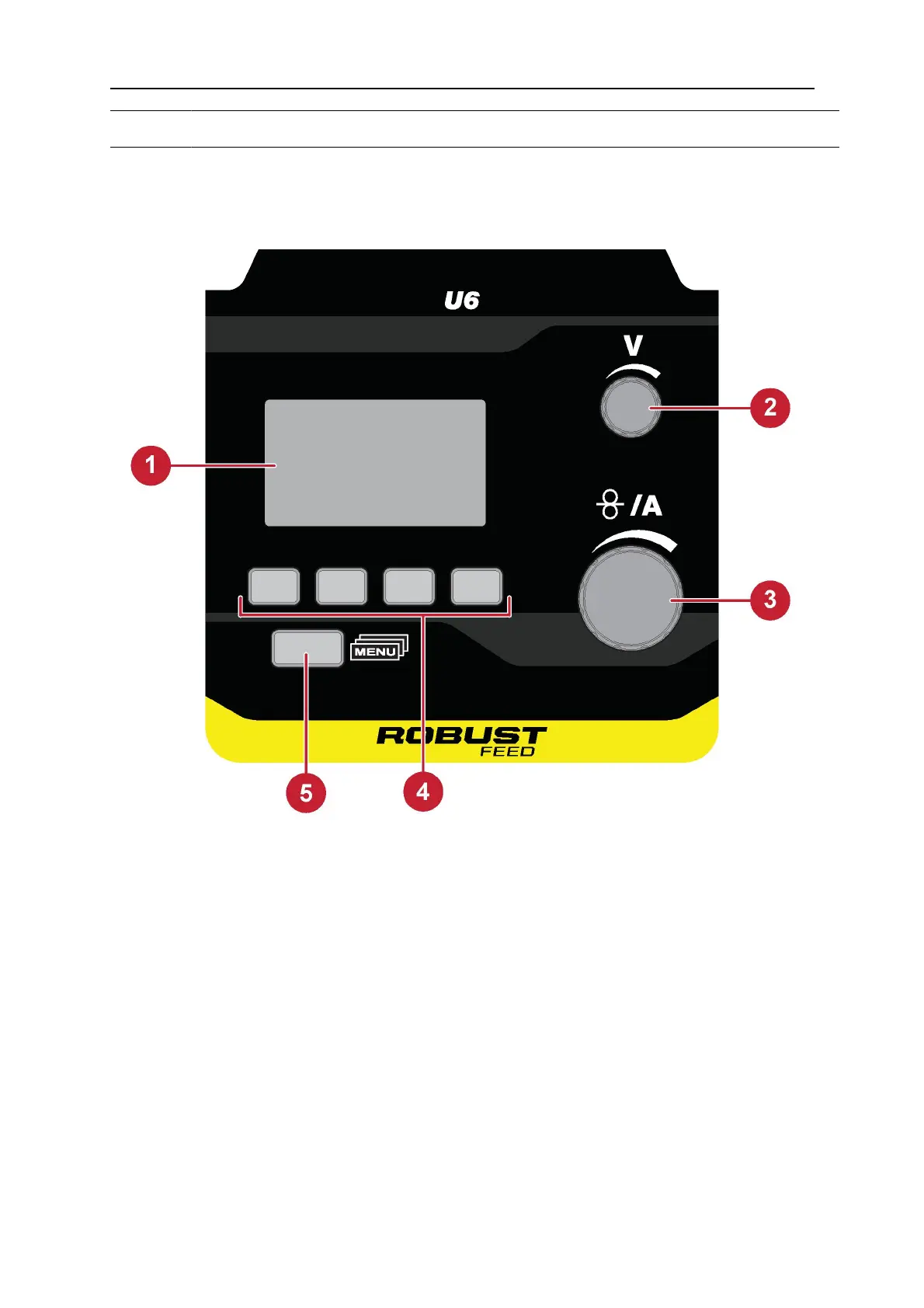

6.1.1 External control panel
1. Display 4. Soft pushbuttons (function keys), see
further explanation in the U6control
panel instruction manual
2. Knob for setting the voltage 5. Menu button
3. Knob for setting the wire feed speed
and current
