6 CONTROL PANEL
0446 253 101
- 31 -
© ESAB AB 2020
6.2 Pulse
6.2.1 External control panel

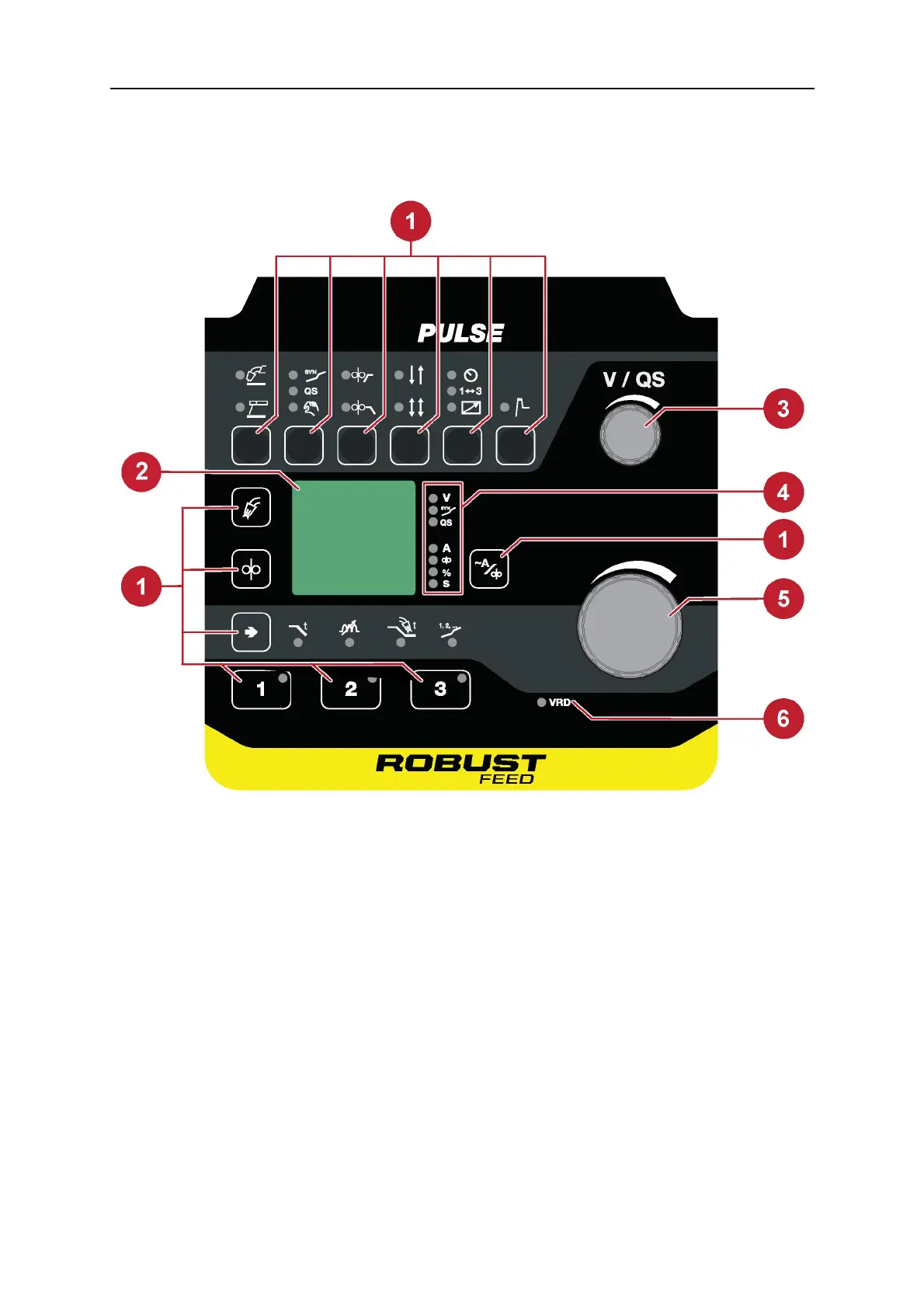

1. Function buttons, see further
explanation in the Pulsecontrol panel
instruction manual
4. Indication of which variables and units
are shown in the display
2. Display 5. Knob for setting the wire feed speed and
current
3. Knob for setting of voltage/QSet™ 6. Indication of activated VRD (Voltage
Reducing Device)
