5 OPERATION
0446 253 101
- 28 -
© ESAB AB 2020

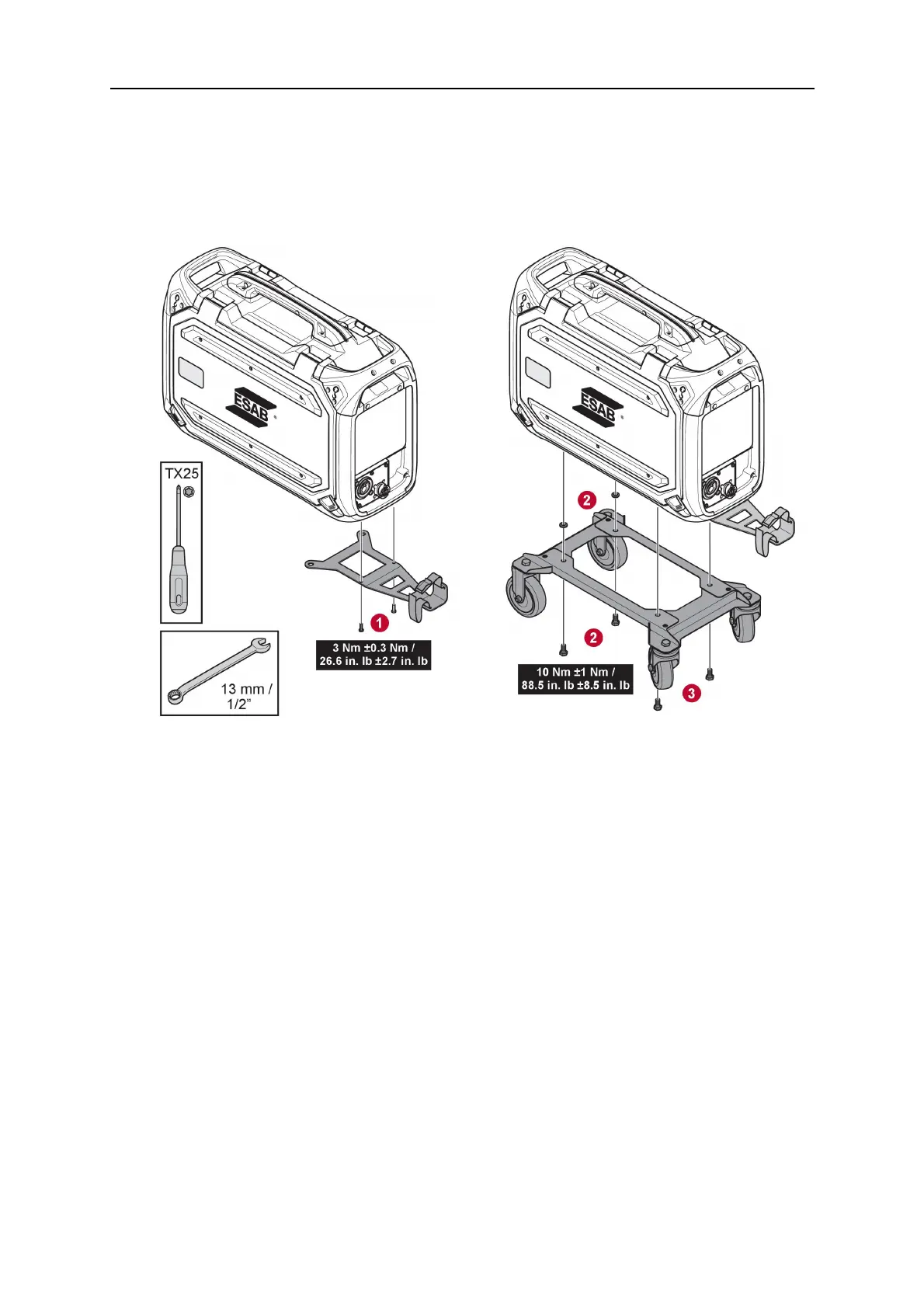

1. Attach the torch strain relief to the wire feed unit, using the two Torx5 screws.
2. Attach the wheel kit to the wire feeder, using the two screw joints near the rear end of
the wire feeder. Make sure the two distance washers are inserted between the wheel
kit and the wire feeder!
3. Fasten the wheel kit and the torch strain relief to the wire feeder, using the two screw
joints closer to the front end of the wire feeder.
