5 OPERATION
General safety regulations for handling the equipment can be found in the "SAFETY"
chapter of this manual and the "SAFETY" chapter of the manual for the power source.
Read it through before you start using the equipment!
5.1 Control pendant
See separate instruction manual for description of the features of the control panel.

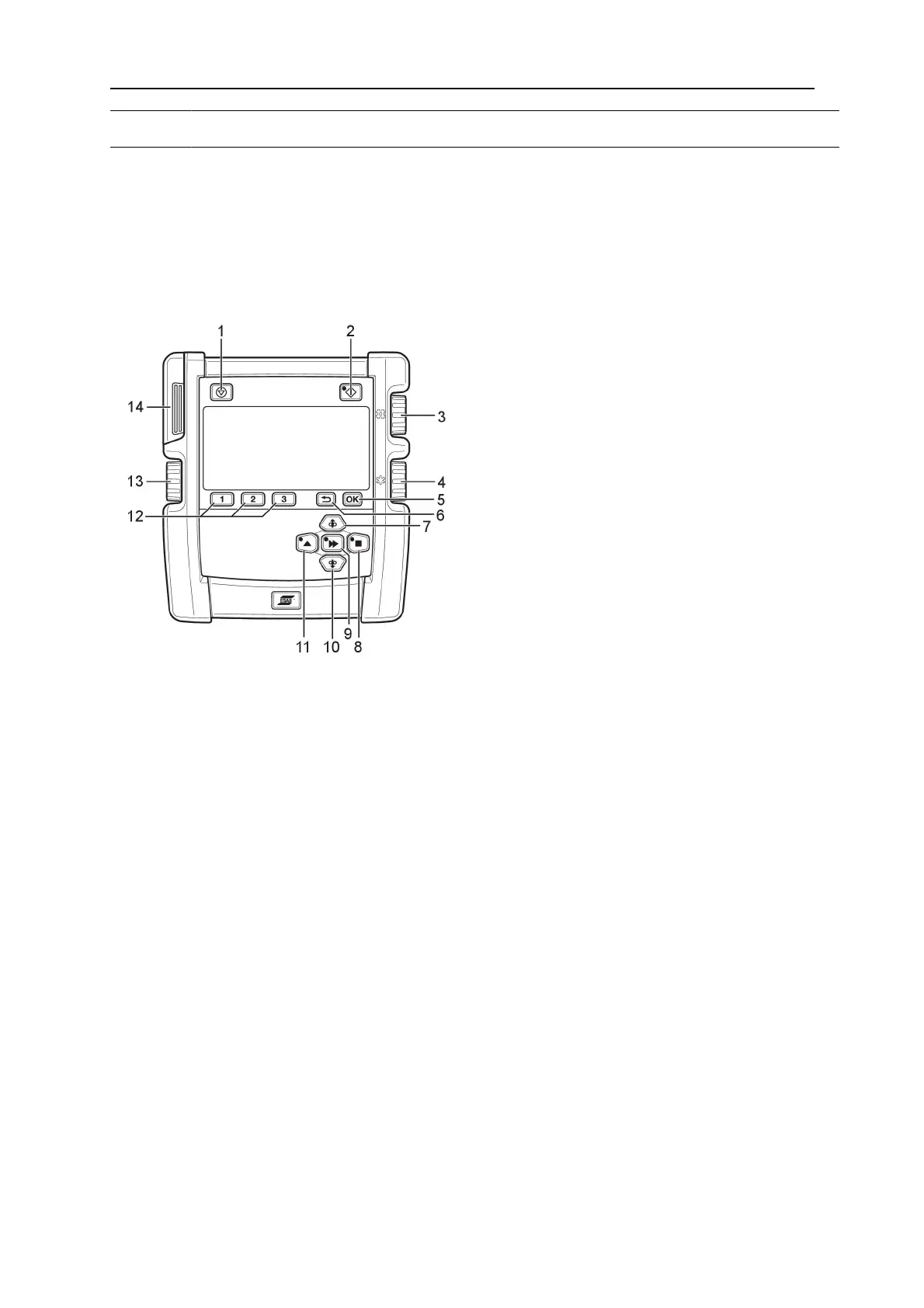

1. Welding stop 8. Manual travel motion direction
2. Welding start 9. Fast motion
3. Welding current / Wire feed
speed/balance*
10. Manual wire feed downwards
4. Arc voltage / Offset voltage* 11. Manual travel motion direction
5. OK / Setting menu 12. Memory 1, 2, 3 / Soft keys
6. Back 13. Travel speed / frequency*
7. Manual wire feed upwards 14. USB connection
*Only with Aristo®1000 in AC mode.
