5 OPERATION
0463 609 101
- 11 -
© ESAB AB 2020

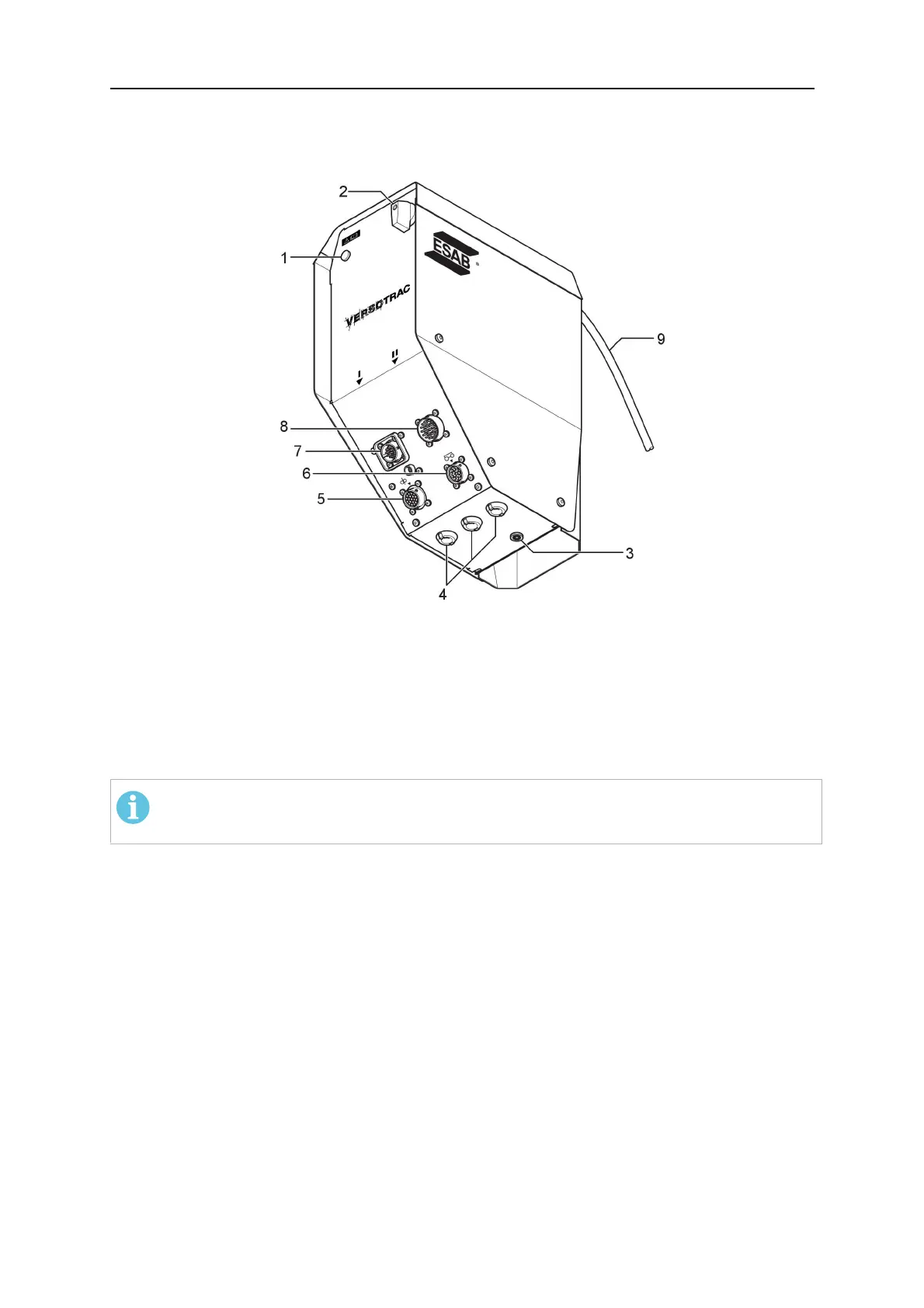

5.2 Connections
1. On/Off indicator 6. Connection tractor carriage
2. On/Off switch 7. Connection digital power source
3. Connection work piece voltage reference
brush
8. Connection anlogue power source
4. Accessory cable entries 9. Cable to control pendant
5. Connection welding head
NOTE!
Connect only digital power source or analogue power source at a time.
