ESAB EAC 10 - Connecting to Digital Power Source

5 OPERATION
0463 609 101
- 12 -
© ESAB AB 2020
5.2.1 Connecting to digital power source

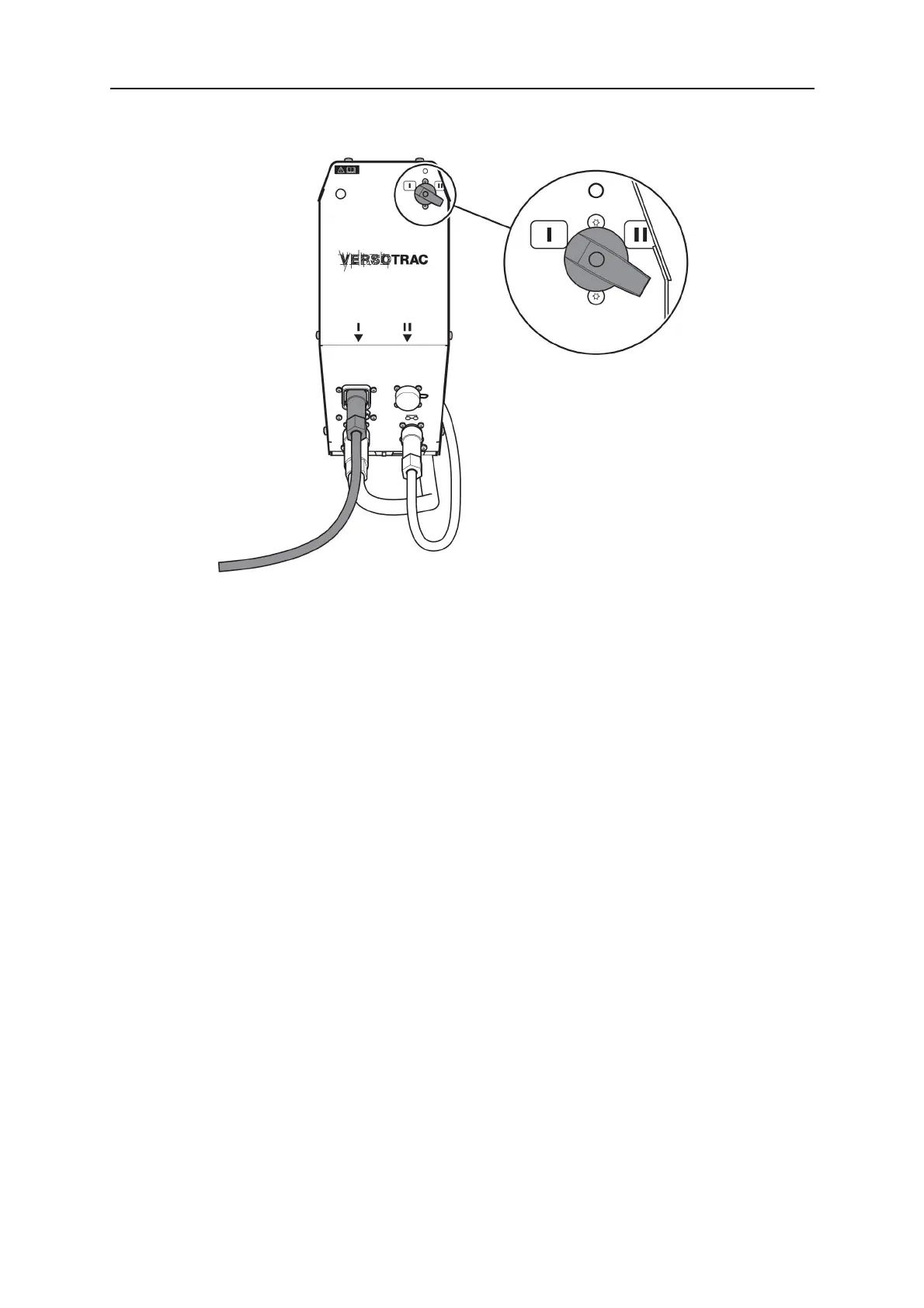

Connect the interconnection cable to connector marked with I.
Interconnection cable between CAN based ESAB power source and EAC10 are available as
accessories in different lengths.
ESAB CAN based power sources are LAFxxx1, TAFxxx1 and Aristo®1000.
For further information about connecting welding power source, see separate instruction
manual.
Always use the dust cover on the connections where no cable is connected.
