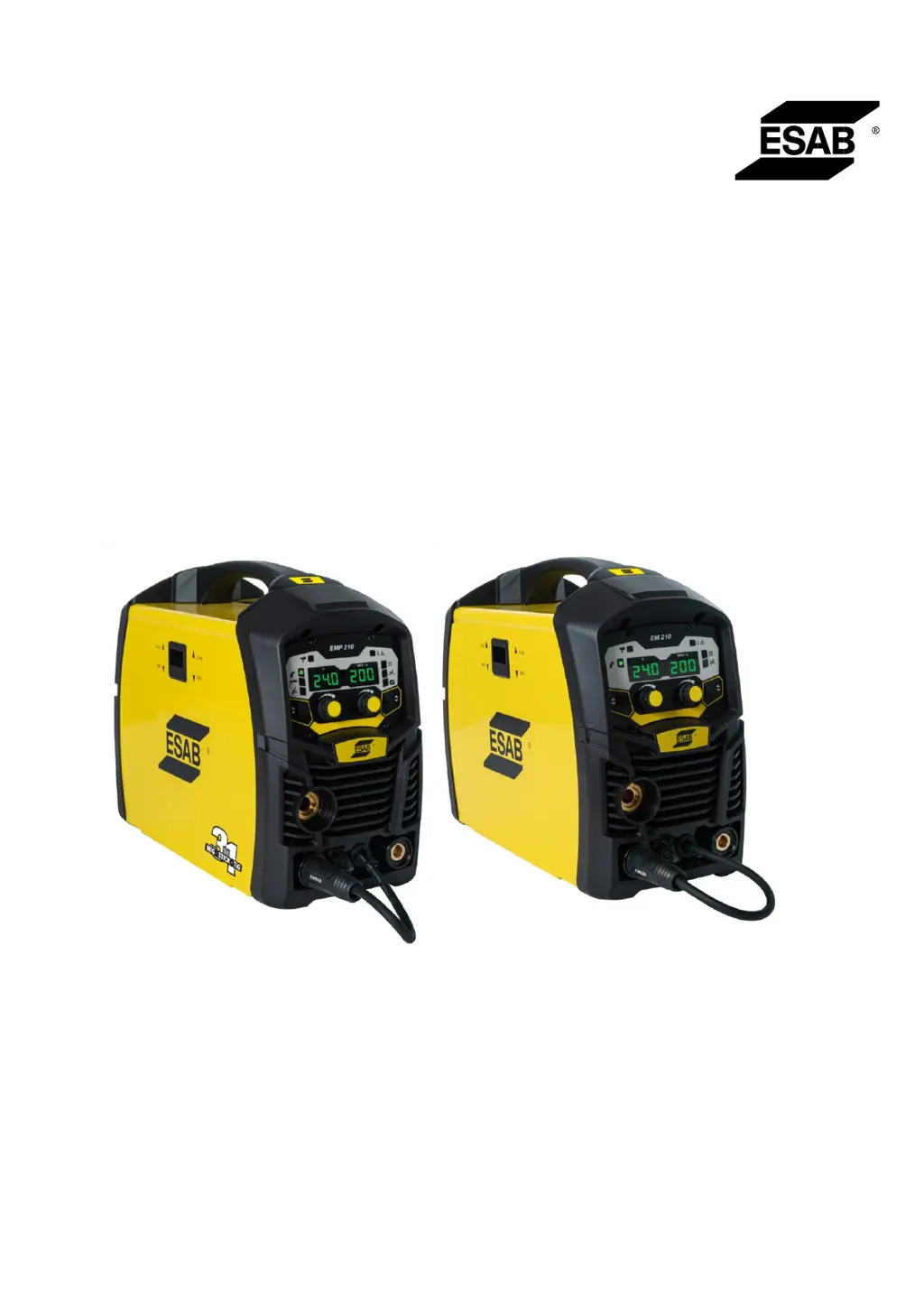

ESAB EM 210 - User Manual

Questions and Answers

C
carsonsandraAug 8, 2025
Why welding arc cannot be established in MIG mode on my ESAB Welding System?
- J
  julienunezAug 8, 2025
  If a welding arc cannot be established in MIG mode, it could be due to the MIG gun polarity lead not being connected to a welding output terminal. Ensure the MIG gun polarity lead is connected to either the positive or negative welding output terminal as needed. Another possible cause is poor or no work lead contact. Clean the work clamp area to ensure good electrical contact.
H
heather46Aug 13, 2025
How to fix inconsistent wire feed on ESAB Welding System?
- T
  Timothy ClaytonAug 13, 2025
  Inconsistent wire feed can be caused by several factors: 1. A worn or dirty contact tip might be the culprit, so replace it if necessary. 2. Check the feed roll for wear and replace if needed. 3. Excessive brake tension on the wire reel hub can also cause issues, so reduce the brake tension on the spool hub. 4. Lastly, a worn, kinked, or dirty conduit liner can cause problems; clean or replace it.
J
James HenryAug 18, 2025
What to do if ESAB Welding System won't start welding when the torch trigger is pressed?
- P
  porterchristineAug 18, 2025
  If your ESAB Welding System doesn't start when the torch trigger is pressed, even though the power is on, it could be due to the power source not being in the correct mode. Set the power source to the correct mode of operation using the process selection switch. Alternatively, the torch trigger might be faulty, in which case you should repair or replace the torch trigger switch/lead.
P
Paul AllenAug 23, 2025
Why ESAB Welding System will not feed wire in MIG mode?
- D
  destiny82Aug 23, 2025
  If your ESAB Welding System isn't feeding wire in MIG mode, it could be due to electrode wire stuck in the conduit liner or contact tip (burnback jam). Check for a clogged or kinked MIG gun conduit liner or a worn contact tip, and replace any faulty components. If the issue persists, there may be an internal fault in the power source, and you should contact an authorized ESAB service technician.
E
Ernest AllenAug 28, 2025
How to stop welding wire from continuing to feed after releasing the torch trigger on ESAB EM 210 Welding System?
- S
  Shawn BarajasAug 28, 2025
  If the welding wire continues to feed after releasing the torch trigger, the trigger mode selection switch might be in 4T latch mode. Change the trigger mode selection switch from 4T latch mode to 2T normal mode. Another cause could be shorted torch trigger leads, so repair or replace the torch trigger switch/lead.
T
teresa17Sep 2, 2025
What to do if fault indicator is illuminated on ESAB EM 210 Welding System?
- M
  Meagan RichardsSep 2, 2025
  If the fault indicator is illuminated and the power source won't start welding when the torch trigger is pressed, the duty cycle of the power source may have been exceeded. Leave the power source switched ON and allow it to cool down. Do not start welding until the fault indicator is turned off.

Summary

Safety Precautions and Warnings

Meaning of Symbols

Explains the meaning of danger, warning, and caution symbols used in the manual.

General Safety Precautions

Lists safety measures for protecting users and bystanders during welding.

Fire and Electrical Shock Hazards

Details safety measures to prevent fires, explosions, and electrical shock during welding.

EMF, Fumes, Gases, and Cylinder Handling Safety

Addresses EMF hazards, fumes/gases risks, and safety guidelines for handling gas cylinders.

Moving Parts and Equipment Maintenance Safety

Warns about moving parts, falling equipment hazards, and safety during equipment maintenance.

User Responsibility and Specific Warnings

Defines user responsibility and provides warnings for wire feeders and cooling systems.

Summary of Key Safety Hazards

Summarizes key safety hazards including electric shock, EMF, fumes, noise, fire, and hot surfaces.

Malfunction, Product Use, and Proposition 65 Warnings

Advises on malfunctions, confirms product use, and details California Proposition 65 warnings.

Technical Data

ESAB EMP 210 Technical Specifications

Presents detailed technical specifications including voltage, current, and setting ranges for the EMP 210.

ESAB EMP 210 and EM 210 Additional Data

Installation Procedures

General Installation Caution

Inserting Wire into Wire Feed Mechanism

Operation and Controls

Victor Regulator Operation and Safety

Explains the function and safe use of the Victor gas regulator, including warnings.

Leak Testing and Regulator Shutdown Procedures

Details leak testing steps and regulator shutdown procedures, with safety warnings.

ESAB EMP 210 Controls and Indicators Overview

Identifies and describes controls and indicators on the ESAB EMP 210 front panel.

EMP 210 Indicators, Controls, and Wiring

Explains EMP 210 indicators, digital displays, controls, and wiring diagrams.

Welding Output Terminals and Polarity Lead

Terminal Connection Warnings and Remote Socket

Wiring Diagrams and Multifunction Control

MIG Mode Parameters and Sub-Menu Functions

Lists MIG mode parameters and details access to sub-menu functions.

MMA and LIFT TIG Mode Parameters

Arc Control, Process Selection, and Gas Inlet

ESAB EM 210 Controls and Indicators Overview

Identifies and describes controls and indicators on the ESAB EM 210 front panel.

EM 210 Indicators, Controls, and Output Terminals

Explains EM 210 indicators, displays, controls, output terminals, and safety warnings.

EM 210 Polarity Lead and Remote Control Socket

MIG Mode Parameter Settings and Sub-Menu Functions

Details MIG mode parameters, sub-menu functions, inductance, and trigger modes.

Process Selection and Maintenance Operations

Features and Setup Procedures

Model-Specific Features: Circuit Breaker and Control Switch

Feed Roller Pressure Adjustment and Safety

Setup for MIG (GMAW) Welding with Gas Shielded Wire

Setup for MIG (FCAW) Welding with Flux Core Wire

Setup for Spool Gun MIG Welding

Setup for LIFT TIG (L-GTAW) Welding

Setup for MMA (SMAW) Welding

Basic Welding Guide

Introduction to MIG and FCAW Welding

Gas Metal Arc Welding (GMAW) Process

Flux Cored Arc Welding (FCAW) Process

MIG Gun Position and Travel Speed

Adjustable Variables and Nozzle Angle

Arc Establishment and Power Source Settings

MMA (SMAW) Technique and Material Effects

Fillet Welds and Vertical Up Welding

Vertical Down and Overhead Welding Techniques

TIG (L-GTAW) Basic Welding Technique

Maintenance and Calibration

Routine Service and Calibration Requirements

Insulation Resistance and Earthing Requirements

Calibration Schedule and Equipment Requirements

Power Source Cleaning Procedures

Troubleshooting Common Issues

Power Source Problems and Solutions

Lists common power source problems, their causes, and corrective actions.

MIG (GMAW;FCAW) Welding Troubleshooting Introduction

Introduces common MIG welding problems and addresses porosity issues.

MIG Gun Maintenance and Wire Feed Problems

Common MIG Welding Problems and Solutions

Lists common MIG welding problems like undercut, lack of penetration, and weld cracking.

Additional MIG Welding Problem Solutions

MMA (SMAW) Welding Troubleshooting

Addresses common MMA (SMAW) welding problems and their solutions.

TIG (L-GTAW) Welding Problems

Addresses common TIG (L-GTAW) welding problems and their solutions.

Error Codes and Thermal Error Procedures

Explains equipment error codes, thermal error indication, and display codes.

ESAB EM 210 Specifications

General

Input Voltage	120/230 V
Output Current Range	30-210 A
Process	MIG/MAG, MMA
Welding Current Range (Lower)	30 A
Protection Class	IP23
Welding Output	210 A
Dimensions (in)	19.7 x 13.4 x 14.6 in
Spool Size Capacity	8 in
Power Supply	Single-phase
