S Remove (cut off) the conductor 077 between the board K45.3 and the collector
rail.
S Only remount the RC filter fitted in the old power source.
S Remove the old connection diagram on the inside of the cover plate.
2. Follow the instructions below for the conversion of L AE 800/1000:
S Dismount the cable stem, excluding the cables 034 and 035 for the power supply
of the control transformer.
S Dismount all electronics boards and their fittings.
S Dismount the control panel.
S Remove the support with the attached fuse--bases.

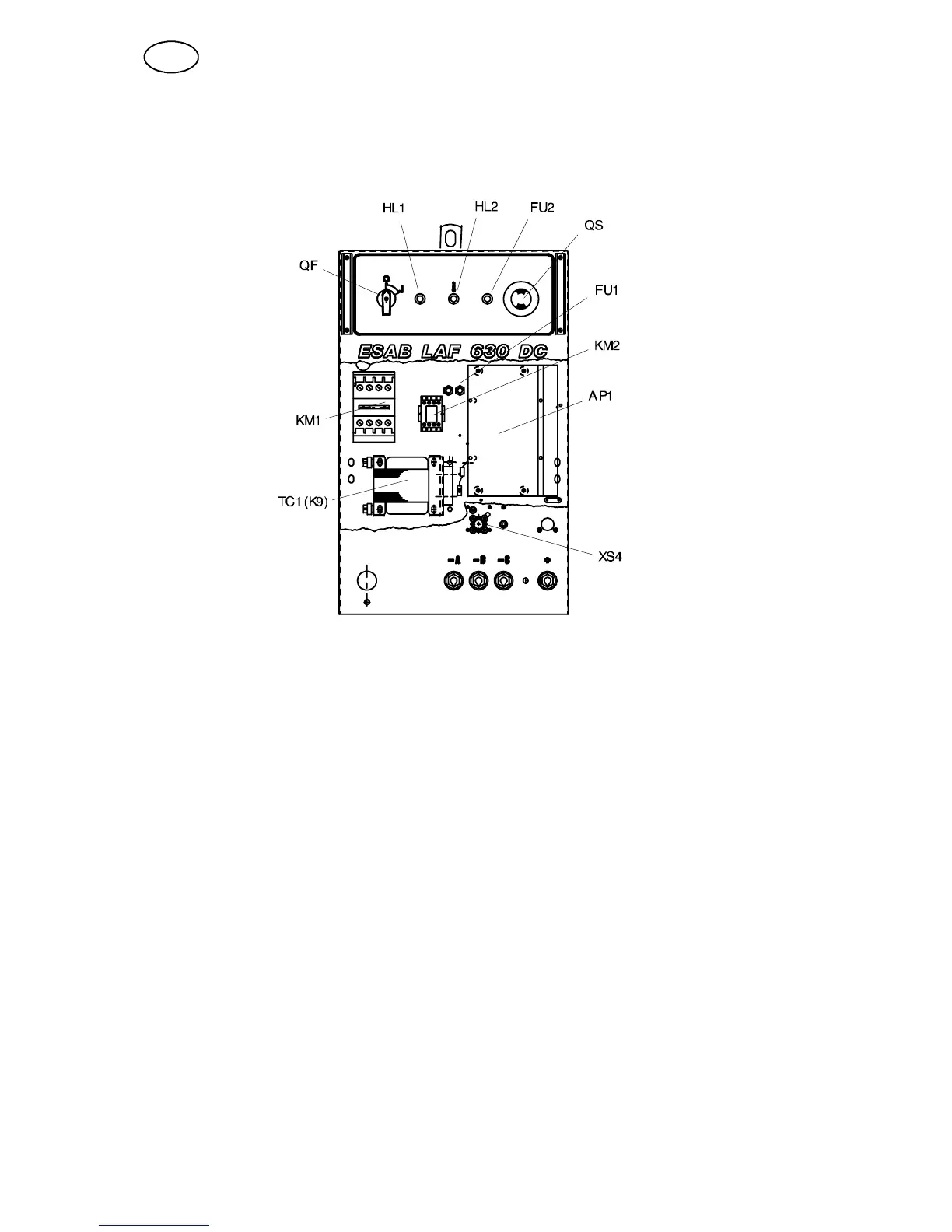

S Remove the lower fuse (K21.2 = fuse for 42 V AC from the control transformer
K9).
The other two fuses are to be re--used together with the rubber spacers, but
fitted elsewhere in the power source.
S Remove the multi--pole contact devices on the bottom plate and cover the holes
by way of two plastic plugs from the kit.
S Remove the signs (a sticker and a screwed sign marked 42 V) from the bottom
plate.
S Dismount the terminal block on the control transformer.
S Cover the contactor and the control transformer before drilling new mounting
holes.
