© ESAB AB 2011
- 8 -
ba52de

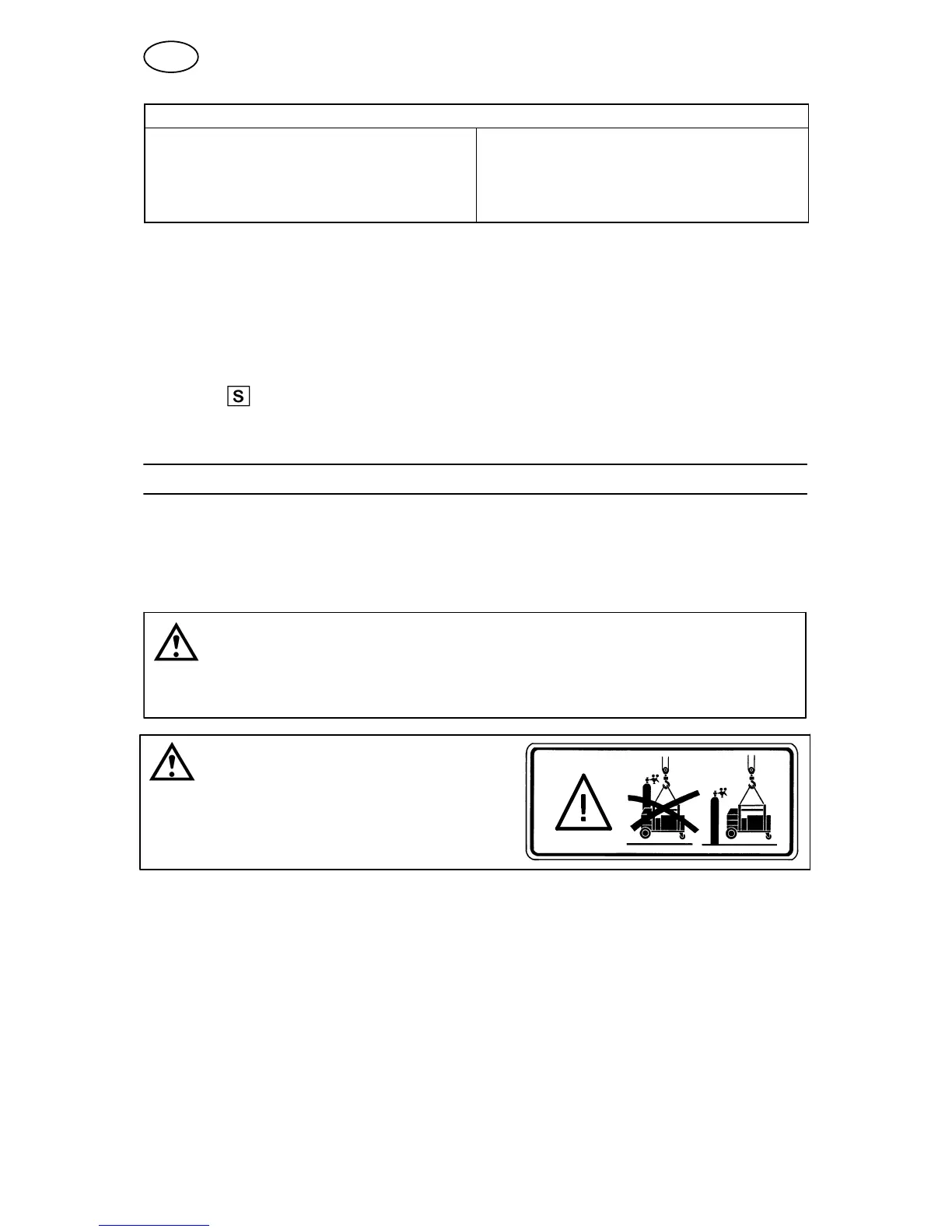

Cooling unit (100 % duty cycle)
P
1l/min
1200 W at 25° C
P
max
3.5 bar
Coolant ESAB's ready mixed coolant
Coolant quantity 5.5 l
Duty cycle
The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at
a certain load without overloading. The duty cycle is valid for 40° C.
Enclosure class
The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid
objects or water. Equipment marked IP23 is designed for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.
4 INSTALLATION
The installation must be carried out by a professional.
Note!
Connect the power source to the electricity mains with a network impedance of 0.230W (Mig 410w),
0.155W (Mig 510w) or lower. If the network impedance is higher, there is a risk of flicker in the
illuminators.
CAUTION
This product is intended for industrial use. In a domestic environment this product may
cause radio interference. It is the user's responsibility to take adequate precautions.
WARNING
Straps must be used when lifting the power
source. The handle is only intended for
pulling it.
4.1 Location
Position the welding power source in such a way that its cooling air inlets and outlets
are not obstructed.
GB
