ESAB PLASMAWELD 402 - Component Identification and Part Numbers

17
Item: Designation: PLW 202/402
Part No.:
Designation on
circuit diagram:
8 Display board 1 270 363 A107
9 Gas test push bottom 1 442 005
10 Adjusting board PLW 1 270 295 A102
11 Rotating knob 1 440 214
12 Regulator board 1 270 254 A103
13 Logic board 1 270 447 A104
14 Flowmeter pilot gas 0-7 l/min 1 431 846
14.1 Flowmeter pilot gas 0-1 l/min 1 431 473
15 Flowmeter welding gas 0-12 l/min 1 431 845
15.1 Flowmeter welding gas 0-20 l/min 1 431 472
16 Signallamp green 1 440 901
16.1 Lamp 60V 1 440 902
17 Signallamp whit 1 441 523
18 Switch 1 441 381
19 Rotating knob 1 430 941

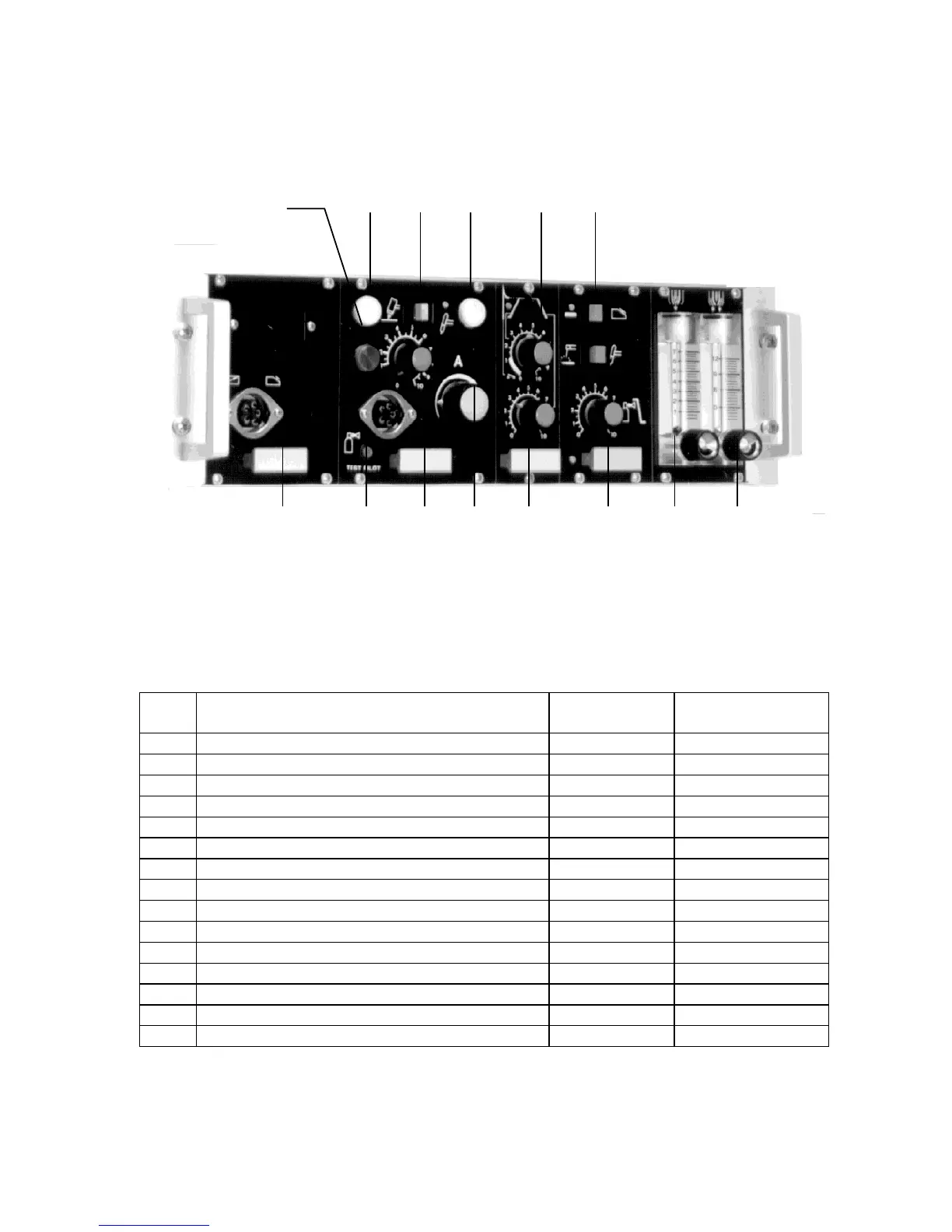

8 9 10 11 12 13 14 15
16
17 18 17 19 18
