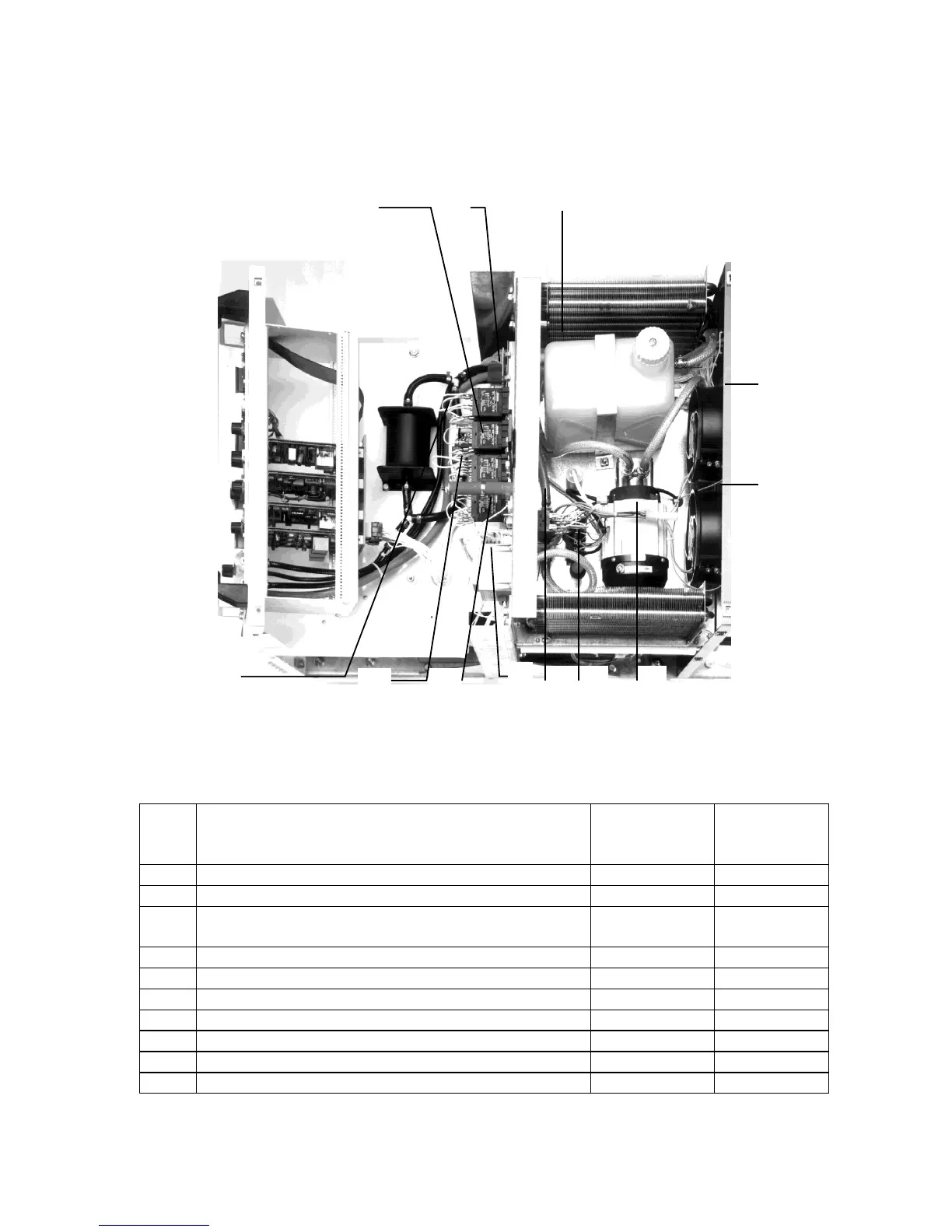

ESAB PLASMAWELD 402 - Internal Components List

18
Item: Designation: PLW 202/402
Part No.:
Designation
on circuit
diagram:
20 HF-Generator SIG 3.1 1 170 100 G101
21 Resistor 330R/55W 1 440 979 R106
22 Contactor 42V 1 442 708 K101-K103,
K105, K106
23 Capacitor fan 3µF/400V 1 441 785 C103
24 Water pump incl. capacitor 1 431 679 M105, C105
25 Fan 150mmØ 1 441 550 M106, M107
26 Relays board 1 270 517 A110
26.1 Water flow switch 1 431 657 F106
27 Gas solenoid valve 42VAC 1 440 327 Y103
28 Relays Pilot 1 440 377 K104
22
26
26.1
25
25
27
28
20
21
22 23 24
