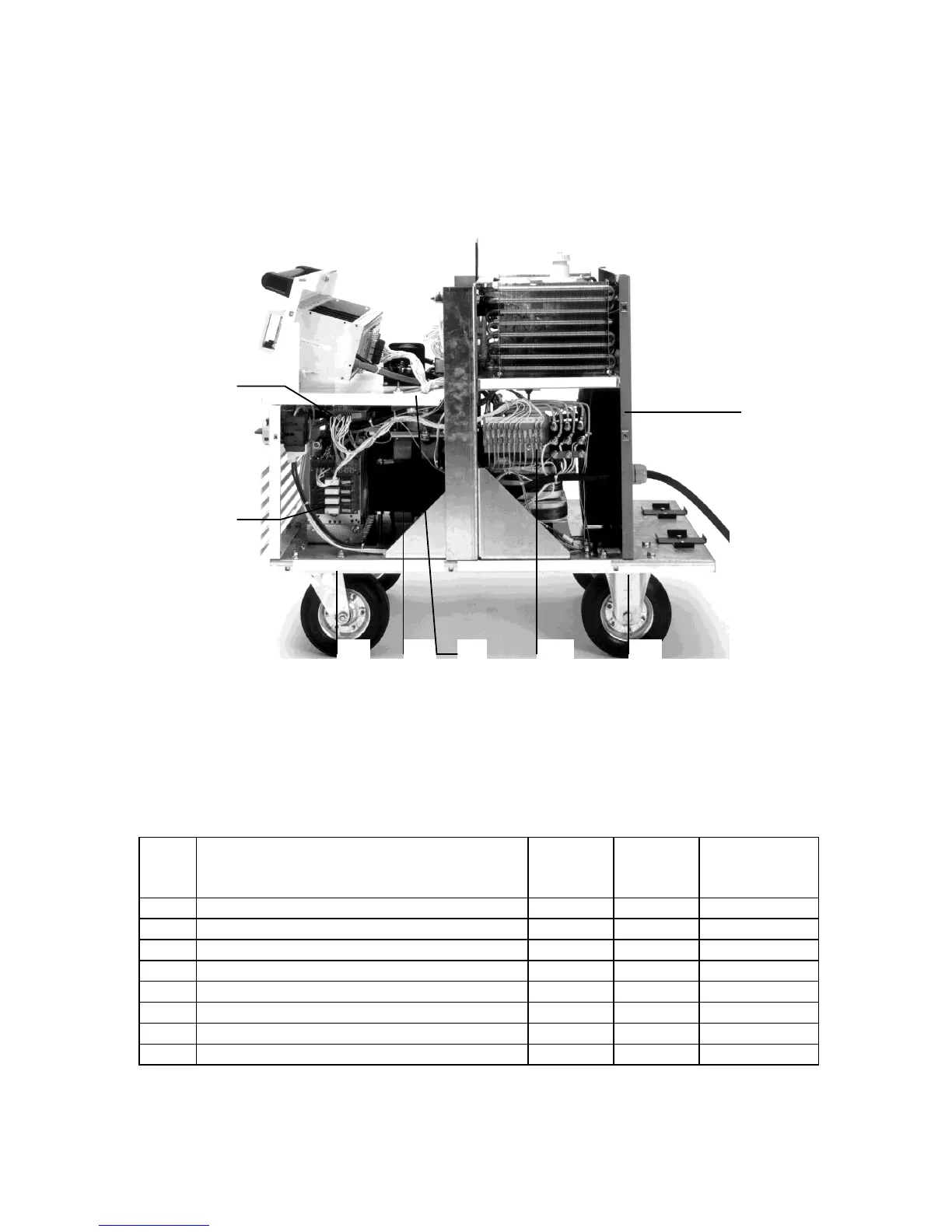

ESAB PLASMAWELD 402 - Component Identification (Continued)

19
Item: Designation: PLW 202
Part No.:
PLW 402
Part No.:
Designation on
circuit
diagram:
29 Filter board 1 270 614 1 270 614 A106
30 Thyristorbridge 1 443 024 1 441 530 A108
31 Steering roller 1 430 640 1 430 640
32 Main inductor 1 130 061 1 130 059 L101
33 HF- inductor 1 130 037 1 130 080 L102
34 Pedestal mounted roller 1 430 639 1 430 639
35 Fan 300mm Ø 1 442 707 1 442 707 M103
36 Main transformer 1 120 266 1 120 256 T101
29
30
31 32 33 34
35
36
