5.2 Connections and control devices

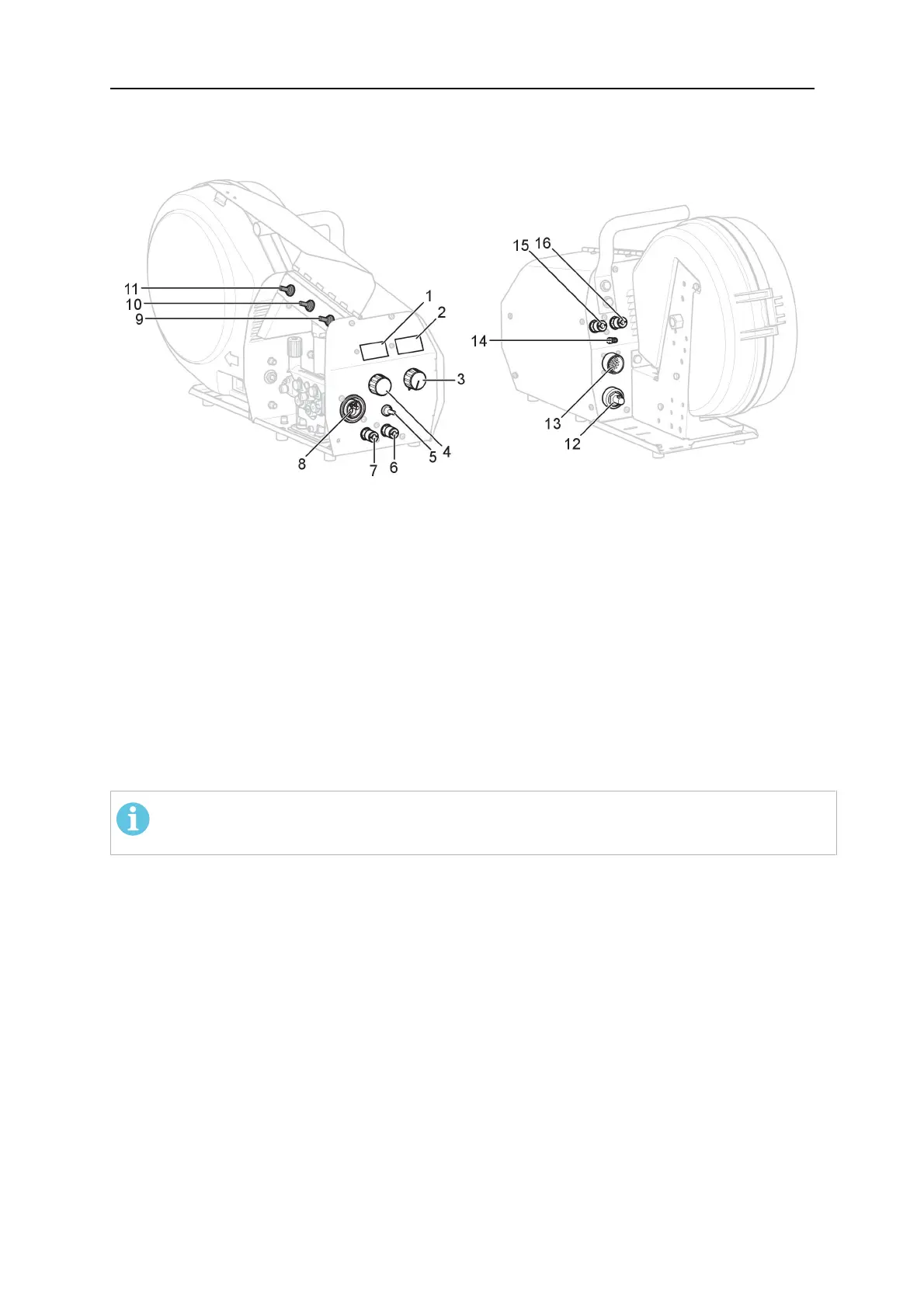

1. Display voltage (V) 9. Switch for 4 stroke / 2 stroke (inside)
2. Display current (A) 10. Switch for Cored wire / Solid wire (inside)
3. Knob for setting the wire feed speed 11. Switch for Creep start (inside)
4. Knob for setting the voltage 12. Connection for welding current from power
source (OKC)
5. Switch for wire inching or gas purge 13. Connection for control cable from power
source
6. Connection RED for cooling water from
welding torch *)
14. Connection for shielding gas
7. Connection BLUE for cooling water to
the welding torch *)
15. Connection BLUE for cooling water from
power source (cooling unit) *)
8. Connection for the welding torch 16. Connection RED for cooling water to
power source (cooling unit) *)
NOTE!
*) Cooling water connections only available on certain models.
5.3 Water connection
When connecting a water-cooled welding torch, the main power supply switch of the power
source must be in the OFF position and the cooling unit switch must be in position 0.
A water connection kit can be orderred as accessory, see chapter "Accessories".
5.4 Starting procedure
When the wire feed starts, the power source generates welding voltage.
If there is no welding current flow within three seconds, the power source switches the
welding voltage off. The wire feed continues until the welding torch's switch is switched off.
5.5 Function explanations
Open the lid for access to the 4 stroke/2 stroke, the Cored/Solid wire and the Creep start
functions.
