4 INSTALLATION
0463 341 231
- 15 -
© ESAB AB 2020
Warrior 500i CC/CV
Mains voltage 460V 3~ 50/60 Hz 575V 3~ 50/60 Hz
Mains cable area
4C 8Awg / 4G 6mm
2
4C 8Awg / 4G 6mm
2
Phase current I
eff
28A 24A
Fuse
anti-surge
type C MCB
35A
32A
25A
25A
NOTE!
The mains cable areas and fuse sizes as shown above are in accordance with
Swedish regulations. Use the power source in accordance with the relevant national
regulations.
Supply from power generators
The power source can be supplied from different types of generators. However, some
generators may not provide sufficient power for the welding power source to operate
correctly. Generators with Automatic Voltage Regulation (AVR) or with an equivalent or better
type of regulation, with rated power ≥40kW, are recommended.
Connection instruction
The power source Warrior 500i CC/CV (0465 350 881) for USA is connected to 460 V from
the factory. The power source Warrior 500i CC/CV (0465 350 887) for Canada is connected
to 575 V from the factory.

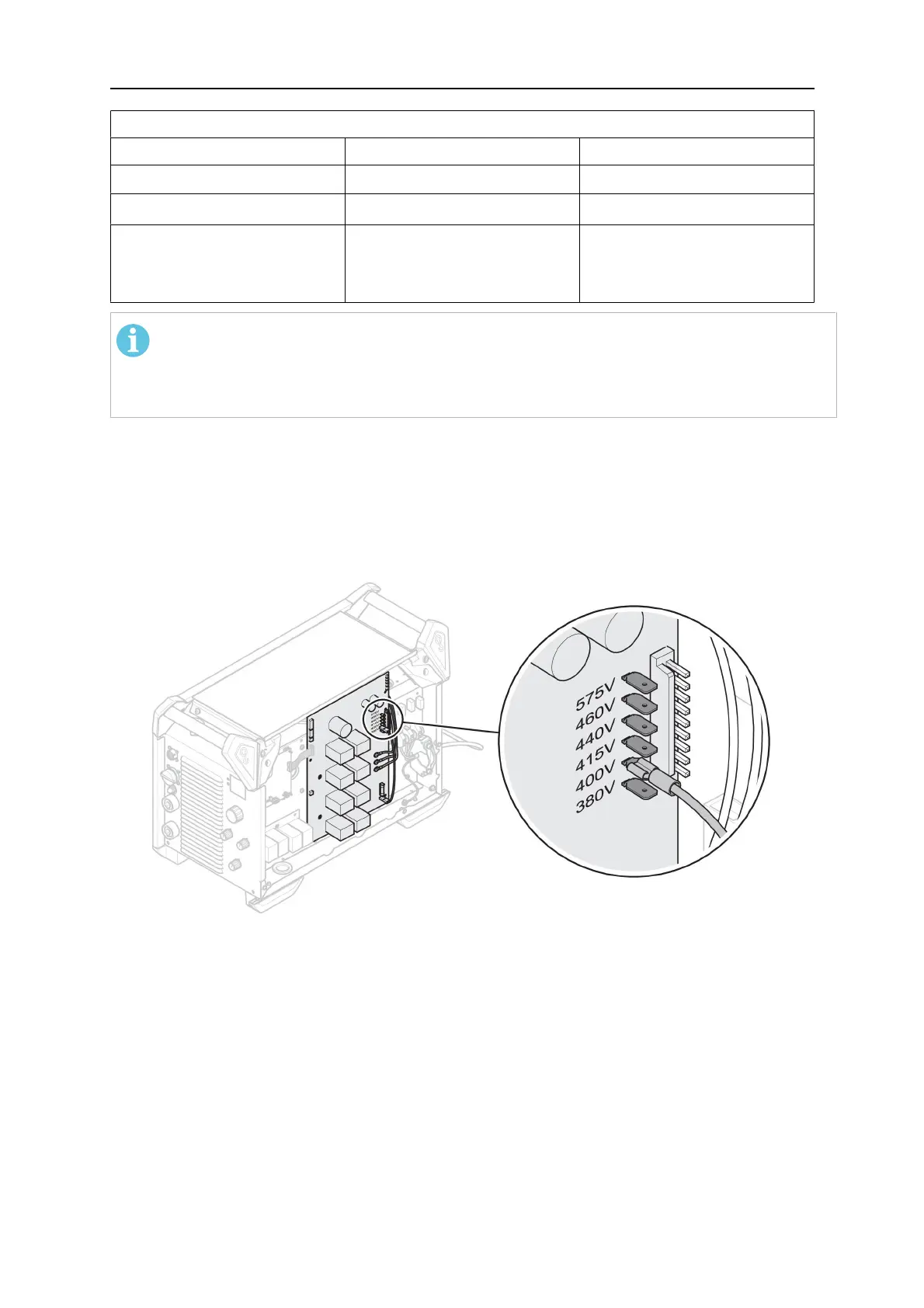

If a different mains voltage is required, the cable on the printed circuit board must be moved
and placed on the correct pin. See picture above. This operation must be carried out by
personnel with the appropriate electrical knowledge.
