Installing the Flue System

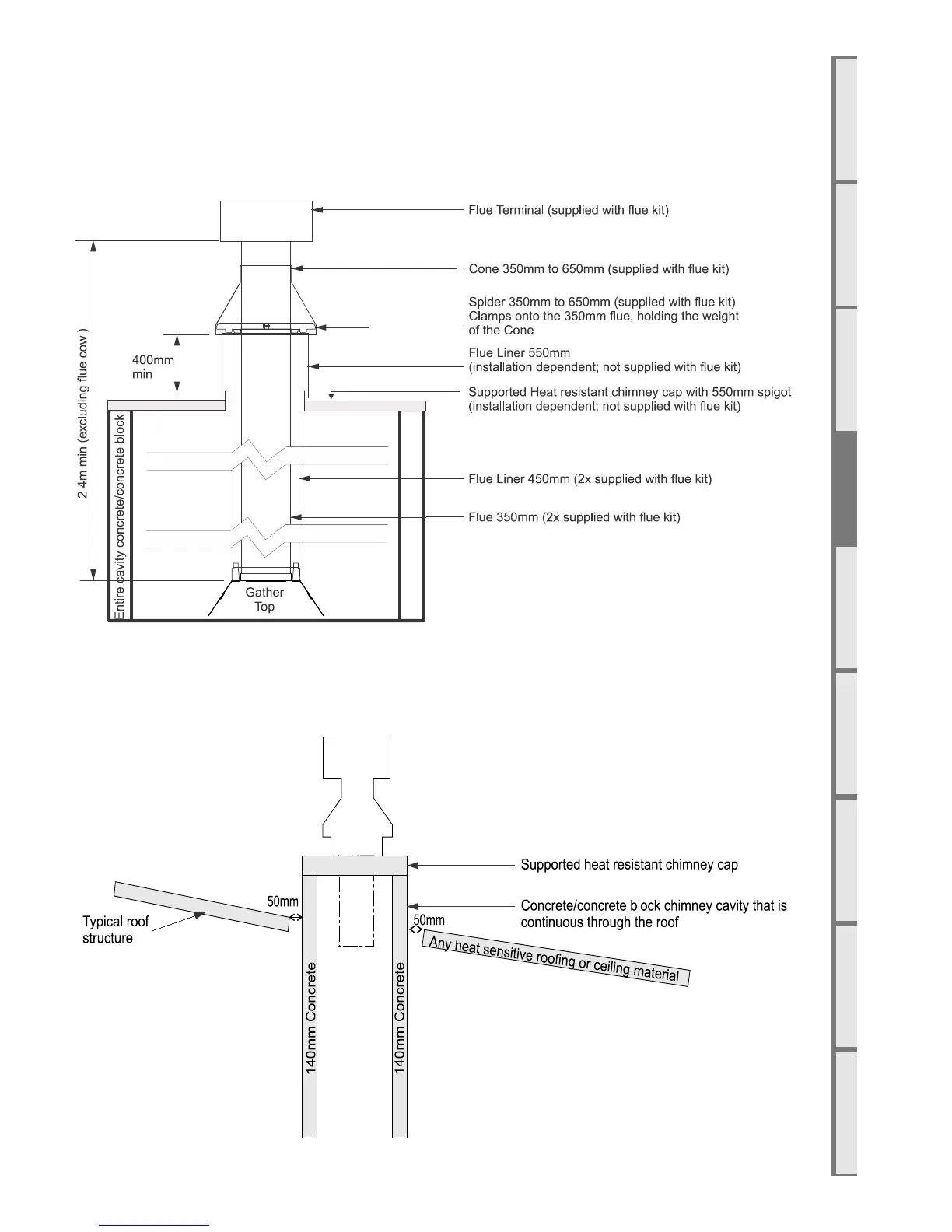

D1 Flue Specifications
Note: The EK1550 will require two of each item shown below (two flue terminals, two cones, etc.). The
EK1250 and EK950 require one of each item shown below.
NOTE: THE APPLIANCE & FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE WITH AS/
NZS 2918 AND THESE SPECIFICATIONS
