Escea EK1250 - Securing the Base of the Appliance

B ACDEFG
13
IH
EK Installation Manual 630451_1
B ACDEFG
13
IH
E2 Securing the Base of the Appliance

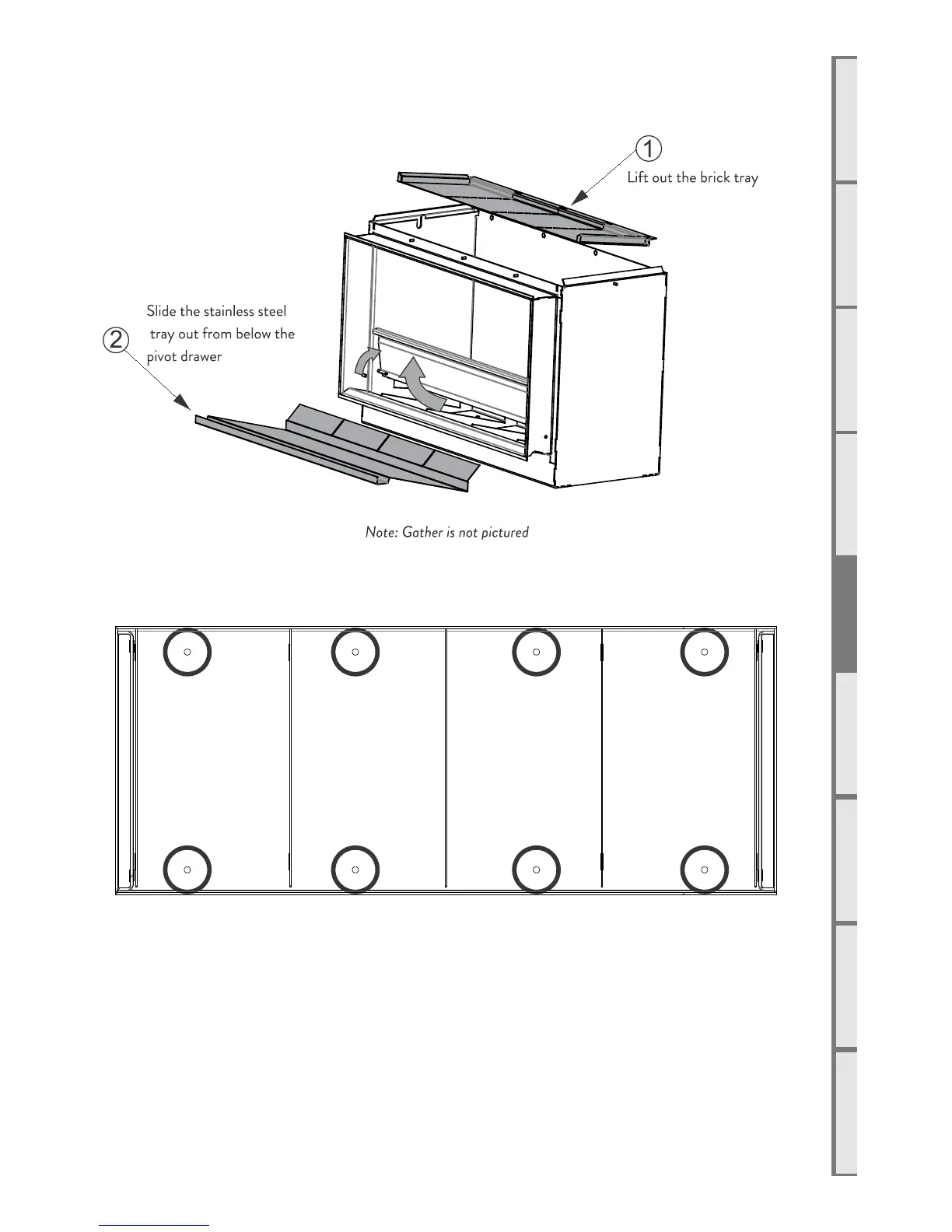

Remove the shaded parts below to access the securing holes. The EK1250 has been used as an
example; the EK950 and EK1550 would be secured in the same manner.
Secure the appliance base suitably using any 4 of the holes circled below.
