5. Connector Assignments
5.1 CAN Interface at DSUB9 Connector

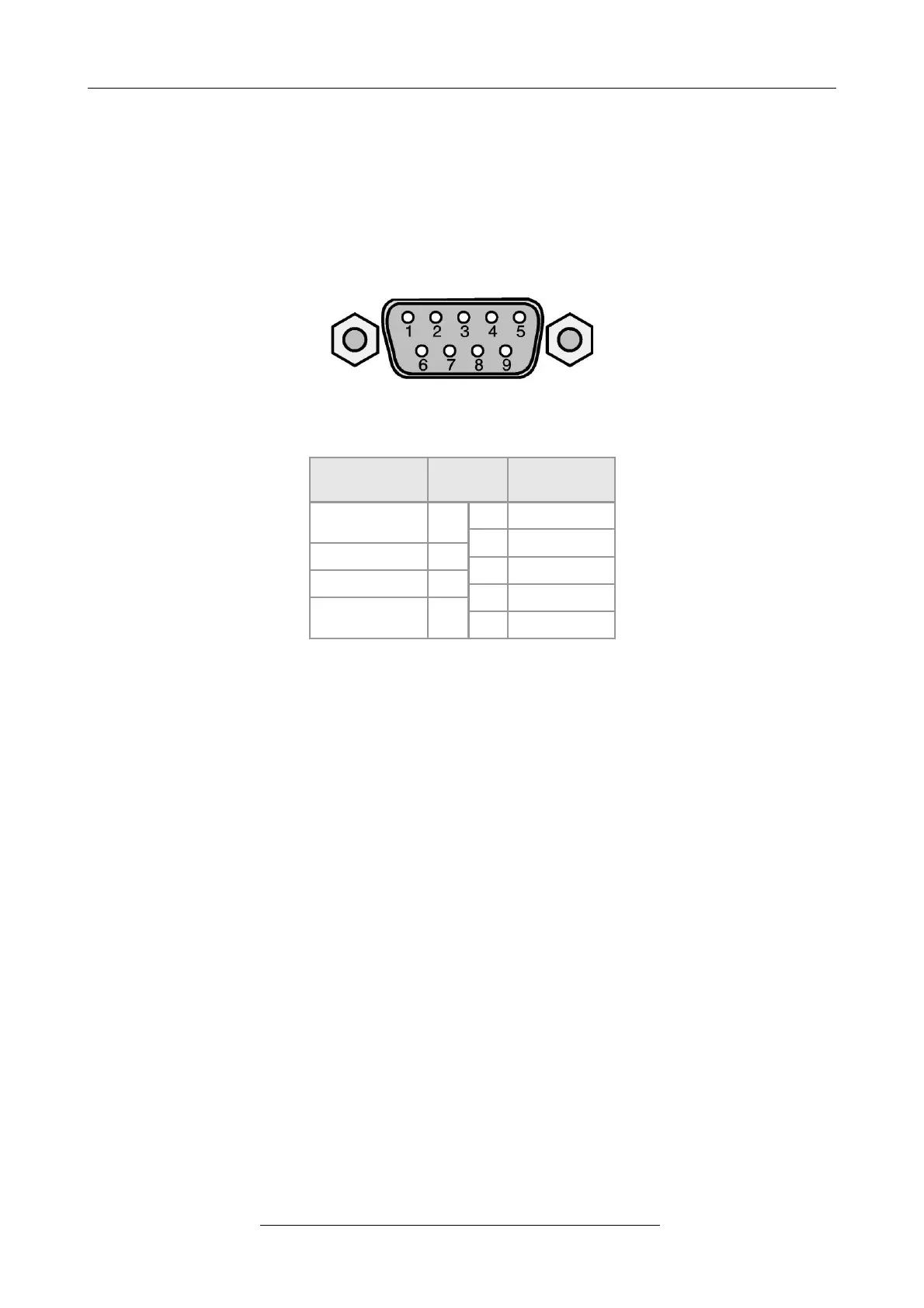

Device connector: 9-pin DSUB connector, male contacts
Pin Position:
Pin Assignment:
Signal Pin Signal
1
reserved
CAN_GND
6
2
CAN_L
CAN_H
7
3
CAN_GND
reserved
8
4
reserved
reserved
9
5
Shield
Signal Description:
CANx_L, CANx_H ... CAN signals of the CAN interface x (x... 1 - 4)
CANx_GND... reference potential of the local CAN physical layer of CAN interface x
(x... 1 - 4)
Shield ... shielding (connected with the case of the DSUB9 connector and with
the case of the CAN-USB/2)
- ... reserved for future applications, do not connect!
