ESD CAN-USB/2 - USB Socket

Connector Assignments
5.2 USB Socket
NOTICE
The module may only be operated at USB nets with USB interface version numbers ≥
1.1-interface! Using versions earlier than 2.0 reduces the data transfer rate.
Device connector: Standard USB 2.0 receptacle, type-B

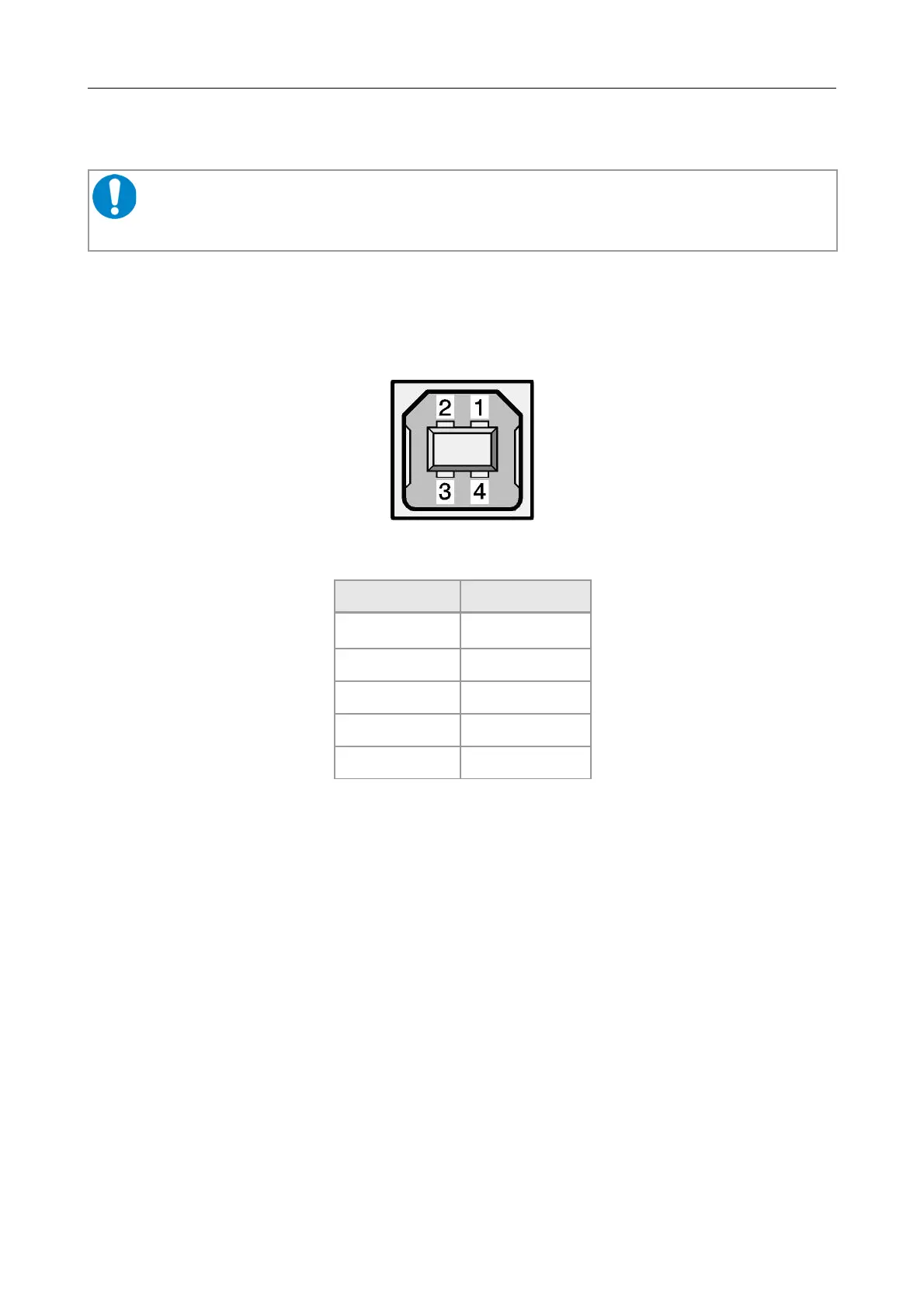

Pin Position:
Pin Assignment:
Pin Signal
1
V
BUS
2 D-
3 D+
4 GND
Shell Shield
USB socket (series B)
Signal Description:
V
BUS
... +5 V power supply voltage
D+, D-... USB signal lines Data+ and Data-
GND... Reference potential
Shield ... shielding (connected with the case of the USB connector and with
the case of the CAN-USB/2)
