Eskimo 22200 - Parts

10
Operator's Manual
22200, 25502
|
EVO™ Crossover Ice Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
EVO
™
2 / EVO
™
2iT

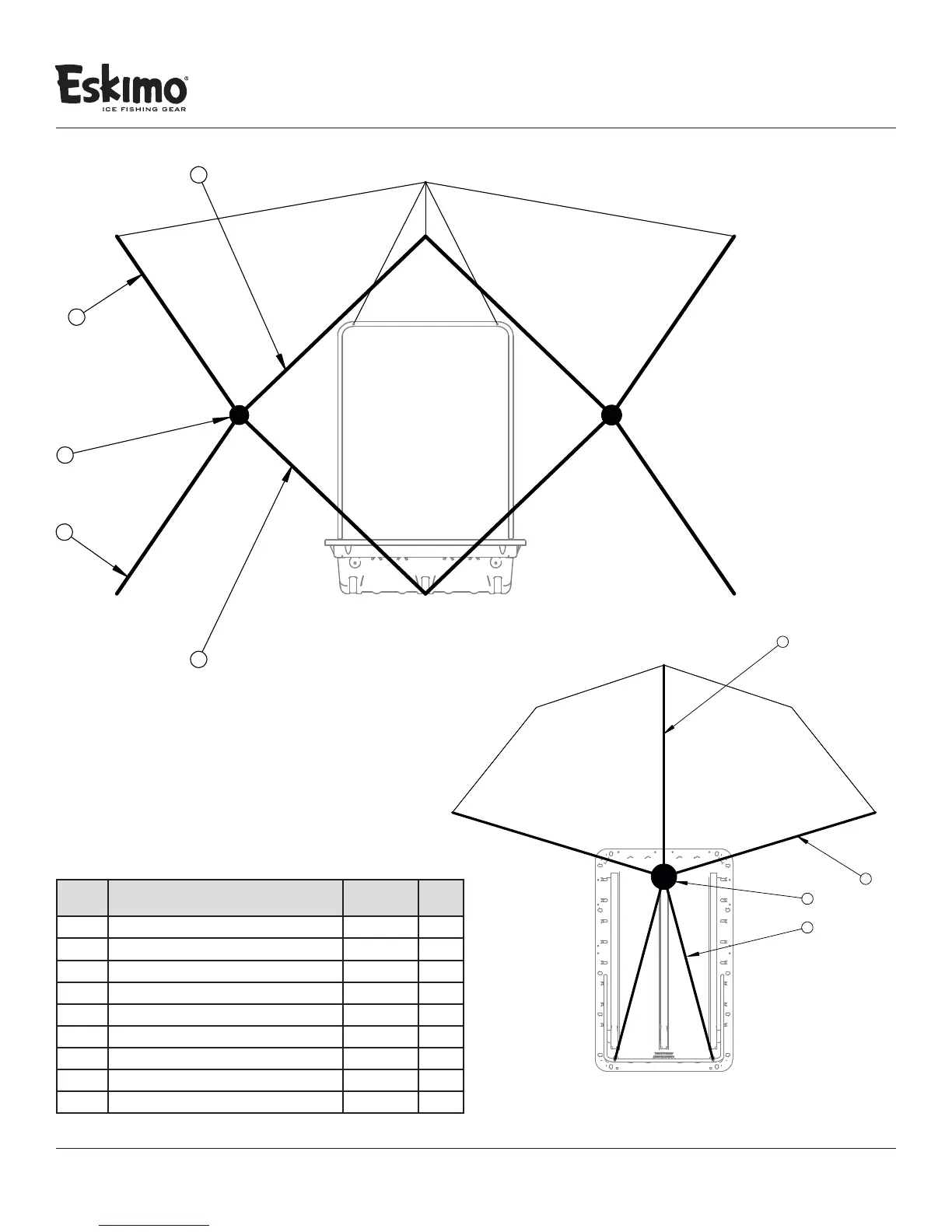

HUBS/POLES PARTS LIST
REF.
NO. DESCRIPTION PART NO. QT Y.
1
POLE FIBERGLASS 50.56 IN X 10.00 MM
22970 4
2
POLE FIBERGLASS 49.88 IN X 10.00 MM
22972 4
3
POLE FIBERGLASS 50.31 IN X 11.00 MM
24860 1
4
POLE FIBERGLASS 58.19 IN X 11.00 MM
24862 2
5
POLE FIBERGLASS 59.25 IN X 11.00 MM
24864 2
6
ASSEMBLY HUB BALL AND SOCKET TYPE W/RW
10091 2
7
ASSEMBLY BALL AND SOCKET LARGE EVO2
24858 1

SKIN ASSEMBLY COMPLETE ESKIMO 22200
21947 1

SKIN ASSEMBLY COMPLETE ESKIMO 25502
24565 1
6
22200/25502 HUBS/POLES PARTS LIST
YTQNOITPIRCSED# TRAP# NOOLLAB
1 22970 POLE FIBERGLASS 50.56 IN X 10.00 MM 4
2 22972 POLE FIBERGLASS 49.88 IN X 10.00 MM 4
3 24860 POLE FIBERGLASS 50.31 IN X 11.00 MM 1
4 24862 POLE FIBERGLASS 58.19 IN X 11.00 MM 2
5 24864 POLE FIBERGLASS 59.25 IN X 11.00 MM 2
6 10091 ASSY HUB BALL AND SOCKET TYPE W/ RW 2
7 24858 ASSEMBLY BALL AND SOCKET LARGE EVO 2 1
4
3
5
7
1
1
2
2
6
22200/25502 HUBS/POLES PARTS LIST
YTQNOITPIRCSED# TRAP# NOOLLAB
1 22970 POLE FIBERGLASS 50.56 IN X 10.00 MM 4
2 22972 POLE FIBERGLASS 49.88 IN X 10.00 MM 4
3 24860 POLE FIBERGLASS 50.31 IN X 11.00 MM 1
4 24862 POLE FIBERGLASS 58.19 IN X 11.00 MM 2
5 24864 POLE FIBERGLASS 59.25 IN X 11.00 MM 2
6 10091 ASSY HUB BALL AND SOCKET TYPE W/ RW 2
7 24858 ASSEMBLY BALL AND SOCKET LARGE EVO 2 1
4
3
5
7
1
1
2
2
TOP VIEW
FRONT VIEW
