Eskimo 22200 - Parts

9
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
ENGLISH
Operator's Manual
22200, 25502
|
EVO™ Crossover Ice Shelter

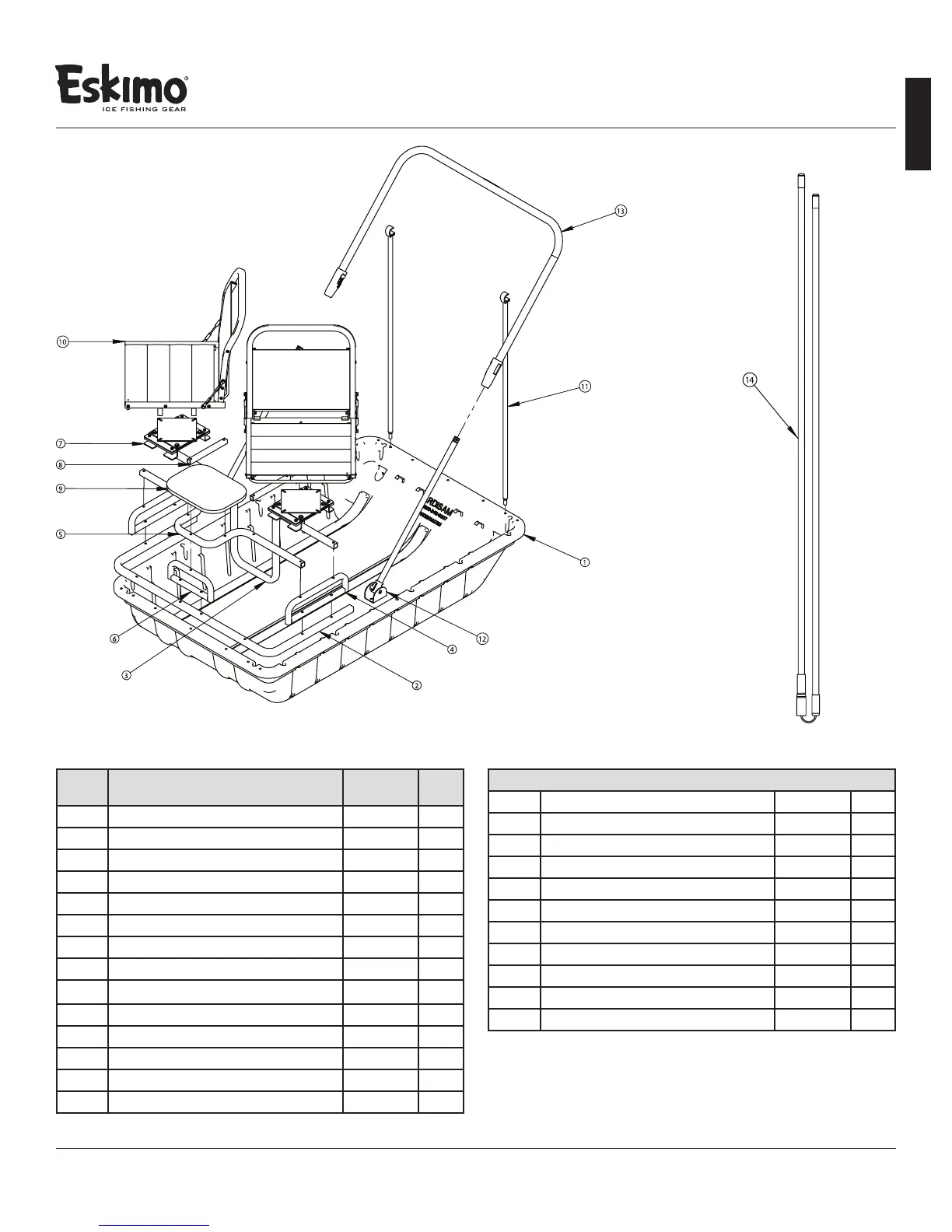

PARTS EXPLOSION
EVO
™
2 / EVO
™
2iT
EVO
™
2 / EVO
™
2iT PARTS LIST
REF.
NO. DESCRIPTION PART NO. QT Y.
1
SLED PRO FISH 250
69190 1
2
LOOP TUBE SLED BASE 22200
22001 1
3
LOOP TUBE SEAT BACK 22200
22000 1
4
WELDMENT SIDE RISER
21998 2
5
LOOP TUBE SEAT FRONT 22200
21999 1
6
WELDMENT FRONT RISER
21997 1
7
ASSEMBLY SWIVEL SLIDE 22200
21995 2
8
TUBE SUPPORT .75 x 8.38 IN
21996 2
9
ASSEMBLY TABLE 12.125 x 9.125
11331 1
10
SEAT VERSA TOP
15004 2
11
ASSEMBLY SUPPORT BACK POLE 22200
22004 2
12
ASSEMBLY HINGE 22200
22003 2
13
POLE ALUMINUM ASSEMBLY 22200
21950 1
14
ASSEMBLY POLE COLLAPSIBLE 71.25 IN
22612 2
ITEMS BELOW NOT SHOWN

WASHER ¼” FLAT ZINC
48261 60

NUT ¼20 HNYLK ZN
67538 28

BOLT ¼20 X 1” HHCS GR5 ZN
69345 4

ROPE ¼” X 8” TWISTED BLK
67589 1

SCREW 6 X 3/8” PTHA ZN
69629 12

EDGE TRIM ¼ CUT TO 60 INCH
22270 1

BOLT ¼20” X 1¾”
48250 2

BOLT ¼20” X 2½”
48270 6

BOLT ¼20” X 1½”
48240 10

BOLT ¼20” X 2¼”
48271 9

POUCH OF ICE ANCHORS
18722 1
