5
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
ENGLISH
Operator's Manual
22200, 25502
|
EVO™ Crossover Ice Shelter

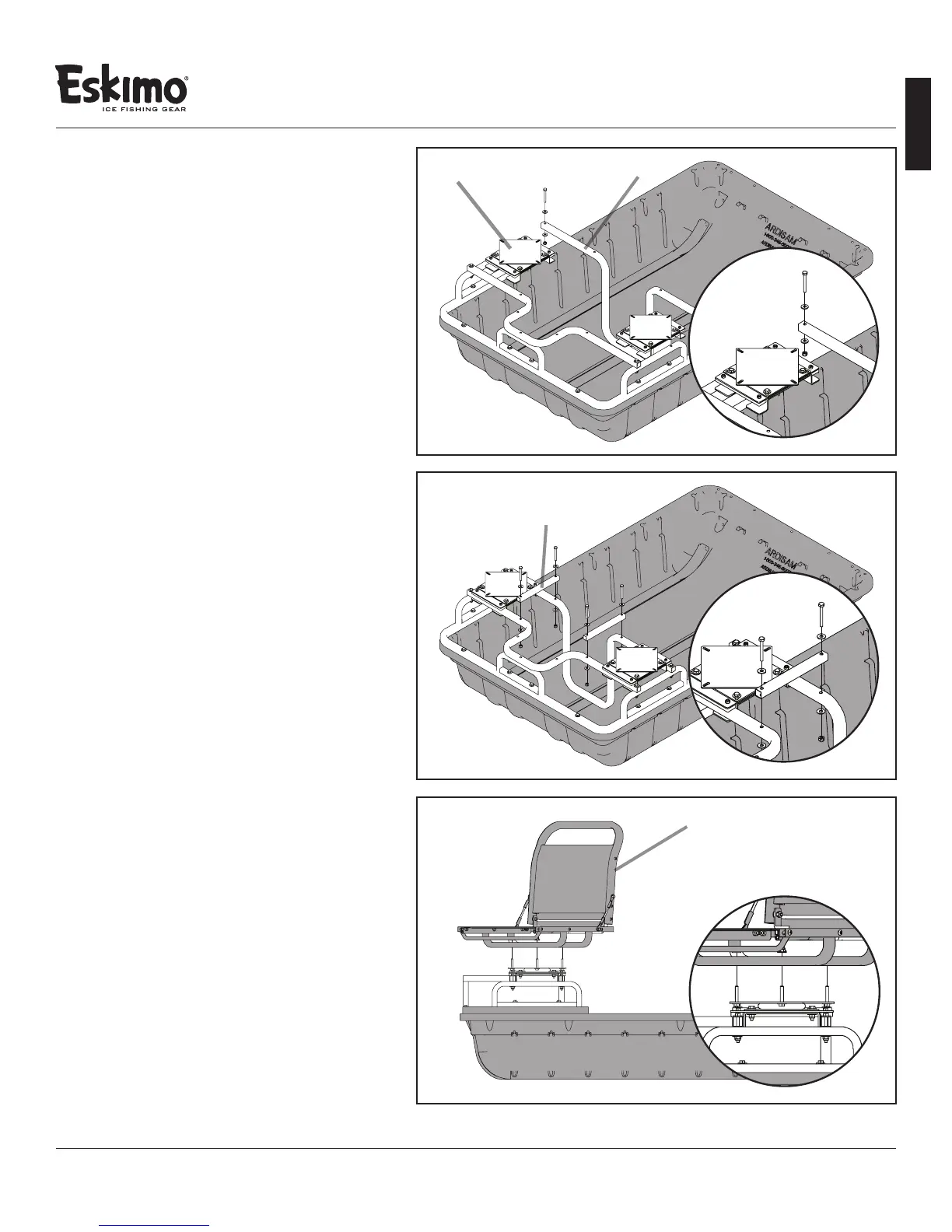

4. [ FIGURE 4 ]
Assemble Swivel Slide (#21995) between
the Front Seat Loop (#21999) and Back Seat
Loop (#22000) using: (2) ¼ - 20 x 2¼” bolts
(#48271), (2) Nyloc nuts (#67538), and (4)
¼” washers (#48261).
NOTE: Each swivel slide assembly should
move freely back and forth on (#21999)
and (#22000).
5. [ FIGURE 5 ]
Mount Tube Supports (#21996) to Front
Seat Loop (#21998) and Back Seat Loop
(#22000) using: (4) ¼ - 20 x 2¼” bolts
(#48271), (4) Nyloc nuts (#67538), and
(8) ¼” washers (#48261).
VERSA SEAT INSTALLATION
6. [ FIGURE 6 ]
Assemble Versa seats (#15004) to Swivel
Slides (#21995) using: (8) ¼ - 20 x 1½” bolts
(#48240), (8) Nyloc nuts (#67538), and (16)
¼” washers (#48261). Insert bolts thread up
through swivel plate and hole pattern in
seat frame.
#21995
#22000
#21996
FIGURE 4
FIGURE 5
FIGURE 6
#15004
