Operator’s Manual
44100
|
Eskape™ 2000 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
ENGLISHENGLISH
4.1 4.2
4.3
4.54.4
#27729
#27729
#26544
#27730
4.6

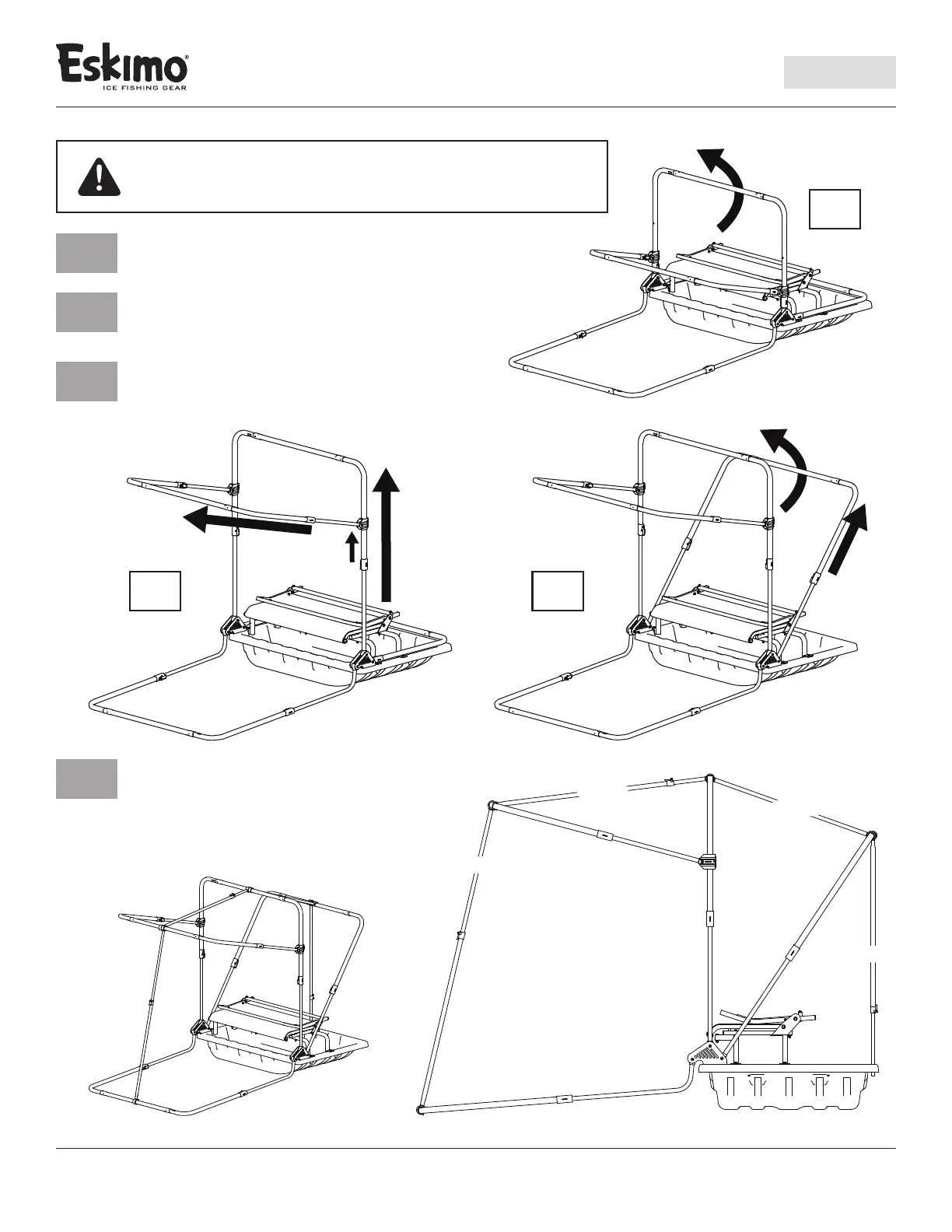

See Figures for Spreader Pole and Frame Pole locations.
4.3
Flip the combined pole assemblies 42834/42831/42834 and
42835/42831/42836 to the approximate location shown.
4.4
Extend the combined pole assemblies from Step 4.3.
There should be an audible “click” when the push
button assemblies on the poles lock into place.
4.5
Pick up and extend the rear pole assembly
27727/42831/27727.
IMPORTANT NOTE:
Reference the Figures in Step 4.6 (below) to determine the spreader poles and locations
that will support a freestanding pole structure as you complete the following steps.
