Kongsberg X-series

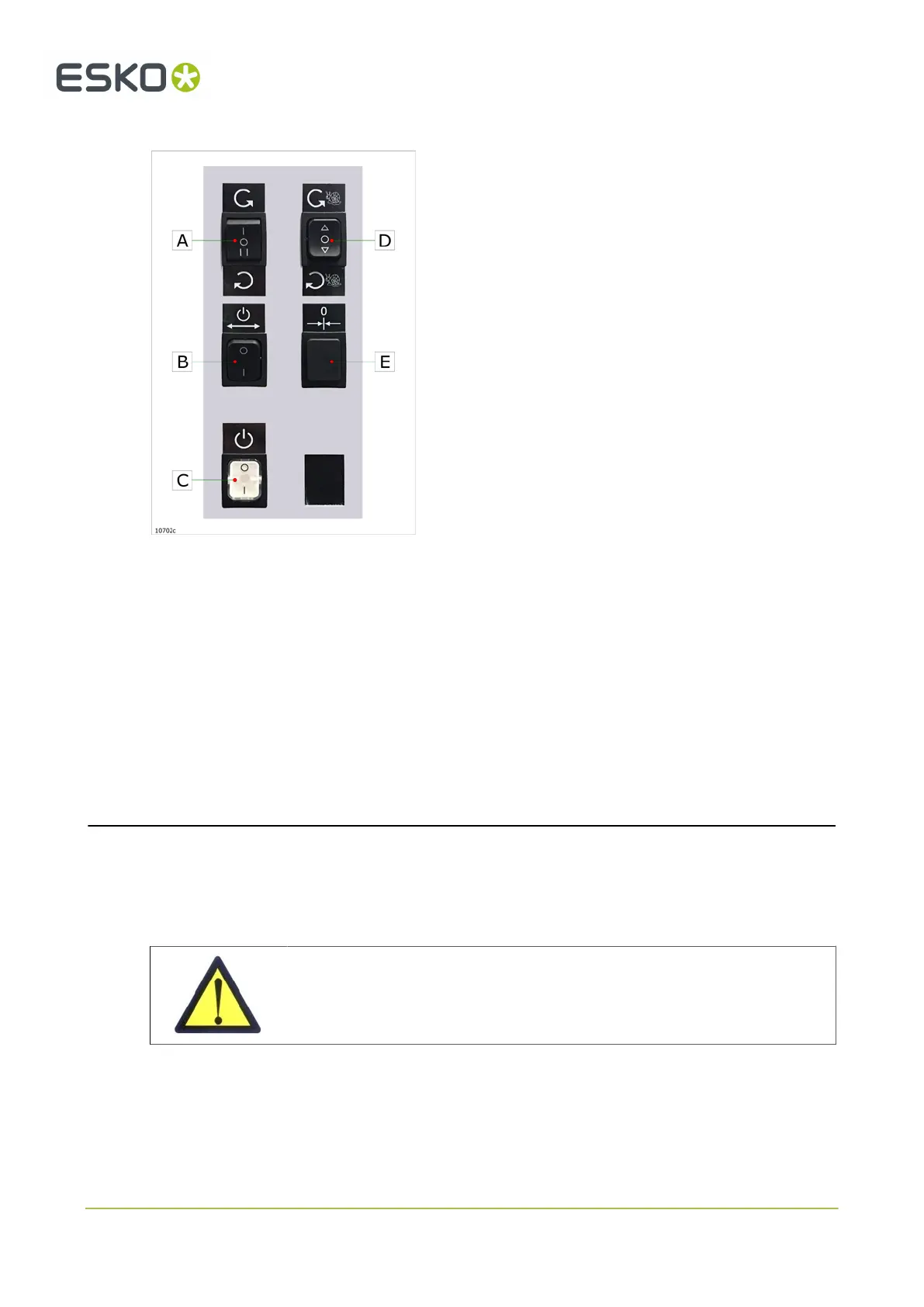

A - Automatic winding direction switch
The winding direction switch controls the winding
direction of the Motorized Roll Feeder.
This needs to be active during operation and
should be set to 0 when loading/ unloading and
when using Manual Jog.
B - Edge Control switch
The Edge Control switch turns the Edge Control
Option On or Off.
C - Power switch
The power switch turns the machine on or off.
D - Manual Jog switch - forward/backward
winding direction
The jog switch turns the Autogrip shaft slowly
forwards or backwards.
To Jog, the winding direction button has to be set
in position: 0.
E - Edge Control Shaft Centering switch
Pressing the Edge Control Centering switch will
position the Autogrip shaft in the center of the
unit.
19.6. Loading material to the Motorized Roll Feeder
19.6.1. Release the Autogrip Shaft
Two persons are needed to lift the Autogrip shaft. Do not attempt to lift it alone.
1.
Make sure the automatic Winding direction switch (A) is turned off.
2.
Manually move the shaft axis to the release position of the fixtures using Manual Jog (D). In order
to push the safety disks outwards and release the shaft, the triangular warning sticker must face
upwards.
200
