Press Tool Override Down once more to lift the Tool.
12.
The two cuts should follow exactly the same path.
13.
If exact, the Center Offset is correct, select Finish to exit.
14.
If not, modify the Center Offset Value and repeat from point 6.
11.7. Manual adjustment of Center Offset and angle
Sometimes, it might be necessary to fine-tune the
adjustments obtained using the wizards.

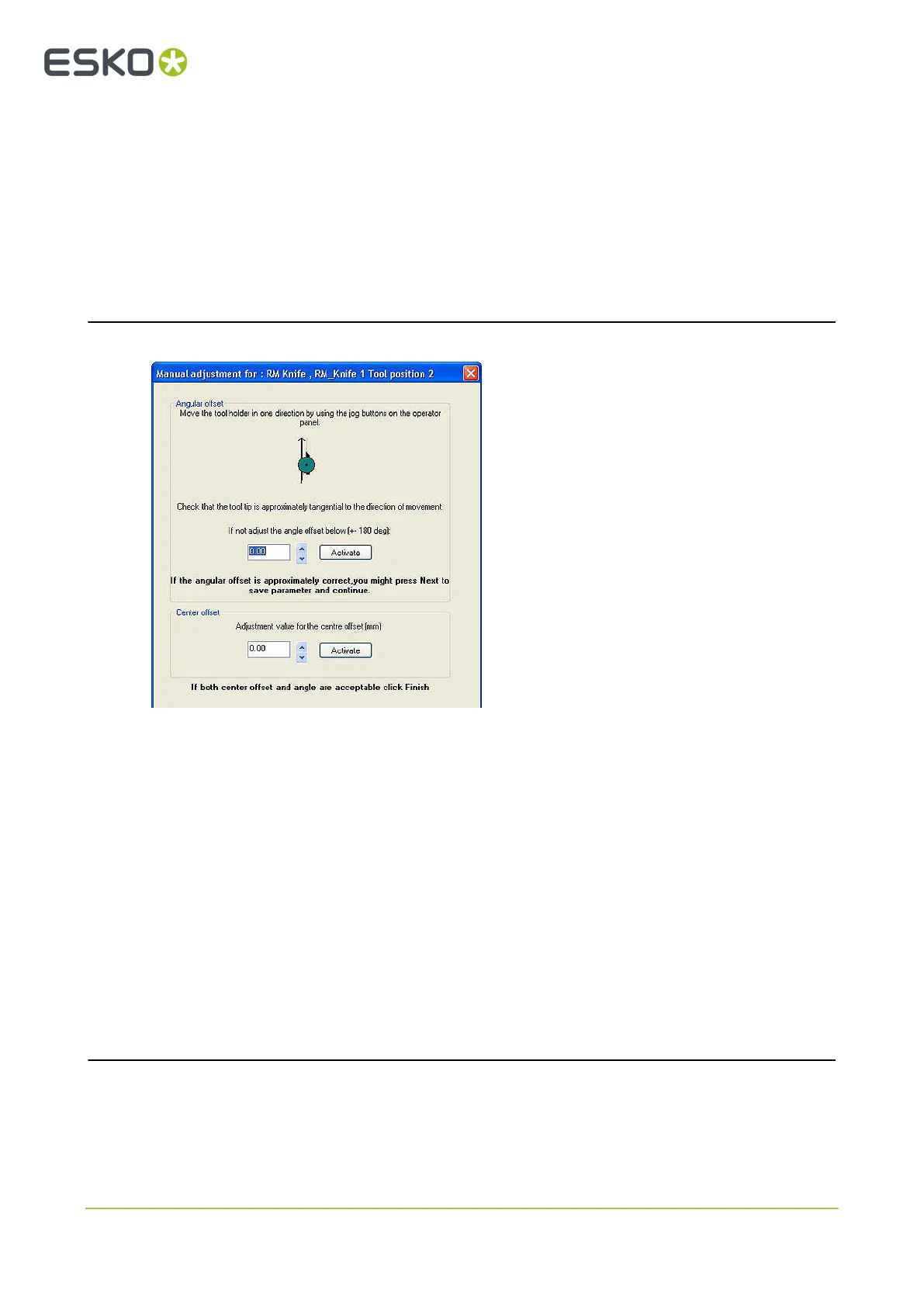

Use this dialog to modify the adjustment values
for angle and center offset.
1.
Select the tool to be adjusted.
2.
Press the Manual adjustment of…. button to enter the adjustment dialog.
3.
Key in or use the up/down arrows to specify the wanted offset.
4.
Press Activate to enter the value.
5.
Test the new settings.
Note:
All tools should, by default, be close to correct angle when the adjustment value is 0. The Manual
adjustment of…. function is useful if you want to test a tool for correct behavior before program
execution.
11.8. Tool Offset
69
