Esoteric K-05XD - Connection Ports; Digital and Analog Connection Ports

10

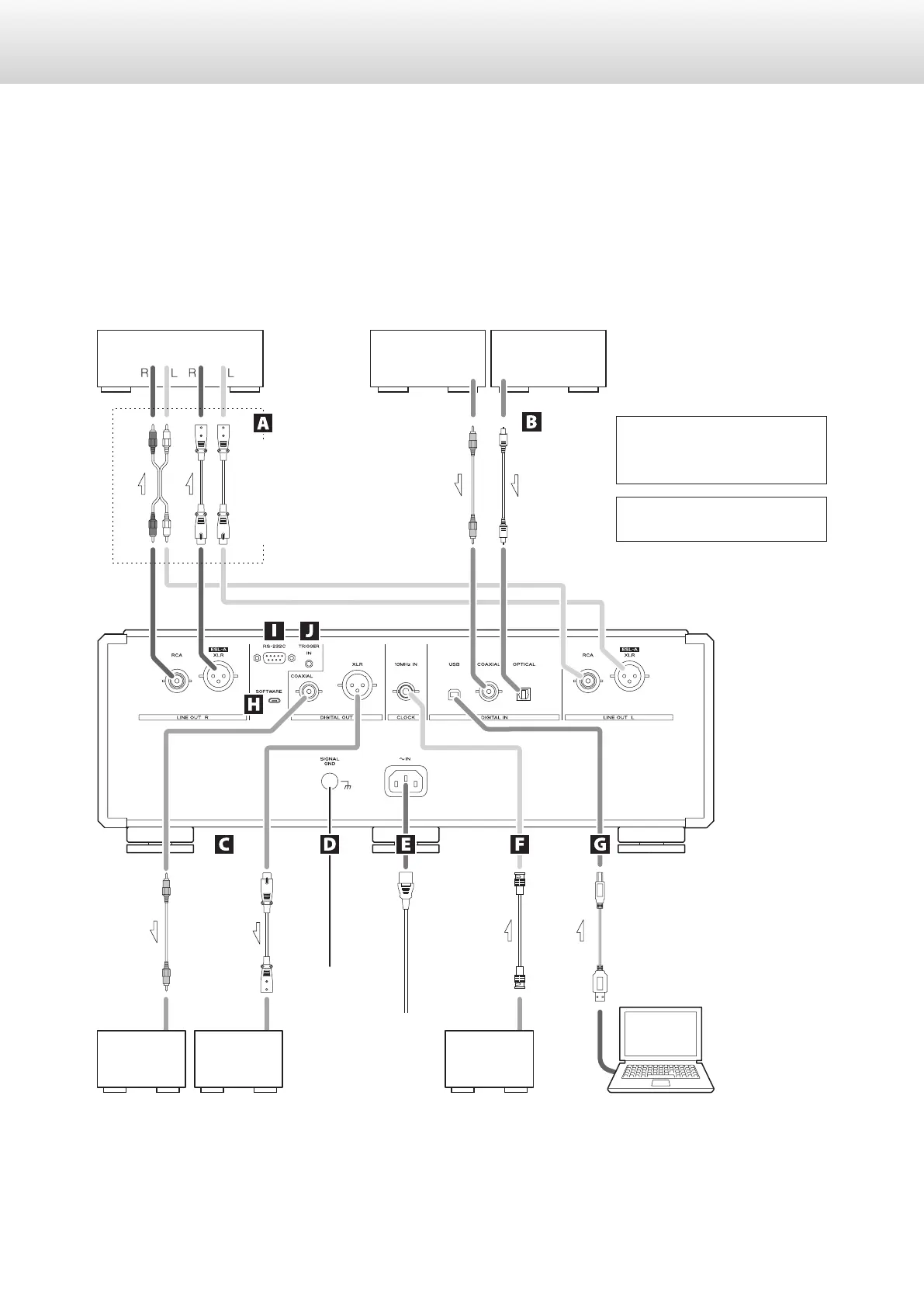

Connections (continued)
V
Precautions when making connections
o Complete all other connections before connecting the power plug to a power outlet.
o Read the owner’s manuals of all devices that will be connected, and follow their instructions.
Digital output can be set to XLR or
COAX (page25).
The polarity of the XLR connectors
can be set so that either 2 or 3 is
HOT (page25).
RCA cables
XLR cables
USB cable
Connect using a set of
only one type.
Set the analog output
setting (AOUT>) to the
connector type being
used (page25).
RCA coaxial digital
cable
Optical digital
cable
Included power cord
RCA coaxial digital
cable
BNC coaxial cable
Stereo amplifier
ComputerOther digital devices
(DA converter, AV amplifier,
recorder, etc.)
Equipment with
digital audio
output
Equipment with
digital audio
output
Device that outputs
clock signal (G-01X, etc.)
DIGITAL IN
(COAXIAL)
DIGITAL IN
(XLR)
DIGITAL OUT
(COAXIAL)
DIGITAL OUT
(OPTICAL)
10MHz OUT
Audio input
(LINE IN, etc.)
XLR digital cable
c
Wall outlet
