18

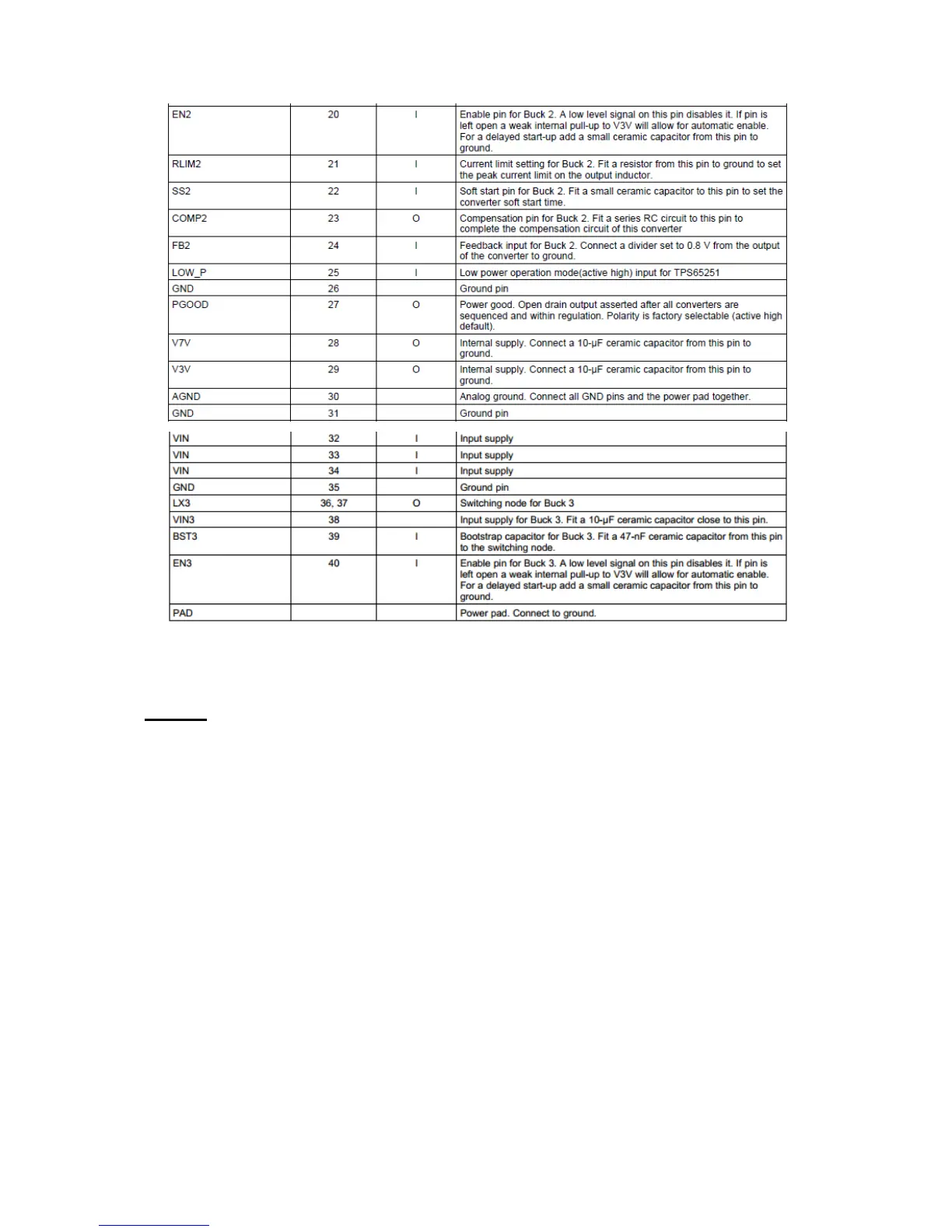

Table 6: Pin functions
MP1484
a) General Description
The MP1484 is a monolithic synchronous buck regulator. The device integrates top and
bottom 85mΩ MOSFETS that provide 3A of continuous load current over a wide operating
input voltage of 4.75V to 18V. Current mode control provides fast transient response and
cycle-by-cycle current limit.
An adjustable soft-start prevents inrush current at turn-on and in shutdown mode, the
supply current drops below 1µA.
The MP1484 is PIN compatible to the MP1482 2A/18V/Synchronous Step-Down Converter.
b) Features
• 3A Continuous Output Current
• Wide 4.75V to 18V Operating Input Range
• Integrated 85m
Ω Power MOSFET Switches
