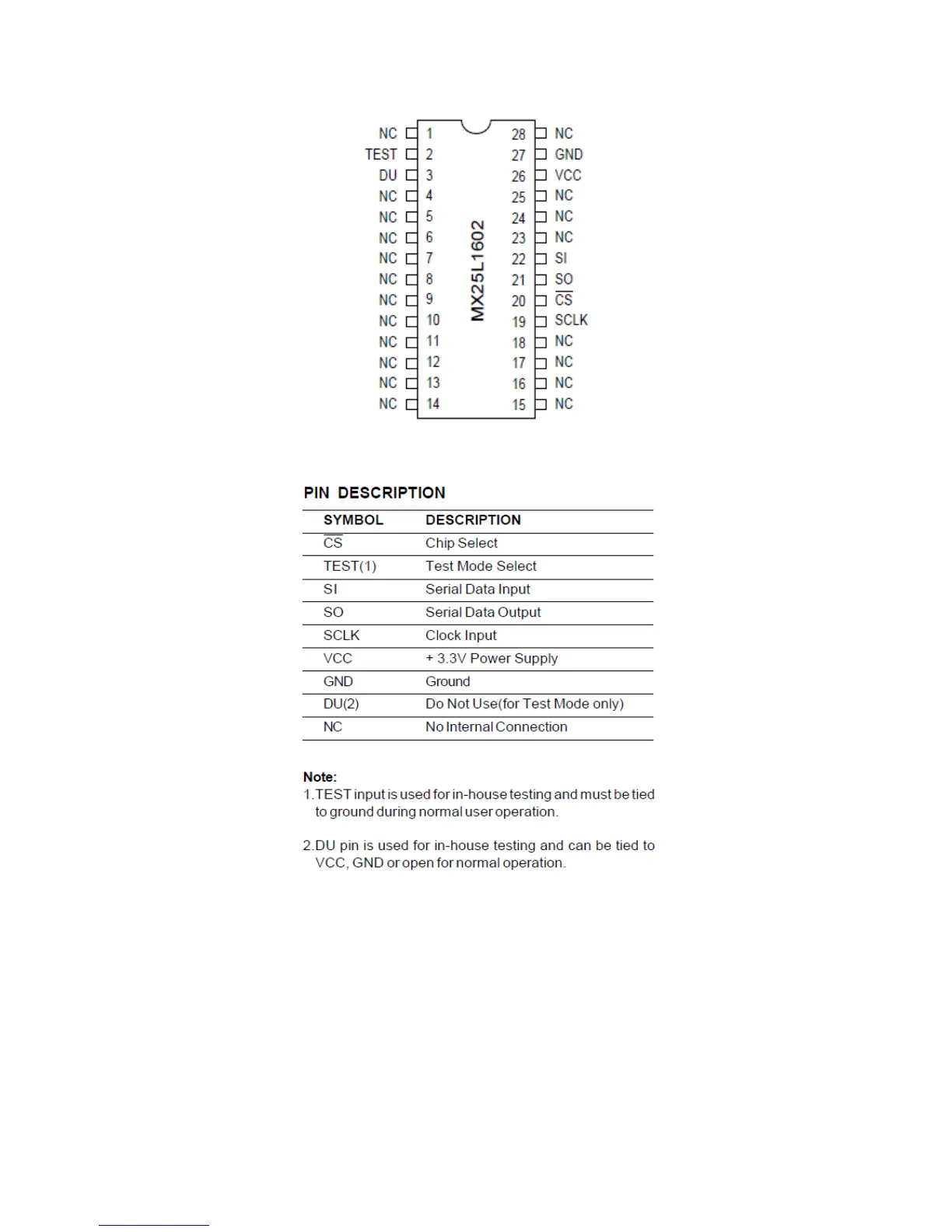

Figure: Pin configuration.
Table 16: Pin description
10. USB Interface
Mstar IC has two input port for USB, therefore air mause, internal wi-fi interface and
USB2 are combined with HUB. This property is optional. If air mause and wi-fi interfaces are
not alined, two USB are connected directly to main IC.
