• Fast Transient Response
• Adjustable Output Voltage
• Power-On-Reset Monitoring on Both VCNTL and VIN Pins
• Internal Soft-Start
• Current-Limit and ShortCurrent-Limit Protections
• Thermal Shutdown with Hysteresis
• Open-Drain VOUT Voltage Indicator (POK)
• Low Shutdown Quiescent Current (< 30mA )
• Shutdown/Enable Control Function
• Simple SOP-8P Package with Exposed Pad
• Lead Free and Green Devices Available (RoHS Compliant)
APPLICATIONS
• Motherboards, VGA Cards
• Notebook PCs
• Add-in Cards

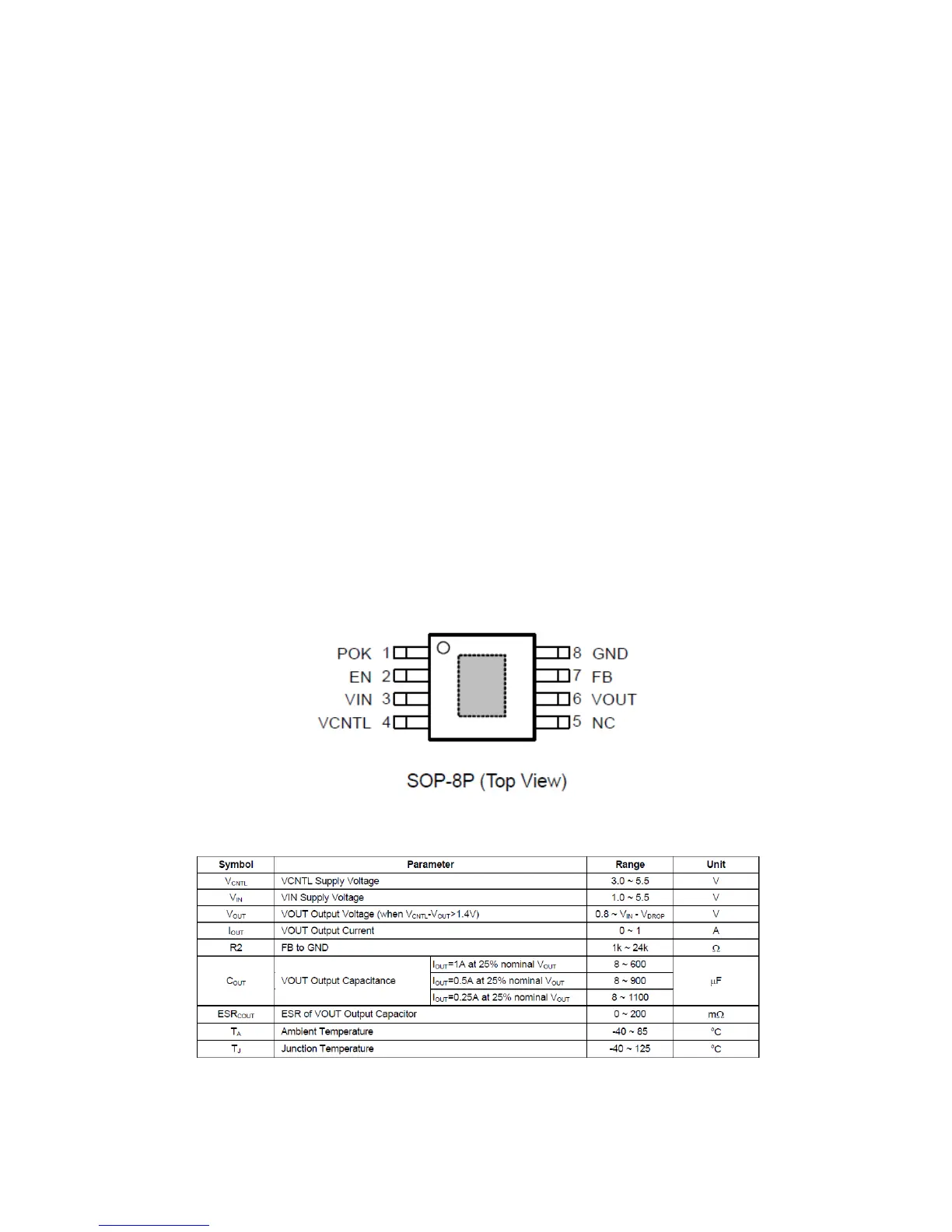

Figure 9: Pin configuration
Table 8: Recommended operating conditions
