ESPEC SU 242 - Installation space and heat exhaust

Installation guide Bench-top type temperature(humidity) chamber
ESPEC CORP.
7

Installation space

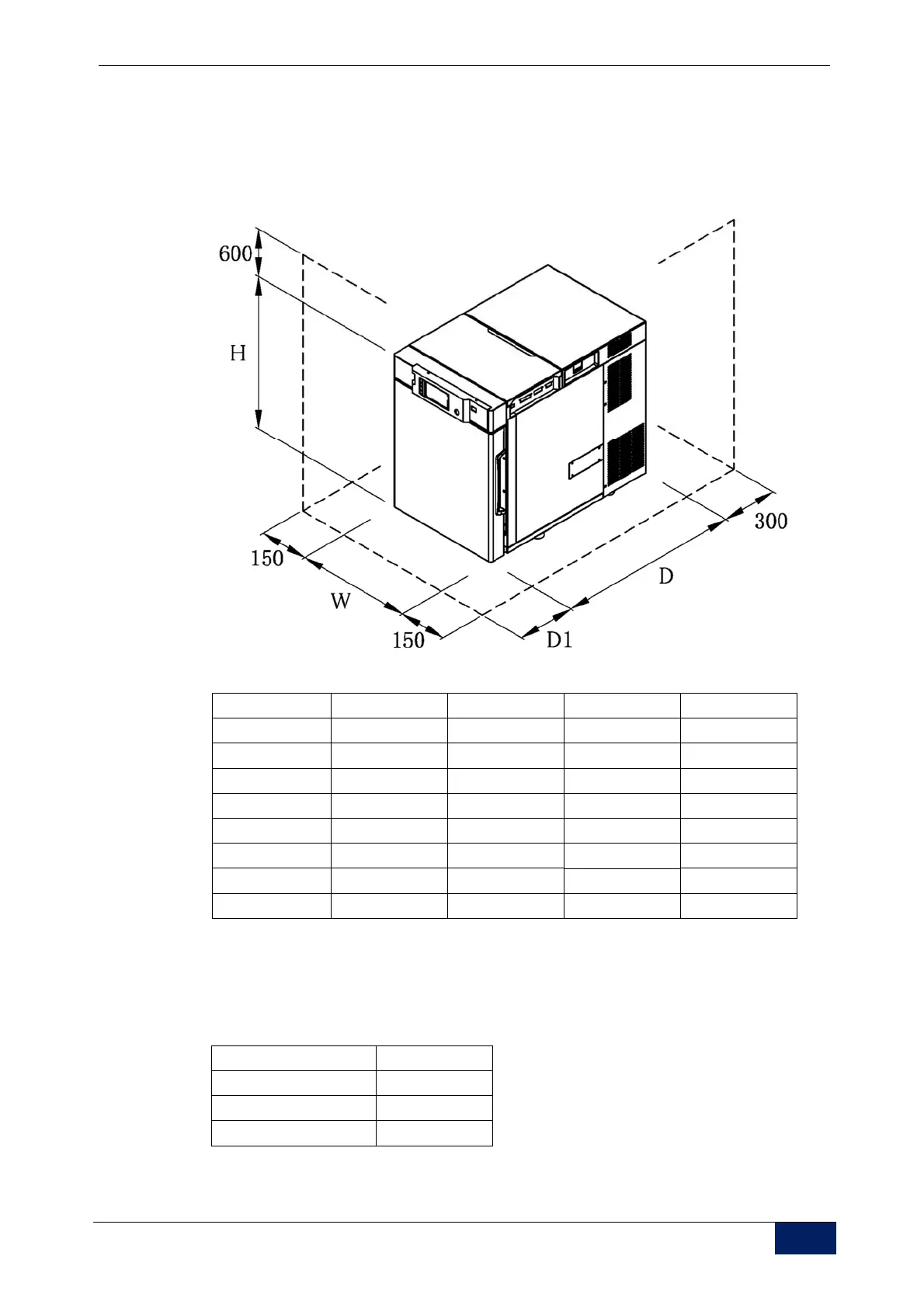

The space shown below is necessary for taking in and taking out of the specimen,
maintenance and ventilation.
W H D D1
SH-222,242 440 690 747 440
SU-222,242 440 625 747 440
SH-262 440 690 834 440
SU-262 440 625 834 440
SH-642,662 540 730 943 540
SU-642,662 540 665 943 540
SH-242-5 440 690 834 440
SU-242-5 440 625 834 440
Including protrusions（mm）
Heat exhaust from chamber
The maximum heat load generated from the chamber is as follows.
(Ambient temperature:+23C)
SH/SU-222,242 3500
SH/SU-262 4200
SH/SU-642,662 5040
SH/SU-242-5 5700
（
kJ/h
）
