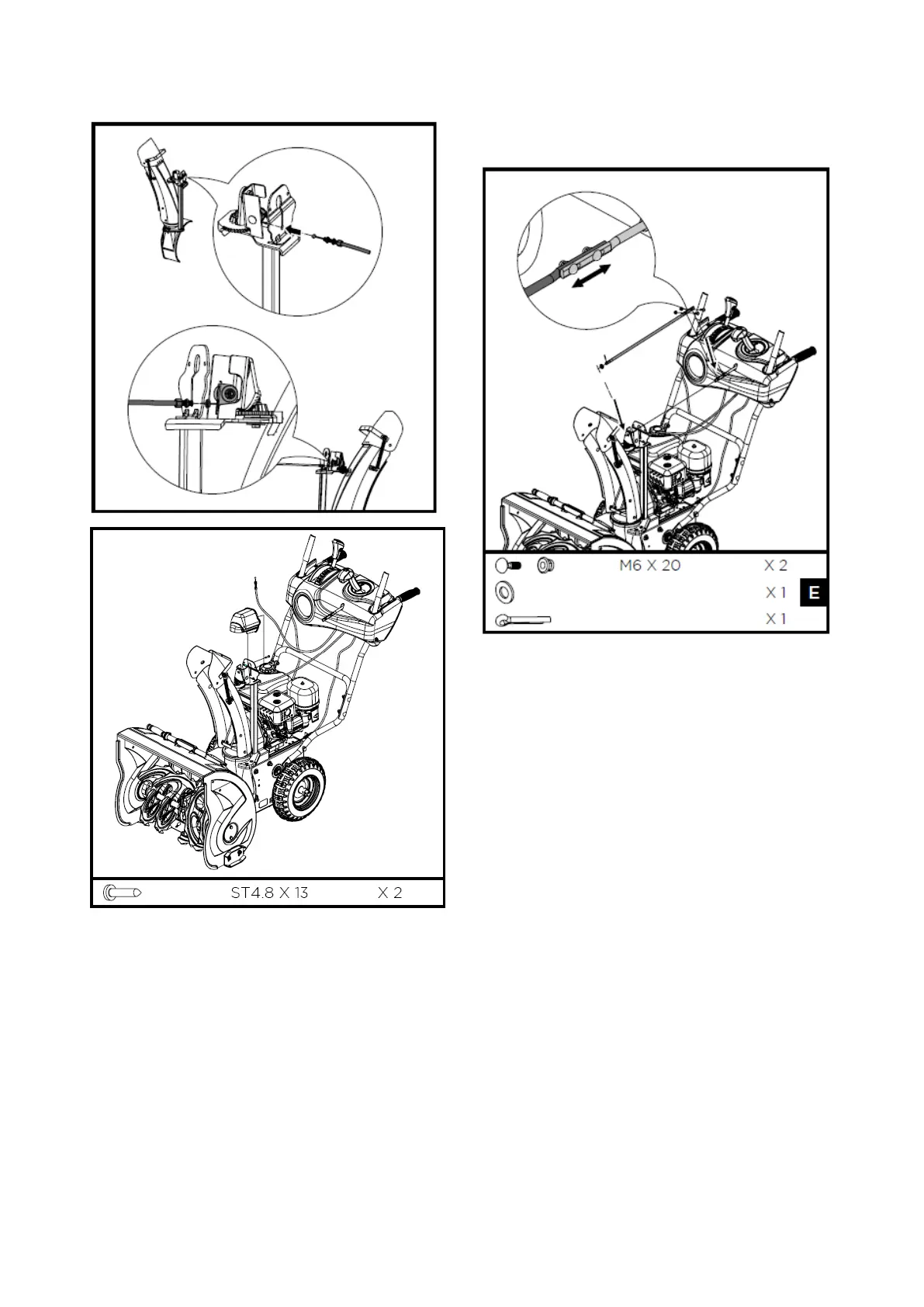

7. Connect the chute lock cable to the lock latch
by fitting the cable ball end into the slot on the
lock latch and then insert the chute lock cable
fitting into the bracket on the chute pedestal.
8. Adjust and tighten jam nuts on cable fitting to
remove cable slack. Be sure not to pretension
lock latch so it retracts from the gear teeth.
9. Release the lock latch on the gear assembly
and turn the discharge chute straight ahead.
10. To ensure the discharge chute and chute
deflector follow their full range of travels,
make sure the joystick is in the center
position.
11. Slide chute rod without a pin through the
pedestal bracket and into hex hole in gear
assembly.
12. Secure the chute rod to the gear assembly
with a cotter pin and a washer.
13. Align the flattened back end of the long chute
rod with the flattened front end of the short
rod that extends from the control panel so that
they nest together.
14. Align the holes in the nested ends of the rods
and insert two M6X20 carriage bolts with
locknuts.
