achieved.

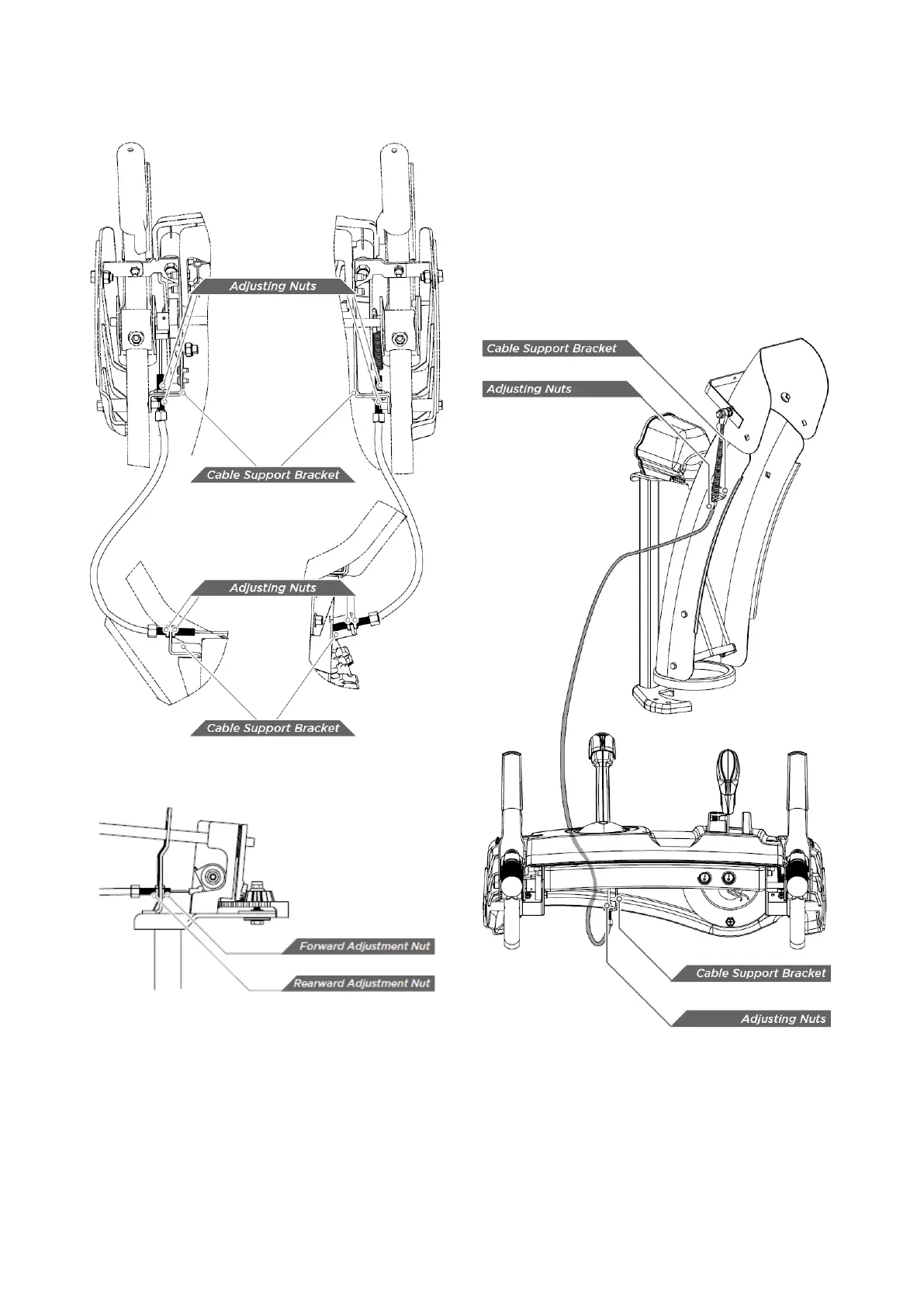

Chute Lock Latch
If the discharge chute does not lock into the
desired position or does not unlock so that chute
rotates freely, adjust the chute lock latch.
If the chute does not lock:
Loosen the cable by loosening the rearward
adjustment nut, and tightening the forward
adjustment nut against the bracket until the lock
latch fully engages the gear teeth.
If the chute does not unlock:
Tighten the cable by loosening the forward
adjustment nut, and then tightening the rear
adjustment nut against the bracket until all cable
slack is removed.
Deflector Control
If deflector does not follow full range of travel,
adjust the control cable at either end of it
1. Hold the trigger cap down and push joystick
all the way forward. Release the trigger cap.
2. Loosen adjusting nuts on either cable support
bracket underneath the control panel or on
