Skid Shoes

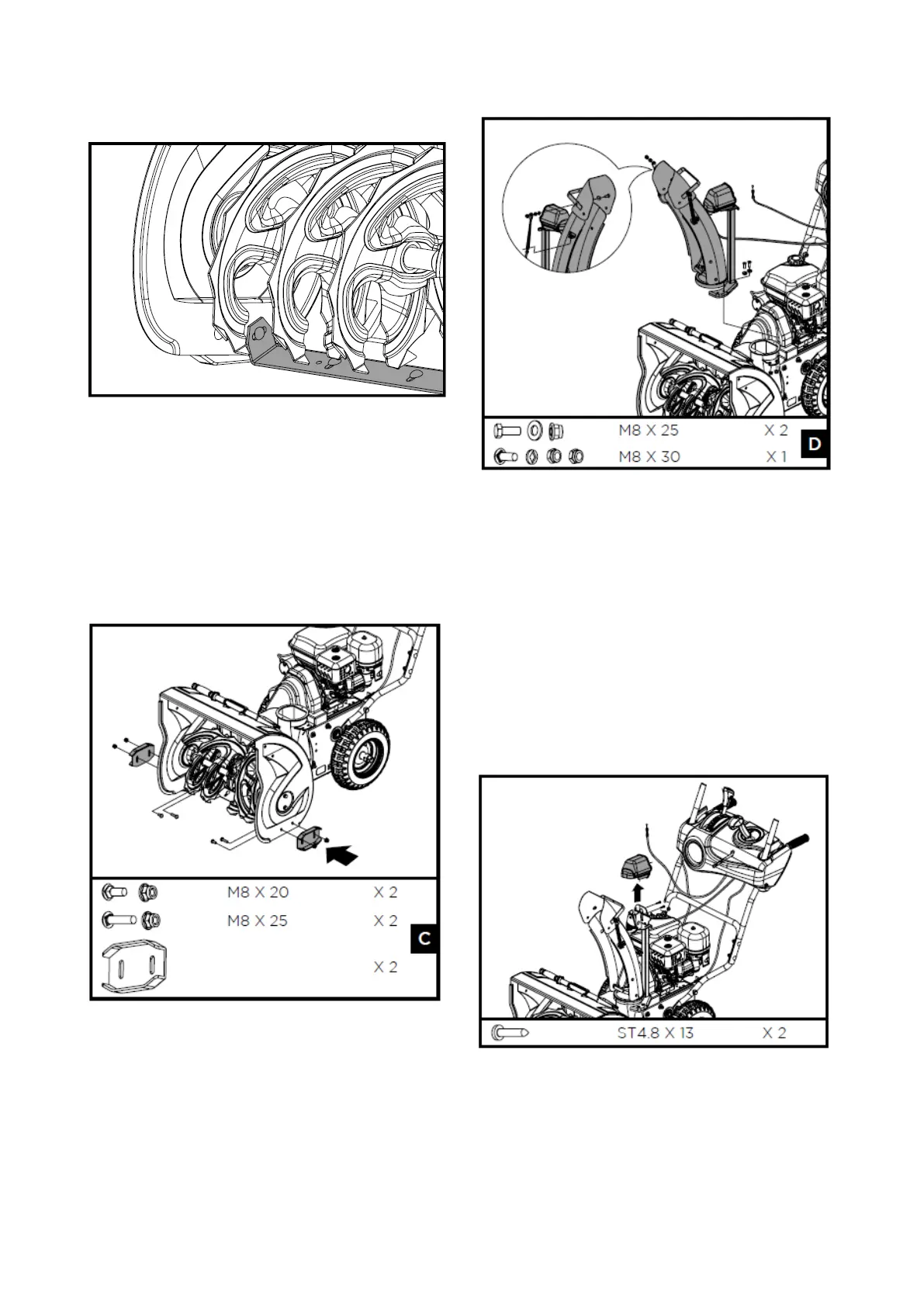

1. Move the machine to a level surface.
2. Support the auger blades so that they are
3mm (1/8”) off the ground.
3. Check the scraper blade adjustment. The
scraper should be 3mm (1/8”) above and
parallel to a level ground. To adjust the
scraper blade, loosen the seven mounting
screws (two on each side), level the scraper
blade, and tighten the mounting screws.
4. Attach both skid shoes to the auger side
plates with the screws and nuts. Move the
skid shoes down as far as possible. Be sure
both skid shoes are adjusted evenly. Tighten
securely.
Discharge Chute
1. Grease underside of discharge chute ring (if
not already greased).
2. Install discharge chute over opening in the
auger housing. Orient the chute and pedestal
to its most vertical position and tighten
pedestal hardware.
3. Connect the deflector control cable eyelet to
the chute deflector as shown. Tighten
securely. Eyelet will be loose on shoulder bolt.
4. Insert the cable fitting into the cable bracket
on discharge chute.
5. Adjust and tighten jam nut.
6. Remove the gear cover by removing the two
ST4.8X13 self-tapping screws.
