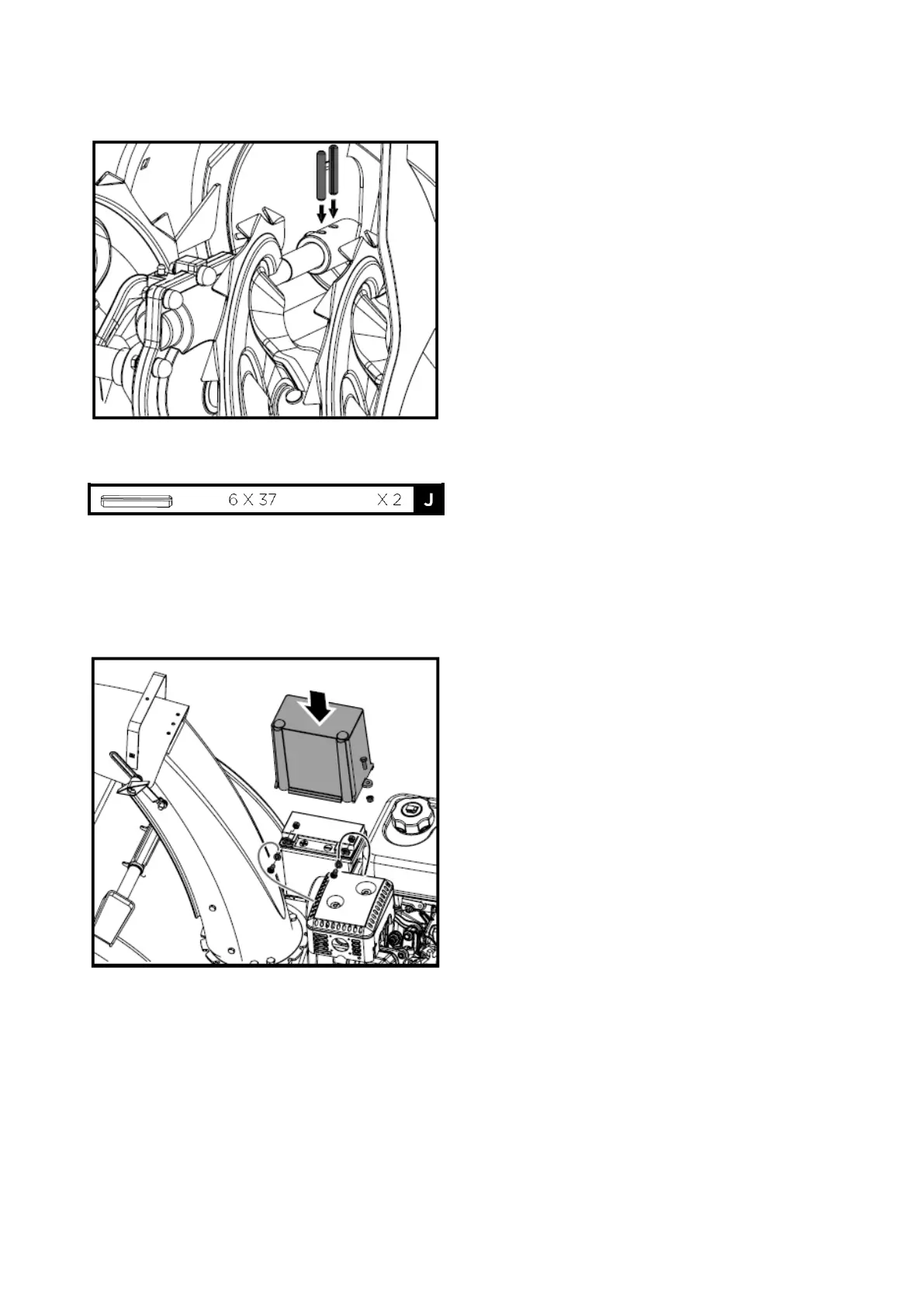

Spare Roll Pins
The impeller is secured to the impeller shaft with
roll pins.
Two 6x37 roll pins for impeller are supplied as
spare in the hardware bag. Store them in a safe
place until needed.
Battery (if so equipped)
1. Remove the battery cover by loosening the
screw and nut.
2. Connect positive (red) battery cable to the
battery terminal first, then negative (black)
battery cable. Check that all cable connectors
are tight.
3. Install battery cover and tighten the screw and
nut.
