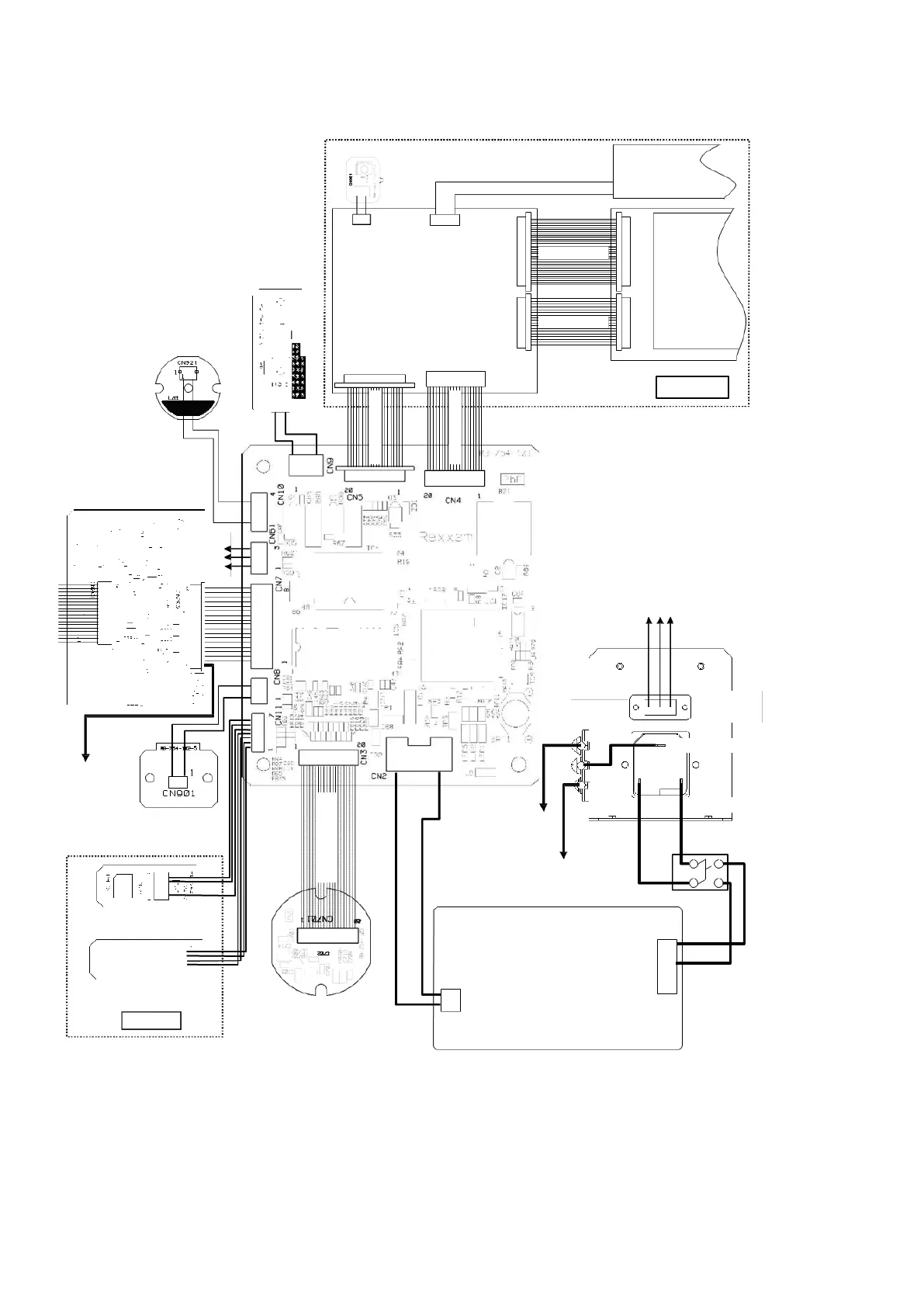

3. Wiring diagram
Pilot LED board assy.
CN508
2 1
4 1
CN507
Flat cable
Flat cable
Flat cable
Touch panel
LCD
LCD assy.
18
1
1
33
CN2
CN1
1
33
CN501
18
1
CN505
LCD replay board assy.
20 1
CN503
20 1
CN504
Flat cable
Flat cable
Red
Brown
Measurement light board assy.
UV light board assy.
To printer
Control board assy. (only for ALM700
Flat cable
Red
Brown
1 4
PD assy.
PD sensor board assy.
PD position sensor board
Memory switch
board assy.
CMOS camera board
To terminal unit FG
(green/yellow)
Printer control
board assy.
To RS-232C
1/ 2/ 3
Brown / Red / Orange
Switching power supply
Power supply switch
To CN6
Power supply inlet
Brown (L)
2 / 3 / 5
Brown / Red / Orange
FG (green/ yellow)
Light blue (N)
To printer FG CN203 (green/yellow)
To main unit assy.
FG (green/yellow)
RS-232C
Terminal unit assy.
3
1
Brown (L)
Light blue (N)
