EST APC-TF Series User Manual

Copyright 2003-2013 CSM CO.,LTD
- 11 -

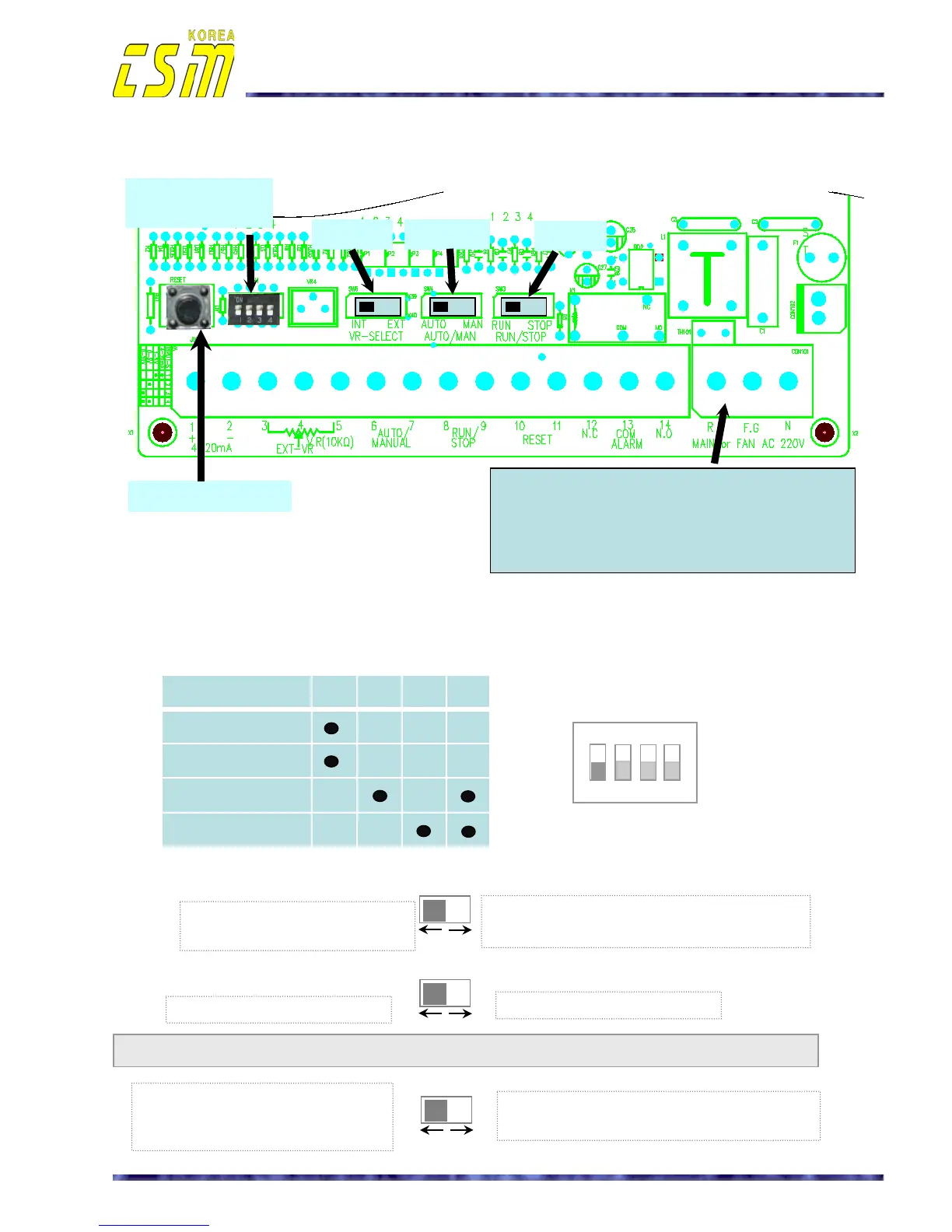

APC-TF Series Mode select on the PCB
SW3 SW4
SW5
controll power terminal block
The fan or power supply of 220V AC
must be connected.
3PIN center terminals are F.G terminals.
Signal SELECT
SWITCH
RESET SWITCH
• Place of mode select switch on the PCB
▷
RESET SWITCH
:
System restart and errors, alarm relay output reset
▷
Signal SELECT SWITCH
:
Input signal select (Confirm a input signal surely and set)
▷ SW3 :
Potentio meter select
Internal potentio meter (10KΩ)
select
External potentio meter (10KΩ) select
REMOTE CONTROL
▷ SW4 :
Operation mode select
Automatic operation select
Manual operation select
▷ SW5 :
RUN / STOP

Use when the liver diagnoses or power controller test !!!
Test running (RUN)
The control is impossible to an
external of contact.
STOP
When Normal operation mode
ON
1 2 3 4
Input Signal 1
2
3
4
4~20mA
1~5V
0~5V
0~10V
