- 8 -

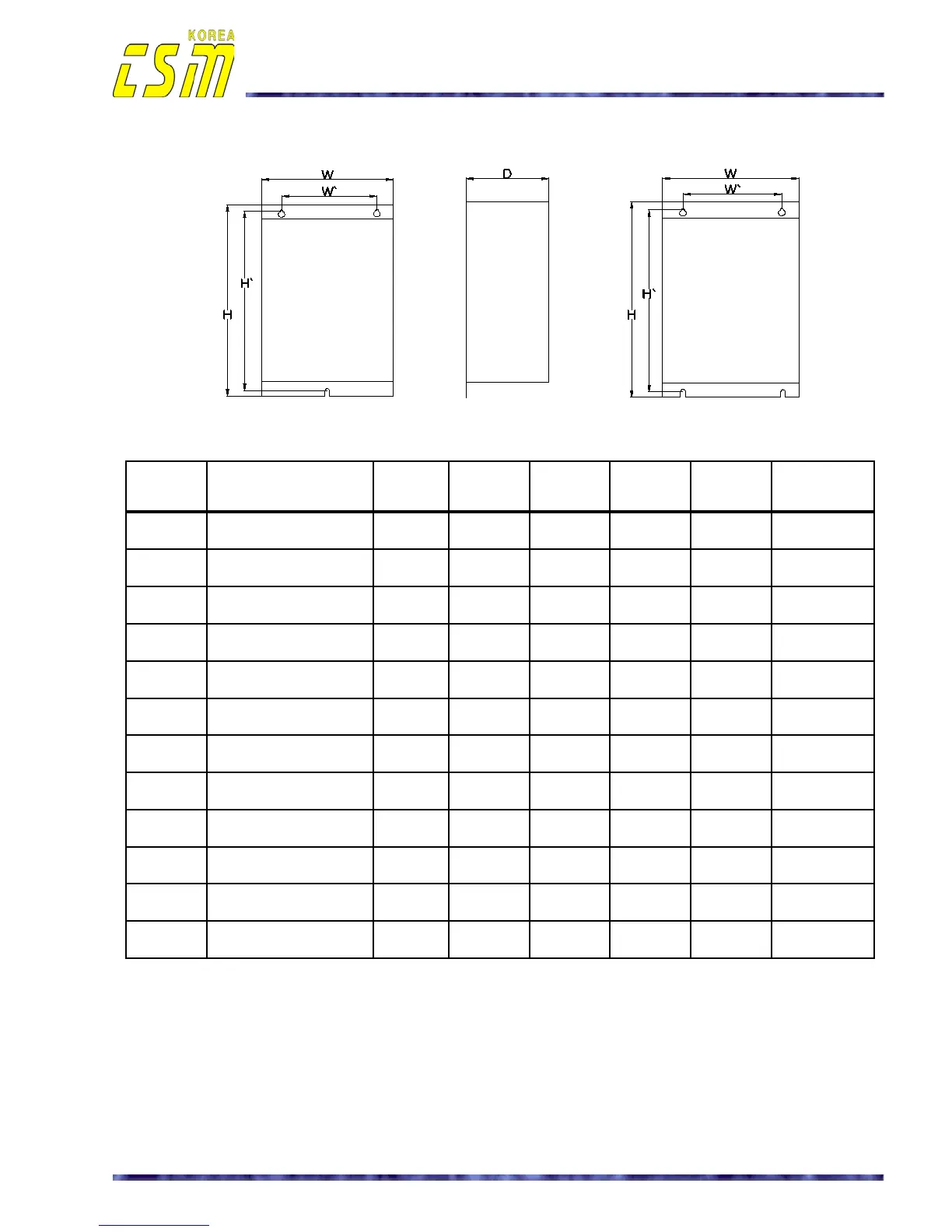

APC-TF Series DIMENSIONAL DETAILS

Single phase

40~90A

Single phase

110~500A and

Three phase

All models

*** More than nominal current 600A at order specification.

*** Dimensions of the upper product could be changed without notification for improving functions.

Model Nominal Current (A) H H` W W` D Mount

SN 25 106 96 75 62 70 M4

SN 40,55 180 170 65 56 126 M4

SF 40,55,70,90 195 181 133 114 148 M5

SF 110,130,160 271 258 123 83 185 M5

SF 200,250,300 300 286 173 130 220 M5

SF 400,500 395 381 173 130 230 M5

TF 30,40,55,70 252 238 173 130 170 M5

TF 90,110 300 286 173 130 220 M5

TF 130,160 395 381 173 130 230 M5

TF 200 415 397 262 200 243 M6

TF 250,300 456 440 262 200 243 M6

TF 400,500 510 485

310 200 260 M6
