EST APC-TF Series User Manual

Copyright 2003-2013 CSM CO.,LTD
- 12 -
APC-TF Series

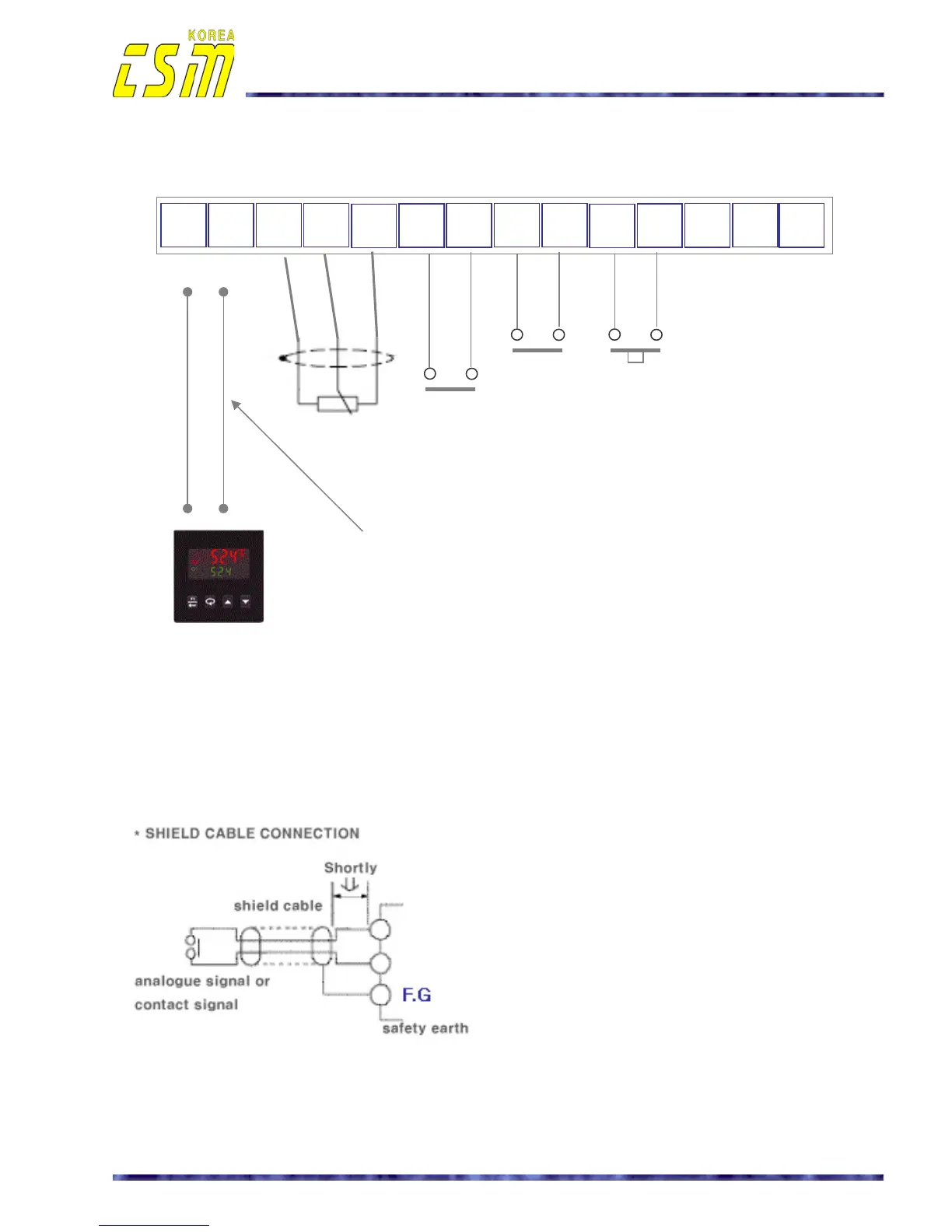

users terminal block wiring diagrams
①
②
③
④
⑤
⑥
⑦ ⑧
⑨
⑩
⑪
⑫ ⑬ ⑭
＋ －
N.C COM N.O
4 – 20mA Potentio meter AUTO/MANUAL RUN/STOP Reset Alarm relay
TIC : Temperature indicate and controller
+ -
External
potentiometer : 10KΩ
OPEN : Automatic mode
CLOSE : manual mode
OPEN : Stop
CLOSE : Running
Push button switch
* Control cables ;
Use shielded cable necessarily for the protect of a electric noise mixing. wire shortly and
to avoid the conduit such as different power line or parallel wiring.
For safety reasons, the safety earthing cable must be connected before any other connection is made
during wiring and it should be the last cable to be disconnected.
The safety earth is connected to the screw located on the terminal block of the PCB.:
[NOTE] Use shielded cable necessarily for the protect
of a electric noise mixing and only one side shield line
connection to the field ground point.
*
Signal, control cables :
Use the shield cable (CVVSB: more then 0.75mm
2
)
[NOTE]
CVVSB : PVC INSULATED, COPPER WIRE BRAID SHIELD AND
PVC SHEATHED CONTROL CABLE
