E10 Operation Manual V1.15
Chapter 6 Machine Parameters

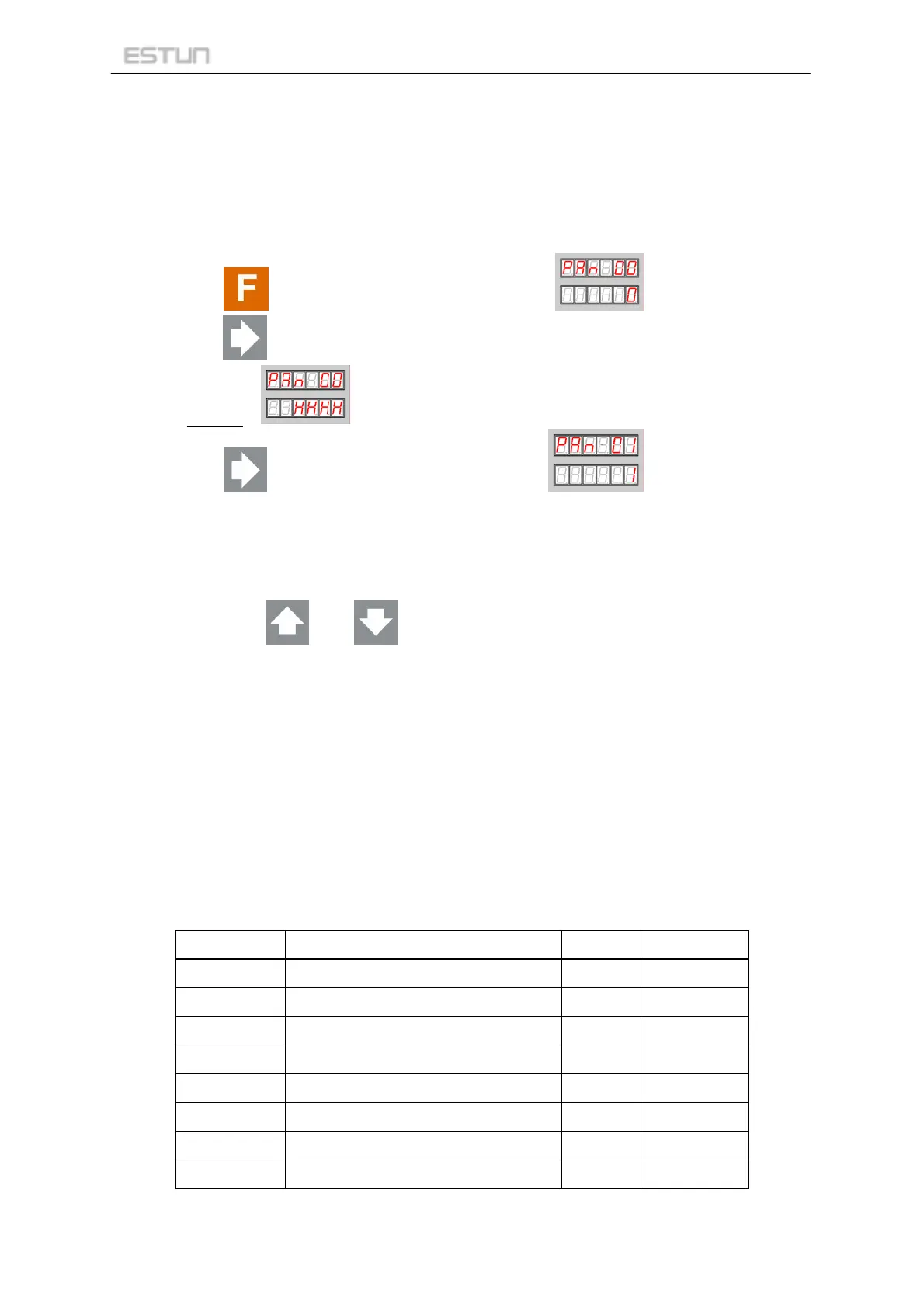

6.1 Set machine parameters
1、Press to enter machine parameter interface. ；
2、Press
to confirm the edit parameter ‘PAN－00’, then input pin number
‘
’ ；
3、Press to confirm, and the interface shows ；
4、The first line of digital display shows the parameter num and the second line shows
the value of the parameter. Only the value of flashing digit can be edited.
Notice：
1. By pressing and on the sixth digit ,you can select the value as positive
or negative when editing a parameter.
2.
Every parameter has its range. If the preset value exceeds the range, then the parameter
will be the min limits as its value.
3.the range of press-braking machine is“0—75”，and the value will be set as ‘1’ if the
preset value exceeds the range.
4. the range of shearing machine is “0—47”，and the value will be set as ‘1’ if the preset
value exceeds the range.
6.2 Parameters description
Press-braking machine parameters:
Parameter No. Parameter names Default User’s setting
PAN01 Decimal point position on X-axis 1
PAN02 Decimal point position on Y-axis 2
PAN03 Multiple factor of X-axis 4
PAN04 Multiple factor of Y-axis 4
PAN05 Dividing factor of X-axis 1
PAN06 Dividing factor of Y-axis 1
PAN07 Screw gap of X-axis 0
PAN08 Screw gap of Y-axis 0
Page 17 of 28
